30.6.10 BOD Threshold

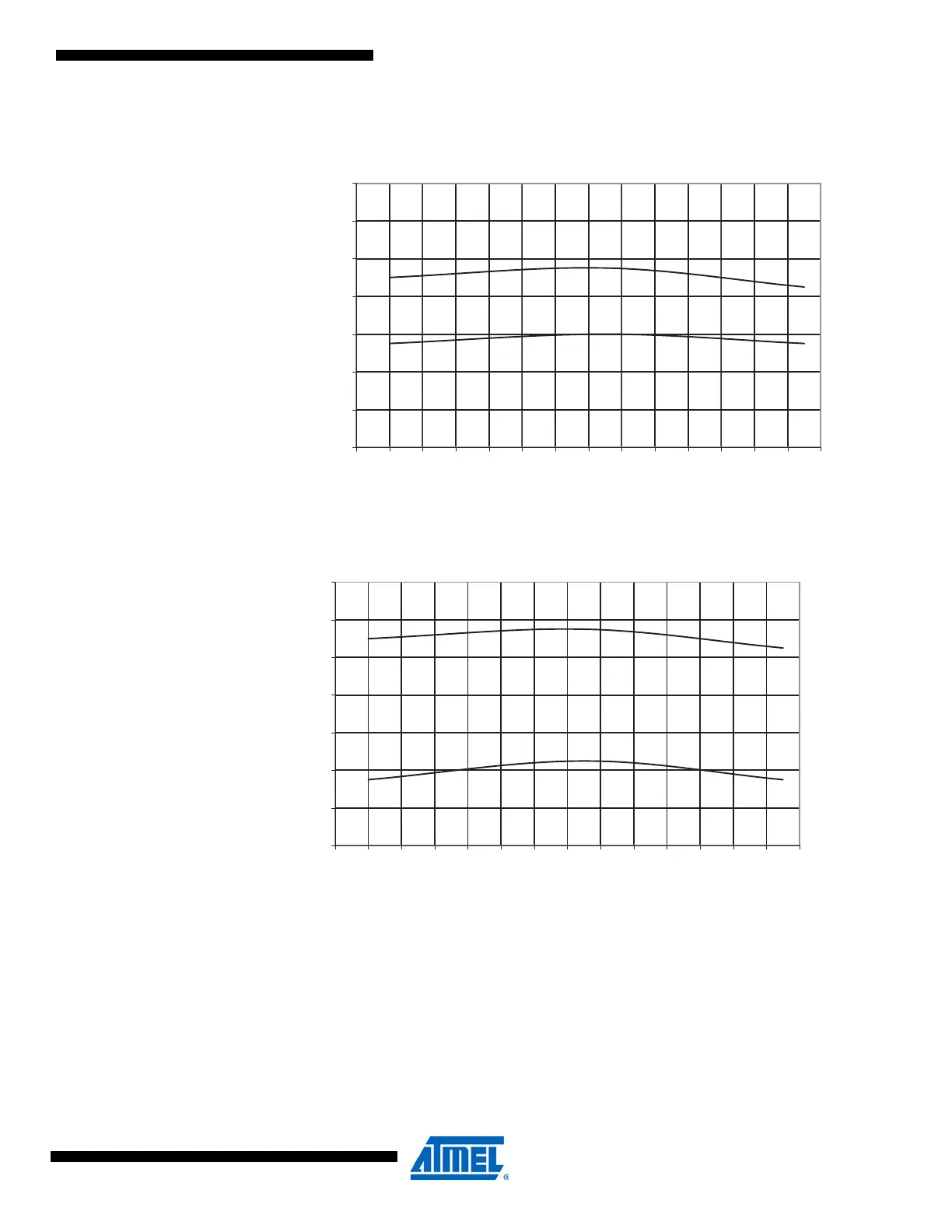

Figure 30-266.ATmega168PA: BOD Thresholds vs. Temperature (BODLEVEL is 1.8 V)
Figure 30-267.ATmega168PA: BOD Thresholds vs. Temperature (BODLEVEL is 2.7 V)
Rising Vcc
Falling Vcc
1.72
1.74
1.76
1.78
1.8
1.82
1.84
1.86
-50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 8090
Temperature (°C)
Threshold (V)
Rising Vcc
Falling Vcc
2.62
2.64
2.66
2.68
2.7
2.72
2.74
2.76
-50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 8090
Temperature (
° C)
Threshold (V)
