30.8.10 BOD Threshold

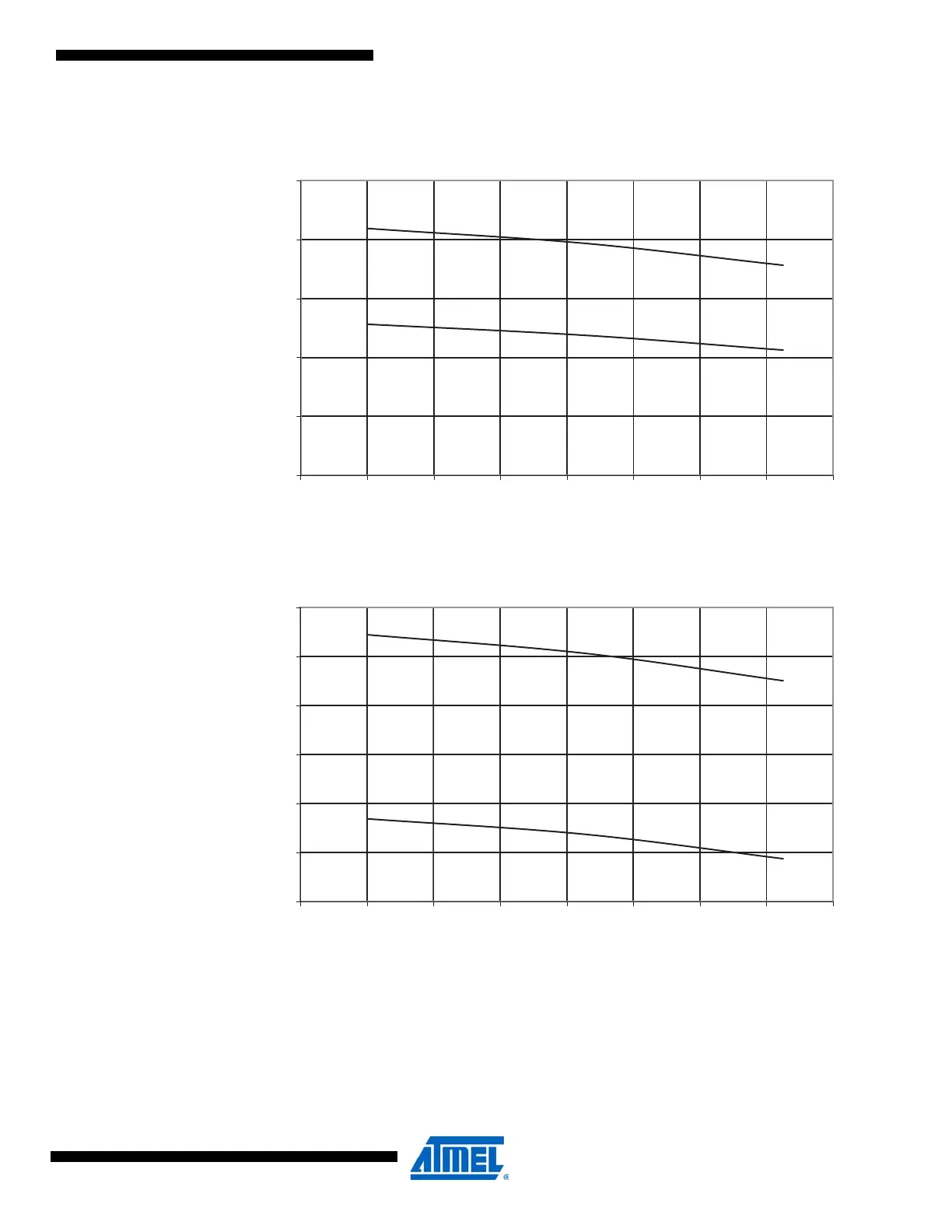

Figure 30-360.ATmega328P: BOD Thresholds vs. Temperature (BODLEVEL is 1.8 V)
Figure 30-361.ATmega328P: BOD Thresholds vs. Temperature (BODLEVEL is 2.7 V)
1
0
1.75
1.77
1.79
1.81
1.83
1.85
-60 -40 -20 0 20 40 60 80 100
Temperature (°C)
Threshold (V)
1
0
2.66
2.68
2.7
2.72
2.74
2.76
2.78
-60 -40 -20 0 20 40 60 80100
Temperature (°C)
Threshold (V)
