ATtiny10/11/12
18
Power-on Reset for the ATtiny10/11
A Power-on Reset (POR) circuit ensures that the device is reset from power-on. As shown in Figure 16, an internal timer is
clocked from the watchdog timer. This timer prevents the MCU from starting a certain period after V
CC
has reached the
Power-on Threshold Voltage – V
POT
. See Figure 18. The total reset period is the Delay Time-out period – t
TOUT
. The FSTRT
fuse bit in the Flash can be programmed to give a shorter start-up time.The start-up times for the different clock options are
shown in the following table. The Watchdog Oscillator is used for timing the start-up time, and this oscillator is voltage
dependent as shown in the section “ATtiny11 Typical Characteristics” on page 54.
If the built-in start-up delay is sufficient, RESET
can be connected to V
CC
directly or via an external pull-up resistor. By hold-
ing the RESET
pin low for a period after V
CC
has been applied, the Power-on Reset period can be extended. Refer to
Figure 19 for a timing example on this.

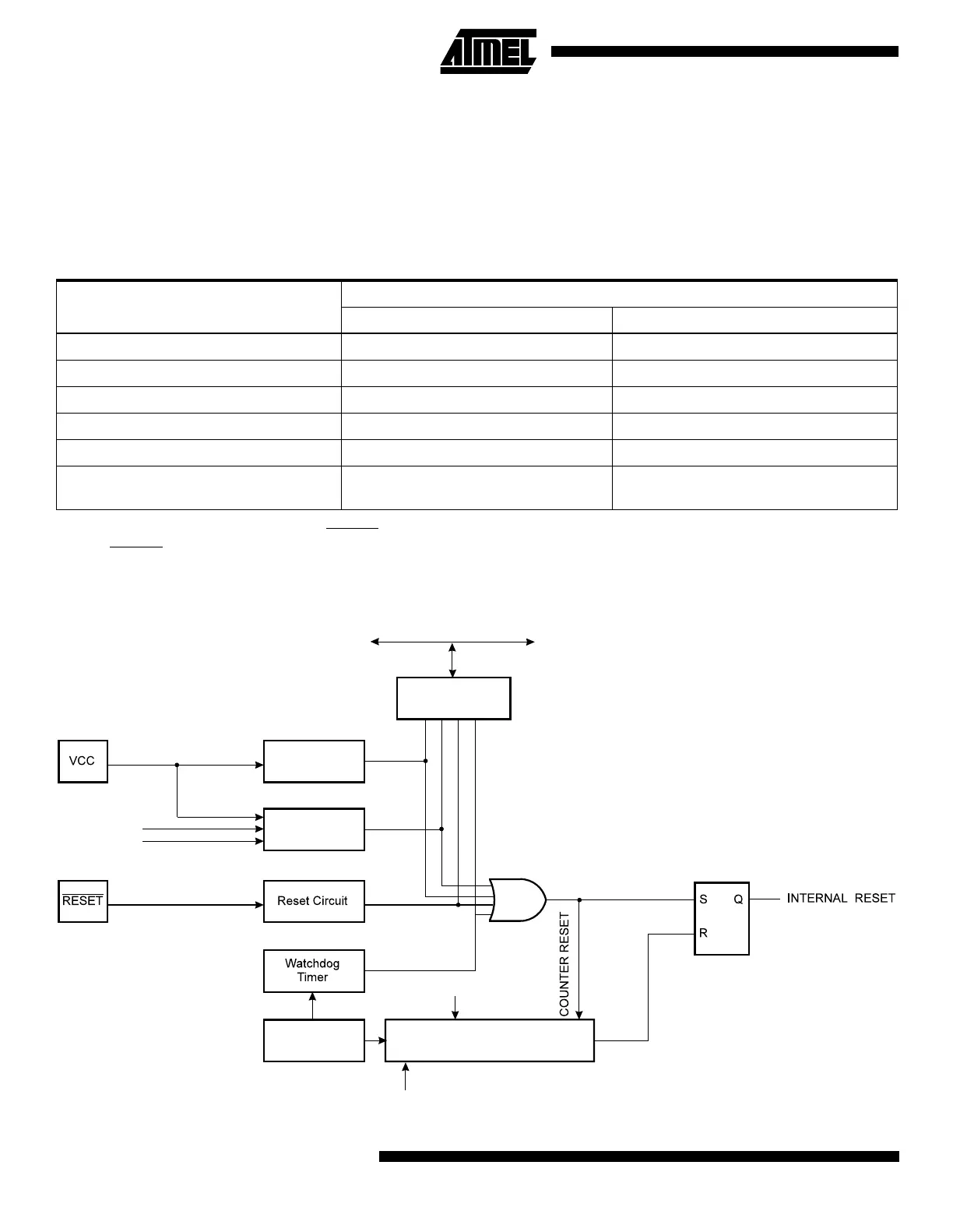

Figure 17. Reset Logic for the ATtiny12
Table 7. Start-up Times for the ATtiny10/11 (V
CC
= 2.7V)
Selected Clock Option
Start-up Time t
TOUT
FSTRT Unprogrammed FSTRT Programmed
External Crystal 67 ms 4.2 ms
External Ceramic Resonator 67 ms 4.2 ms
External Low-frequency Crystal 4.2 s 4.2 s
External RC Oscillator 4.2 ms 67 µs
Internal RC Oscillator 4.2 ms 67 µs
External Clock 4.2 ms
5 clocks from reset,
2 clocks from power-down
MCU Status
Register (MCUSR)
Brown-out
Reset Circuit
BODEN
BODLEVEL
Delay Counters
CKSEL[3:0]
CK
Full
WDRF
BORF
EXTRF
PORF
DATA BUS
Power-on Reset
Circuit
On-chip
RC Oscillator
