Atmel SAME70-XPLD User Manual

It offers a set of features that enables the ATSAME70Q21 user to get started with the SAM V71, SAM
V70, SAM E70 and SAM S70 peripherals right away and to get an understanding of how to integrate the
device in their own design.
The SAME70-XPLD board is equipped with the interface connectors described in Table 1-3.
Table 1-3 SAME70-XPLD Board Interface Connectors
Header Interfaces to
J302 USB A device. Supports USB device using a Micro-AB connector
J400 Camera Interface Connector (not populated)
J401-J402 Atmel XPRO expansion connectors
J403 Connector for Trace (not populated) (Footprint available on bottom side)
J406 JTAG, 20-pin connector
J500–J507 Expansion connectors with Arduino R3 compatible PIO signals (not populated)
J600 SD/MMC connector (available on bottom side)
J700 Ethernet ETH1
J900 Debug USB interface. Supports USB device using a Micro-AB connector. Interface used for
target debug

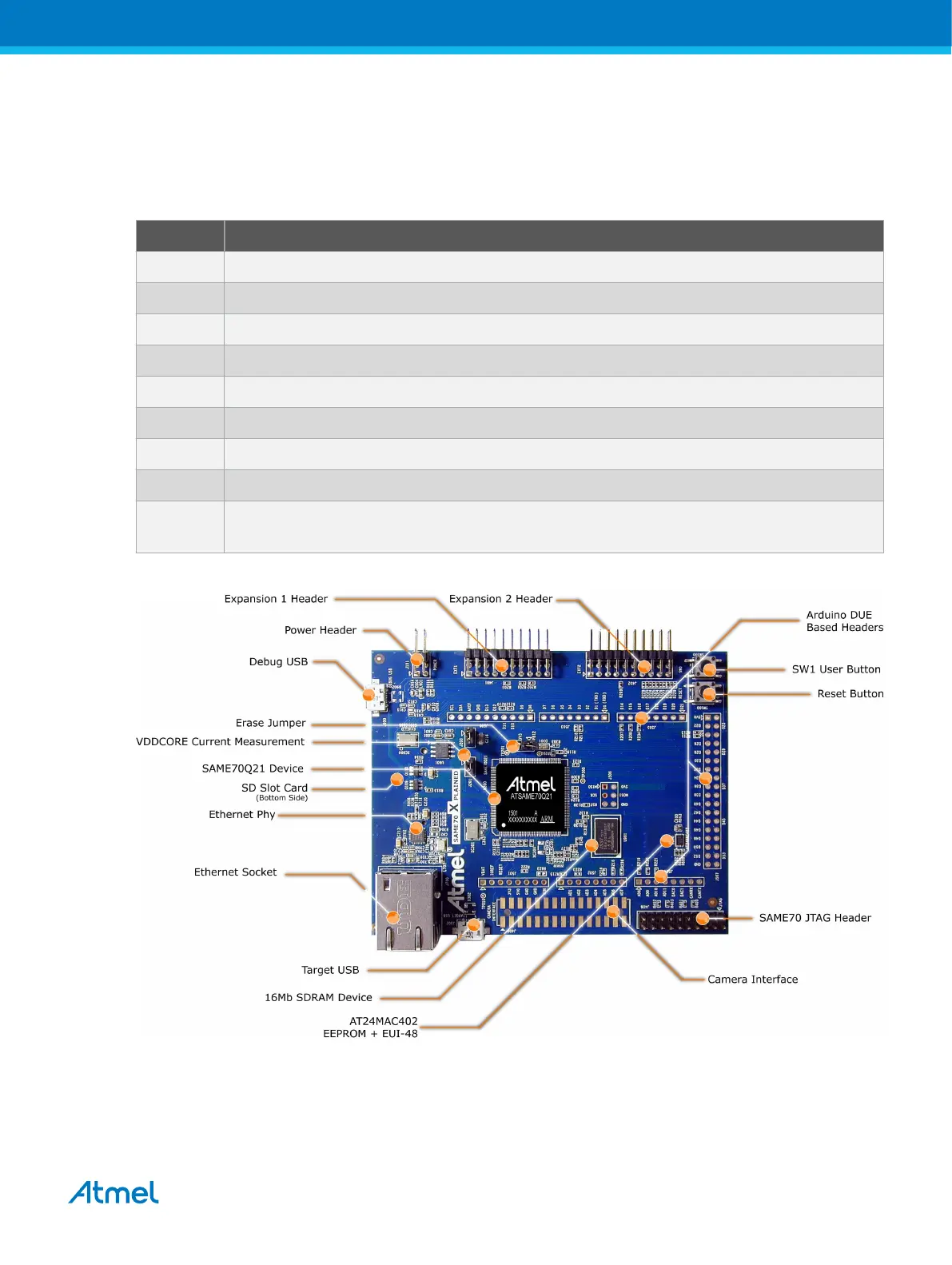

Figure 1-2 SAME70-XPLD Board Overview
Atmel SAME70-XPLD [USER GUIDE]
Atmel-44050A-SAME70-XPLD_User Guide-12/2015
5
