3-5
TELESCOPE

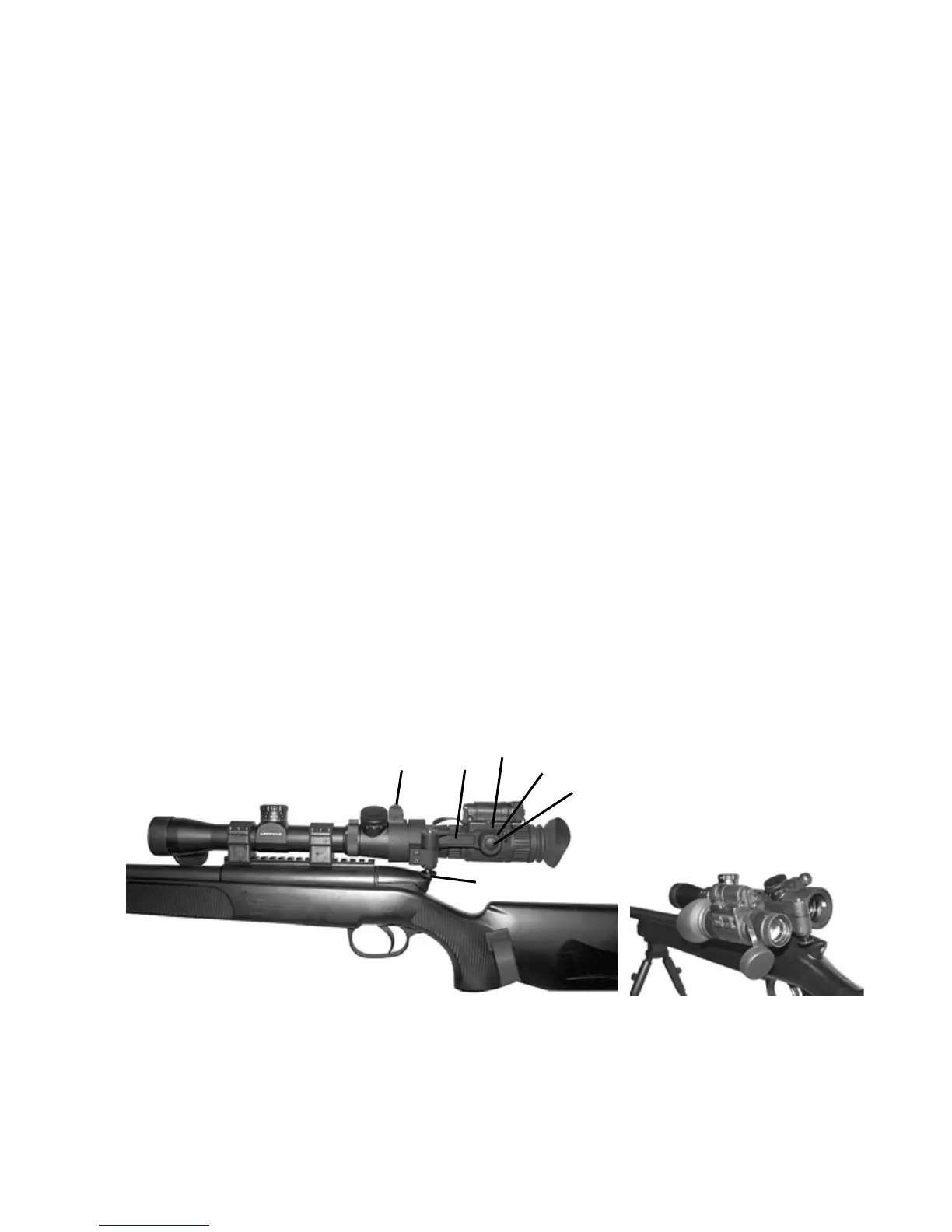

The NVM-14 may be mounted to a variety of daytime scopes/tele-
scopes utilizing the Flip-up Scope Adapter Mount.
1. Loosen the adapter fixing screws (A).
2. Put the insert into the adapter (ATN supplies inserts of diffe-
rent sizes for their coupling with 38 mm to 43 mm eyepieces).
3. Now at tach the monocular to the bracket (B) . You can push the
monocular rail into the bracket guide (C) and then take it of f the
bracket only when you loosen the fixation knob (D) holding the
-
ened you secure the monocular on the bracket.
4. Push a daytime riflescope or telescope eyepiece into the
adapter attached to the monocular, making sure a small space
is left between the scope eyepiece and the monocular front
lens.
5. Tighten the adapter screw (A) securely.
6. By pressing button (F) on the adapter you can raise the mon-
ocular 180 degrees upward in order to work with the daytime
scope only.
BA
C
D
E
F
