3-9

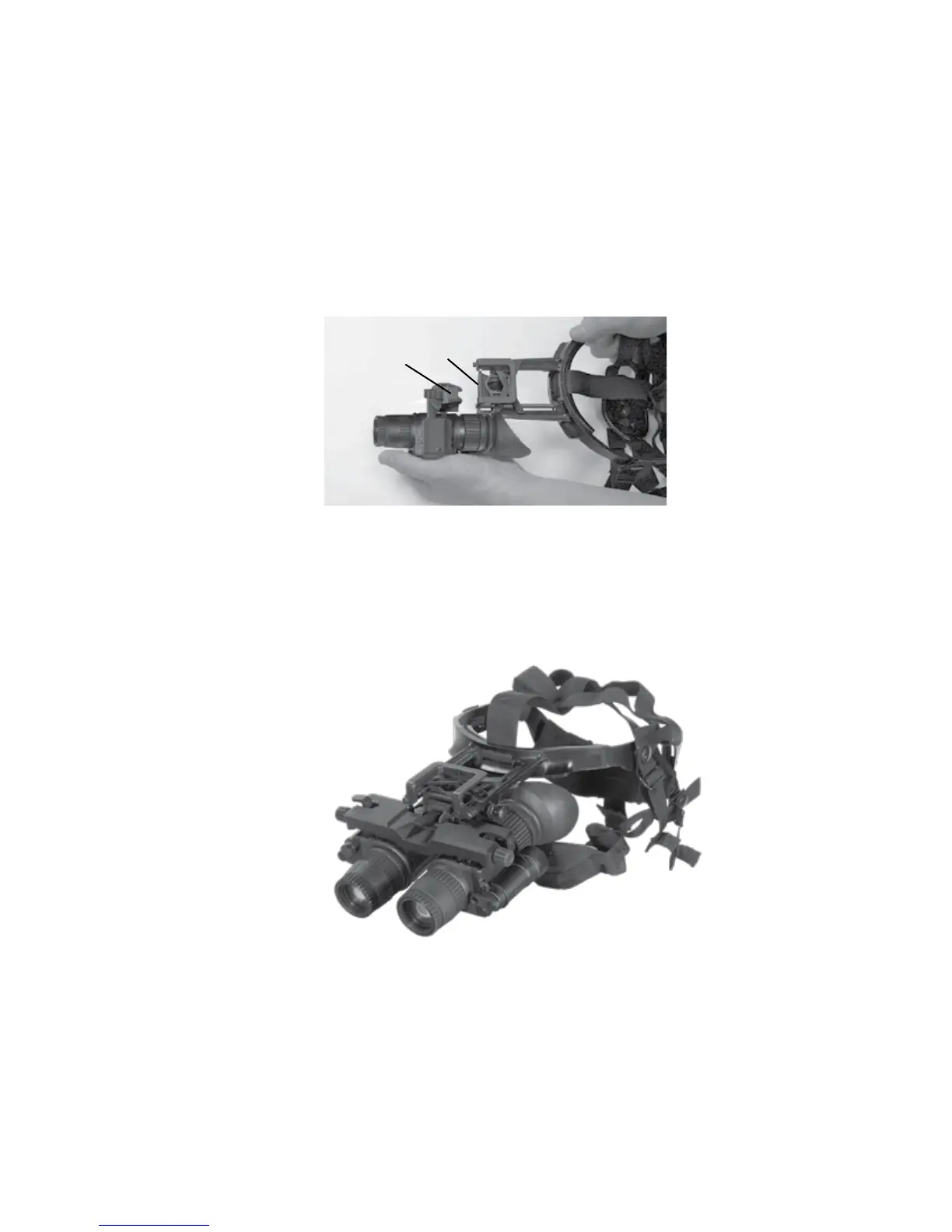

2 . A l i g n t h e a d a p t e r a n d t h e h e a d / h e l m e t m o u n t . S l i d e t h e m o n o c u -
lar rearwards until the alignment boss (Figure 3.10, A) aligns with
the alignment groove (B) on the head /helmet mount. Push un-
til the monocular locks into the head /helmet mount.
-
ther right or left eye. To change the viewing eye, loosen the nut
(Figure 3.9, E) and rotate the socket (D) 180 degrees. Tighten
the nut (E) anew.
4. Dual Bridge Adapter for Mil-Spec headmount allows using
the NVM14 as a pair of dual tube goggles with Mil-Spec head-
mount, MICH or PAGST helmet mount.
The 3x lens is an afocal lens and screws into the existing lens.
A
B
