Menu Engine/Drive:

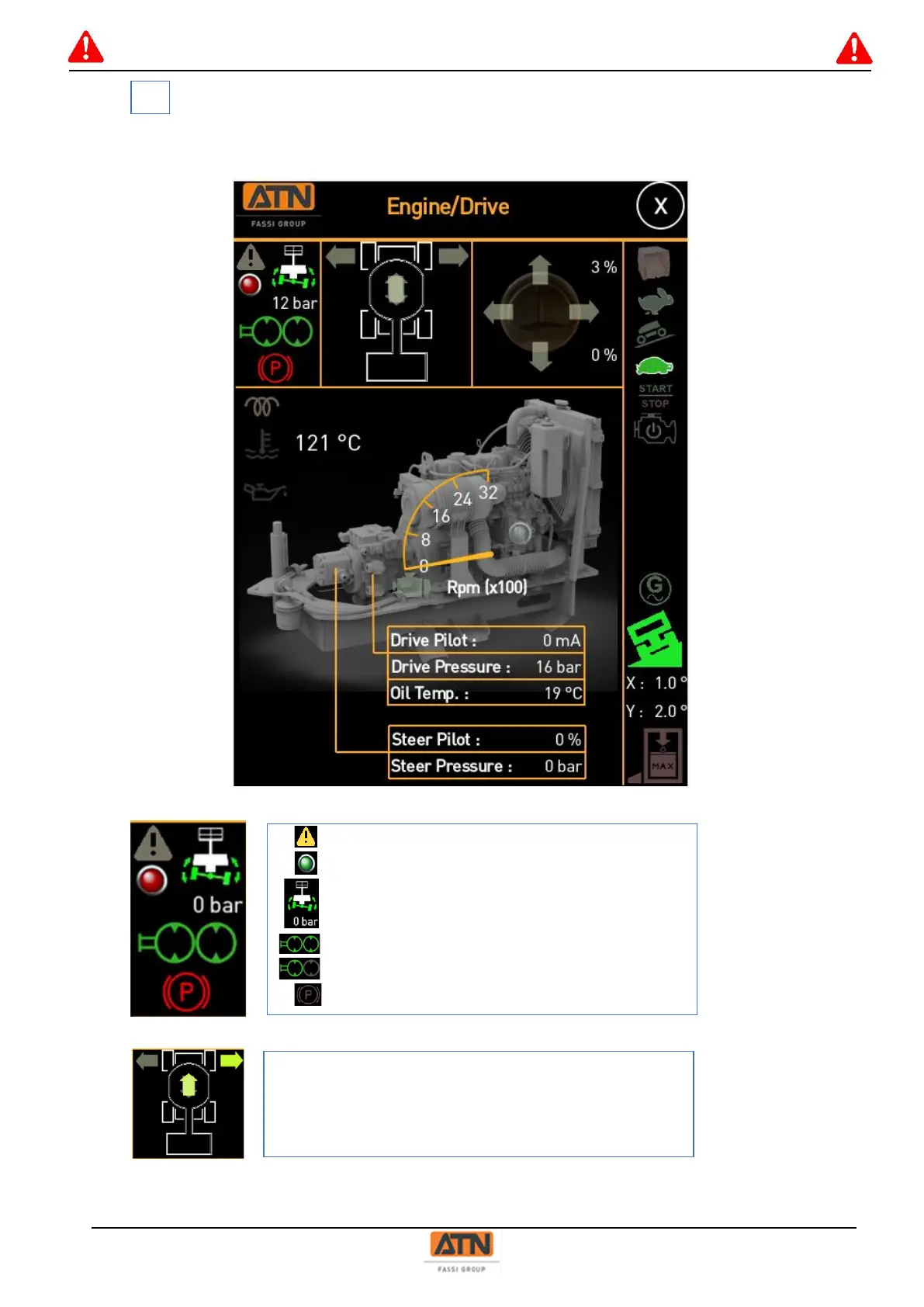

This page gives the various information on the combustion engine and the machine’s drive
movement.
8C
Fault on oscillating axle: Indicator lit if fault detected
Piloting oscillating axle: green light if unlocked
Pressure in oscillating axle / brake circuit
Large displacement – Low and slope speed
Small displacement – High speed
Active brake: light off if unlocked
Piloting Forward / reverse drive and right / left steering.
The arrows lit indicate the movement in progress
(Coil piloting).
