OPERATOR’S AND SAFETY HANDBOOK
1NO0060EN-00
Zebra 12 – Zebra 16

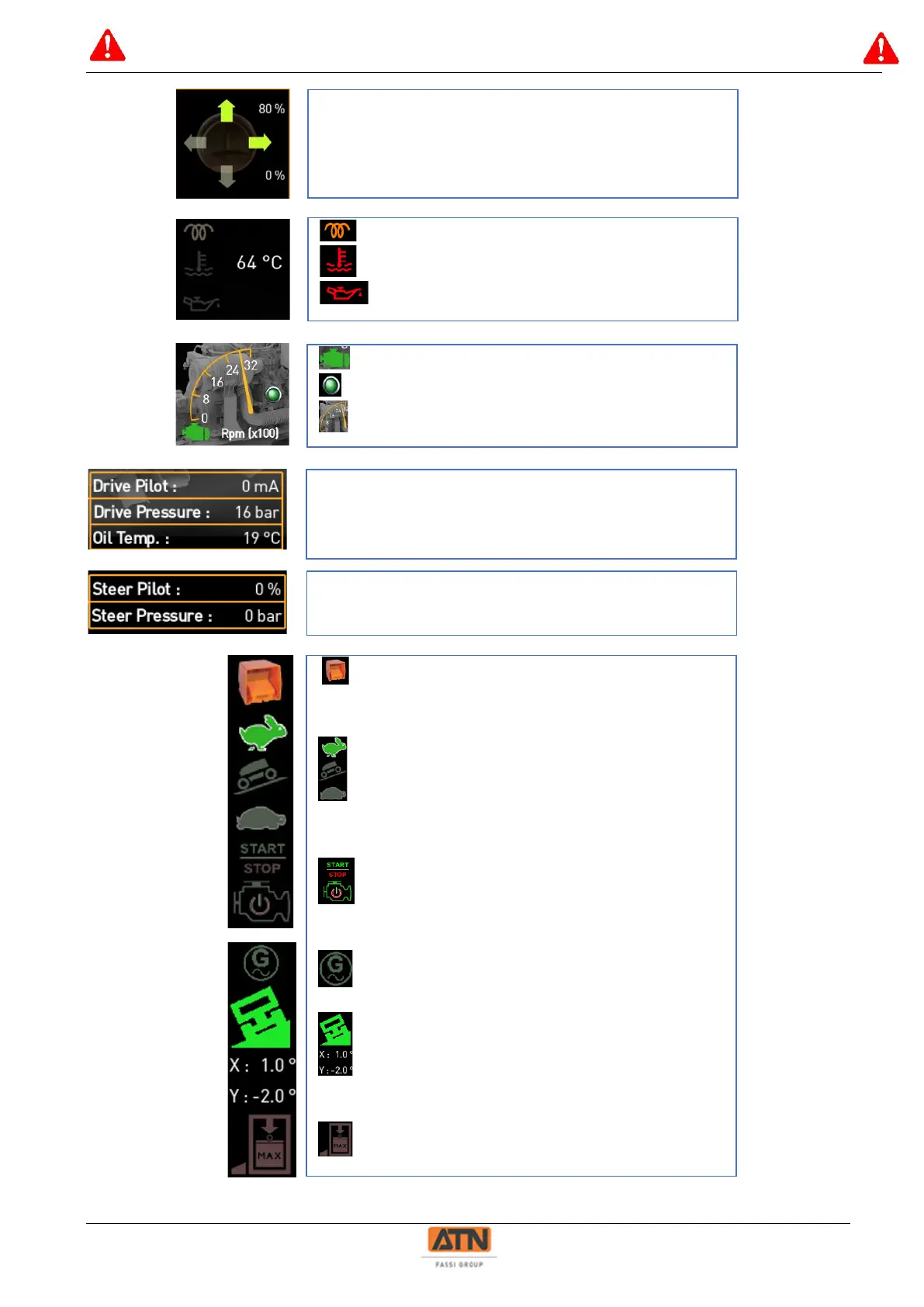

Information sent by the drive / steering joystick on the
upper control station.
The arrows lit indicate the movement in progress and the
percentage the position of the joystick.
0% : neutral position (rest) - 100% maximum travel
Preheat lit if active + remaining time displayed
Engine temperature fault if T°>100°C
Engine oil pressure fault
Detection engine started (sensor info RPM)
Piloting high speed (lit green if active)
Rev counter engine speed (x100)
Drive Pilot: Information of pump solenoid piloting in mA.
Drive Pressure: Transmission pressure in bar.
Oil Temp.: Hydraulic oil temperature in °C.
Condition pedal upper control station, lit if active.
Info Drive Speed Selector : Hare / Slope / Tortoise, lit
if active.
Info Engine start upper or lower control station, lit
if active.
Generator (option), lit if active.
Tilt, lit in green if ok and in red if beyond.
Overload, lit red if active.
Steer. Pilot : Information of steering proportional piloting
in %.
Steer Pressure: Steering Pressure in bars.
