OPERATOR’S AND SAFETY HANDBOOK
1NO0060EN-00
Zebra 12 – Zebra 16
84

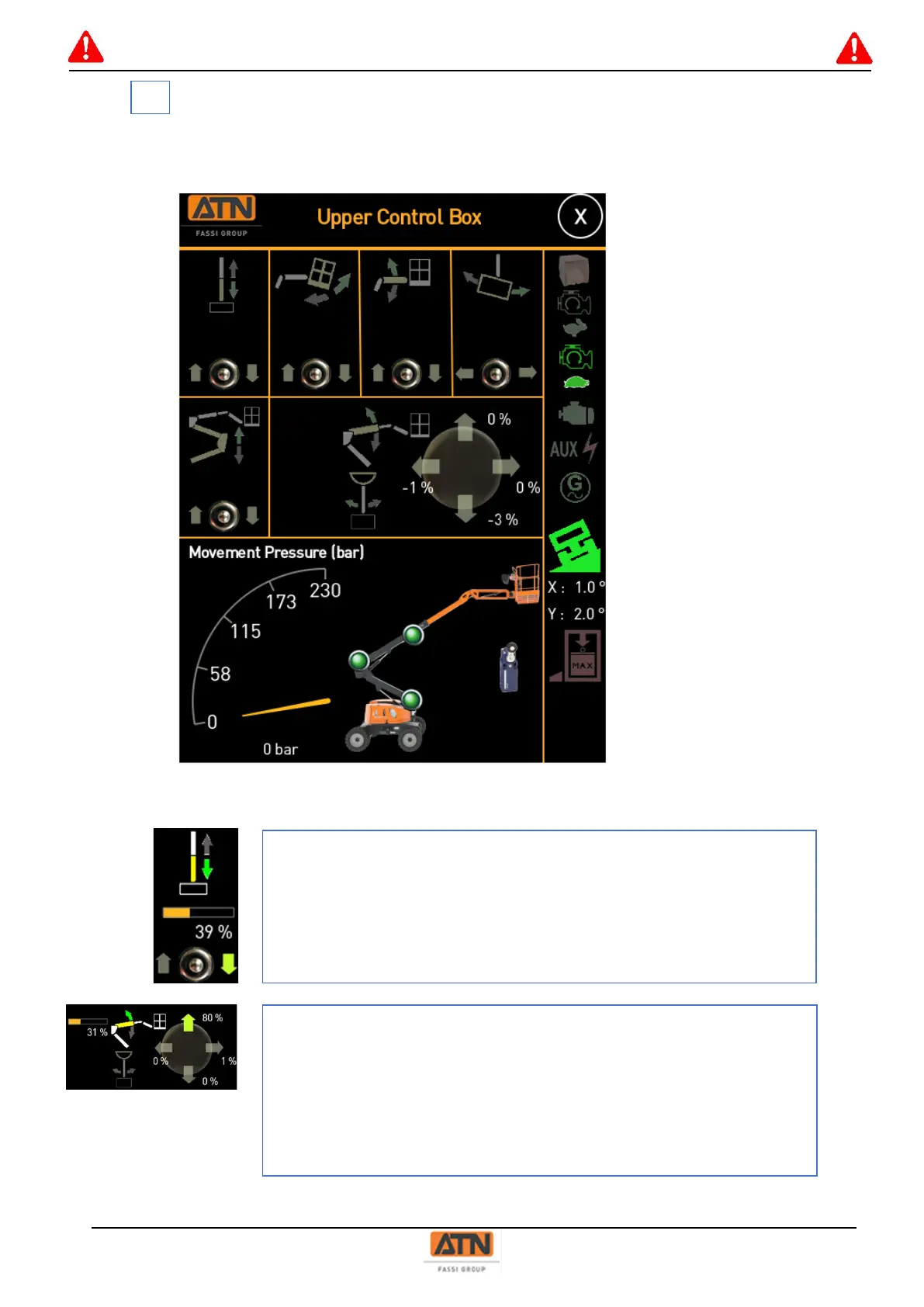

Menu Upper control box :
This page shows in real time the active controls on the upper control station and associated
outputs. Speed movement settings are also accessible from this screen.
8D
Piloting of elevation movement using the switches on the station.
The green arrow on the movement indicate the active output (coil piloting).
The gauge in percentage indicates the speed of the movement in progress
(adjustment of the proportional from the screen).
The green arrows around the button indicate the active input (button
action).
Piloting of arm 2 elevation movement and structure rotation using the
control station joystick.
The green arrow on the movement indicate the active output (coil piloting).
The gauge in percentage indicates the speed of the movement in progress
(adjustment of the proportional from the screen).).
The 4 arrows indicate the joystick active input with its tilt percentage
(joystick action).
