ATOMSTACK X7 Pro Series User Manual

Y
X
Y-axis
limiter
TIPS：How to determine the tightness of eccentric nuts?
Under the condition of ensuring that the bracket does not shake, you can lift one
end of the machine to an angle of 45 degrees with the horizontal plane, and release
the X-axis or Y-axis bracket from a high place. If the bracket can slide at a constant
speed to the end, the tightness is suitable.

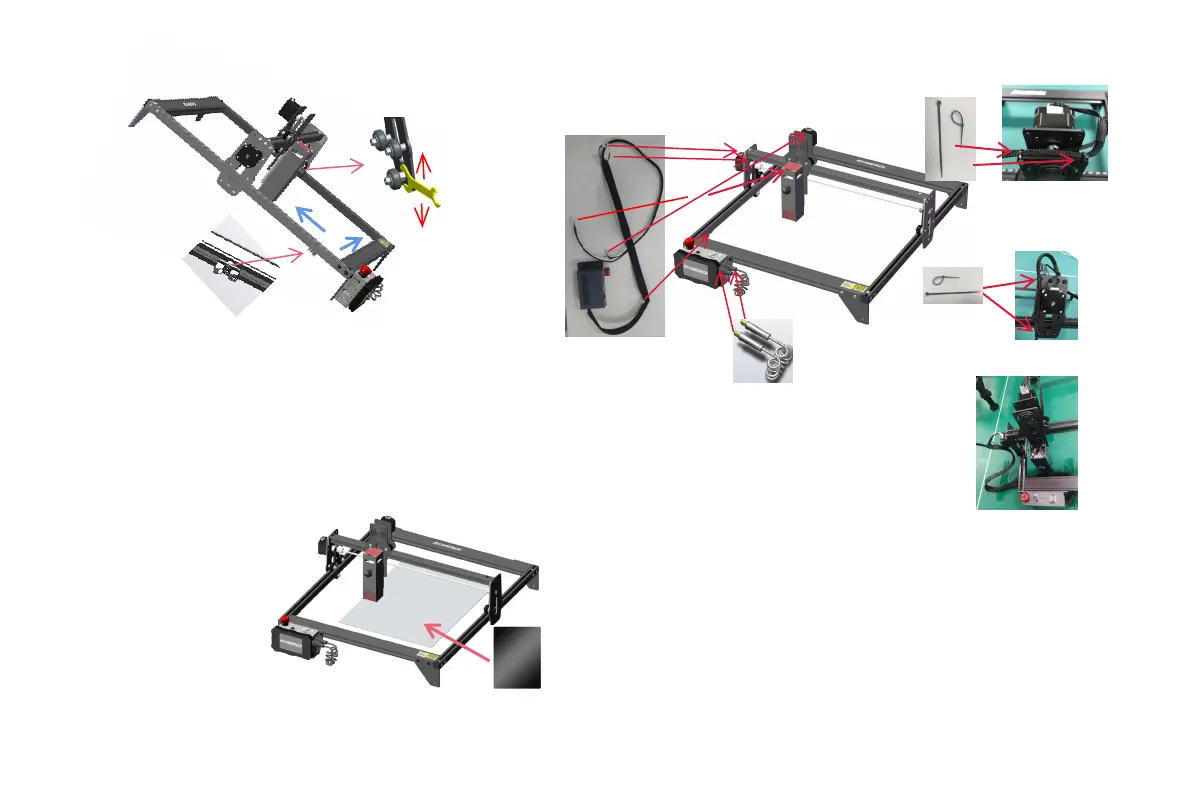

S t e p 5
Use a wrench to
turn the eccentric
nut to adjust the
tightness of the
guide wheel and
the guide rail
Partial
enlarged
view
1
3
S t e p 6
S t e p 7
Installation Manual:
1. As shown in the picture, place the cutting pad under the
engraved/cut object
2. As shown in the figure, the cutting pad should be placed to
cover the working area as far as possible

ATOMSTACK X7 Pro Series Specifications

General

Engraving Accuracy	0.01mm
Operating Software	LaserGRBL, LightBurn
Engraving Area	400x400mm
Supported File Formats	BMP, JPG, PNG, DXF
Connectivity	USB
Material Compatibility	Wood, bamboo, leather
Cutting Material	Wood, bamboo, leather, acrylic, fabric, paper, etc.
Laser Protective Cover	Yes
Input Format	NC, BMP, JPG, PNG, DXF etc.
Data Transmission Method	USB
Laser Type	Semiconductor laser
Connection	USB
Laser Wavelength	455nm
