ATOMSTACK X7 Pro Series User Manual

Logo side up
Screw:
M5*25
Gap side
outwarder
1
1
3
3
3
Y
X
2
M5-6
2
S t e p 2
The guide rail passes through the middle of the 3
rollers. Loosen the distance between the upper and
lower guide wheels appropriately.
3
4
1
2
3 3
Tighten the T nut and cut off
the excess belt.
group 2
installation hole
slide block
torx handle
Alongside
Figure 3
Figure 4
Fasten
Screw
Figure 2
Figure 1
S t e p 3
S t e p 1
S t e p 4
Engraving or cutting scope
0~65mm
Engraving or cutting
scope 0~45mm
Engraving or cutting scope
0~85mm
Group 3rd
Group 2nd
Group 1st

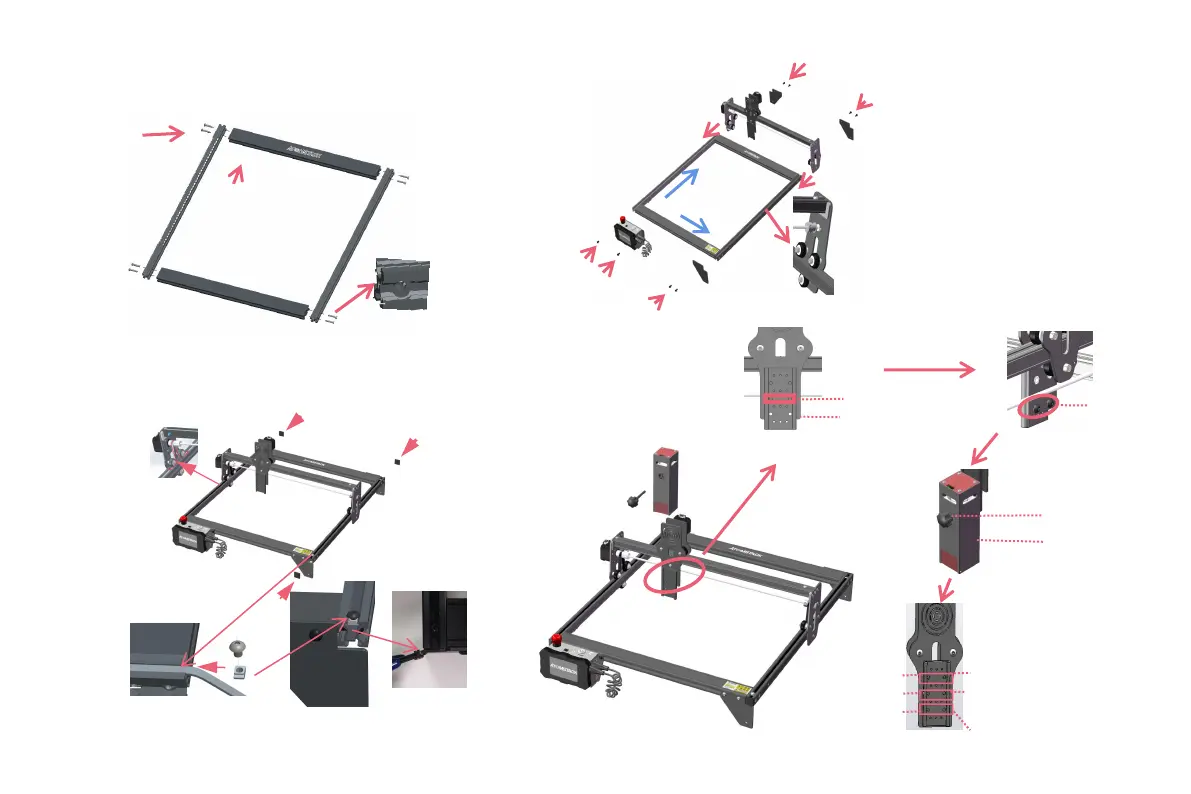

P a r t 4 ： I n s t a l l a t i o n S t e p s

ATOMSTACK X7 Pro Series Specifications

General

Engraving Accuracy	0.01mm
Operating Software	LaserGRBL, LightBurn
Engraving Area	400x400mm
Supported File Formats	BMP, JPG, PNG, DXF
Connectivity	USB
Material Compatibility	Wood, bamboo, leather
Cutting Material	Wood, bamboo, leather, acrylic, fabric, paper, etc.
Laser Protective Cover	Yes
Input Format	NC, BMP, JPG, PNG, DXF etc.
Data Transmission Method	USB
Laser Type	Semiconductor laser
Connection	USB
Laser Wavelength	455nm
