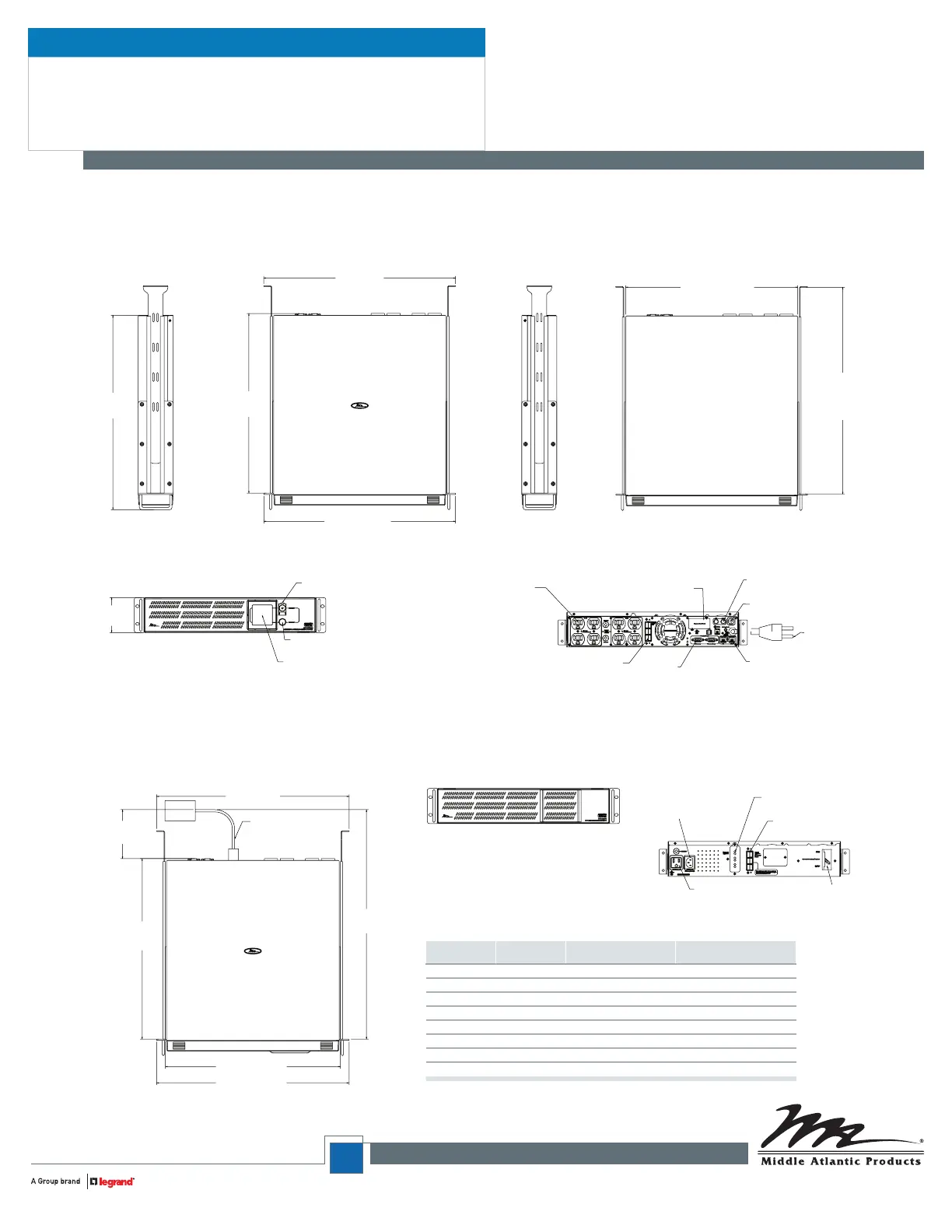

side view top view bottom view
rear view
rear view
front view
front view
UPS-EBPR Series
UPS-2200/1000 Series
top view
side view
19
.291
[490]
19.000 [482.6]
17.829
[452.9]
power switch
function select
LCD display
CATV surge
protection
15/20A circuit breaker
8X NEMA5-20R (UPS-2200R)
8X NEMA5-15R (UPS-1000R)
8X NEMA5-20R (UPS-2200R-IP)
8X NEMA5-15R (UPS-1000R-IP)
expansion
battery
connector
17.047 [433.00]
3.465
[88]
control
ports
ethernet surge
protection
15/20A
Signal SAFE™
cord
rear
mounting
range
19"[483]
to 32"[813]
19.0 [483]
IP card expansion port
(order p/n UPS-IPCARD)
19.000 [482.60]
17.283 [439.00]
17.829
[452.85]
power
switch
48v DC
battery input
48v DC
battery output
AC input
AC output
NEMA5-15R
19.00 [483]
22.66
[575.50]
connecting
cable
4.83
[122.68]
Model# Capacity Outlet Control Internet enabled
UPS-1000R 1000VA critical / non-critical bank w/ optional UPS-IPCARD
UPS-1000R-IP 1000VA critical / non-critical bank yes
UPS-1000R-8 1000VA individual outlet w/ optional UPS-IPCARD
UPS-1000R-8IP 1000VA individual outlet yes
UPS-2200R 2150VA critical / non-critical bank w/ optional UPS-IPCARD
UPS-2200R-IP 2150VA critical / non-critical bank yes
UPS-2200R-8 2150VA individual outlet w/ optional UPS-IPCARD
UPS-2200R-8IP 2150VA individual outlet yes
alldimensionsininchesunlessotherwisenoted[alldimensionsinbracketsareinmillimeters]
UPS Series
basic dimensions
