INSTALLATION

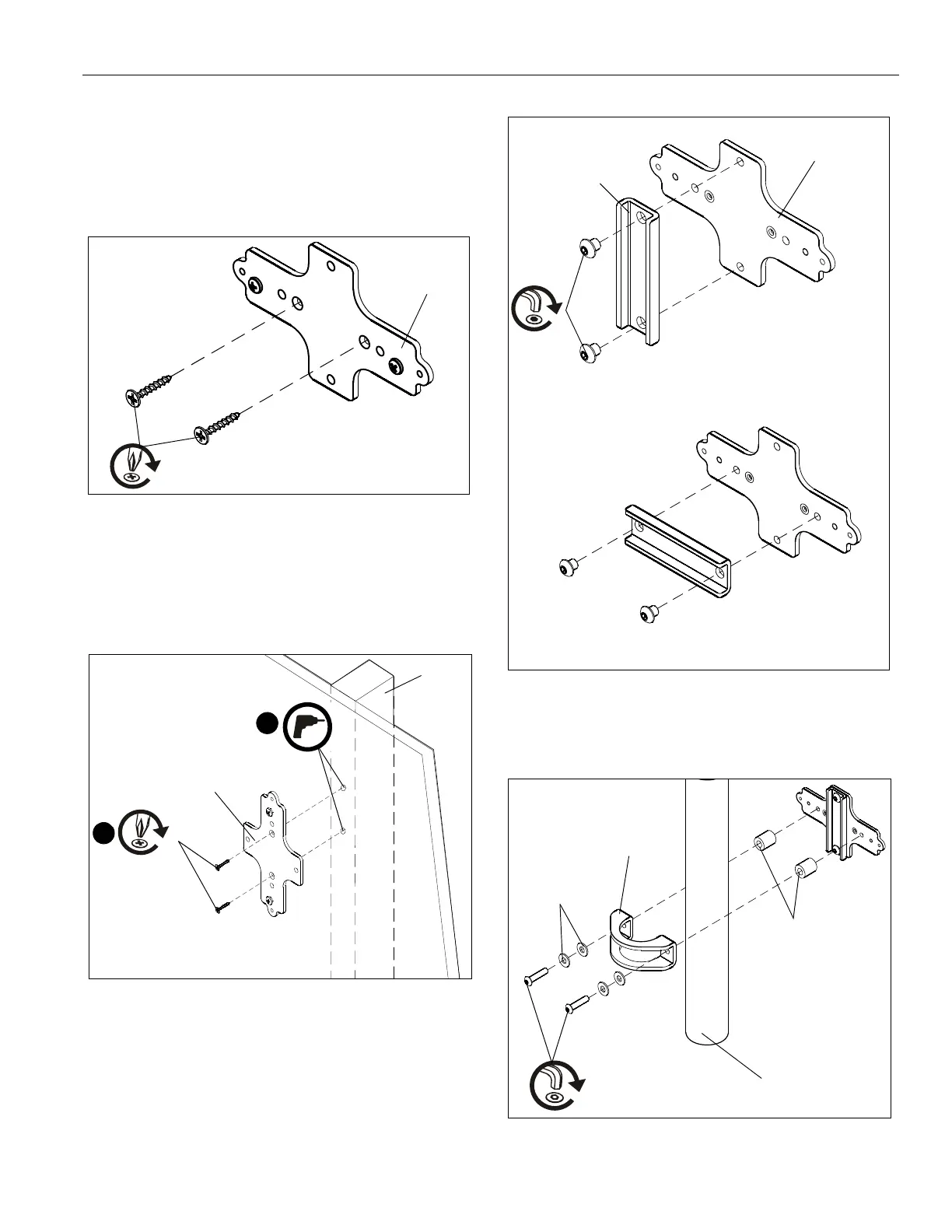

Attaching to Drywall
1. Attach bracket (D) to drywall using two #6 x 1" drywall
screws (L). (See Figure 1)
NOTE: Do NOT overtighten drywall screws.
2. Proceed to Installing Conditioner.
Figure 1
Attaching to Wood Stud
1. Drill two 0.08" pilot holes into wood stud. (See Figure 2)
2. Attach bracket (D) to wall using two #6 x 1" drywall
screws (L).
3. Proceed to Installing Conditioner
.
Figure 2
Attaching to 1-1/2" NPT Pole
1. Attach bracket (D) to pole mount bracket (C) using two
1/4-20 x 1/4" buttonhead screws (K). (See Figure 3)
NOTE: The bracket can be installed for either horizontal or
vertical attachment of the conditioner. (See Figure 3)
Figure 3
2. Attach pole clamp (B) around the pole to the pole mount
bracket using two 1/4-20 x 1-1/4" buttonhead security
screws (H), four 1/4" washers (N), and two spacers (M).
(See Figure 4)
Figure 4
(D)
(L) x 2
Wood
Stud
Wall
(D)
(L) x 2
1
2
(K) x 2
(C)
(D)
Conditioner to be Attached Horizontally
Conditioner to be Attached Vertically
(B)
(M) x
2
(H) x 2
(N) x 4
1-1/2" NPT Pole
(Horizontal Attachment Shown)
