HCR 102
CONFIG
1
SIGNAL
HDCP
LPCM-2CH
MULTI-CH
1
R
INPUT AUDIO
MENU
ENTER
HOLD FOR 720p/1080p
POWER STANDBY
LAN
WiFi
1 2 3 4
XPA U 1002 SERIES
LIMITER/PROTECT
SIGNAL
OVER
TEMP
21
POWER AMPLIFIERS
Extron
XPA U 1002-70V
Power Amplier
Extron
DMP 64 Plus C V AT
Digital Matrix Processor
OUTPUTSINPUTS
ACTIVITY
CONFIG
EXP
USB
LAN 1
LAN 2
DMP 64 Plus
DIGITAL MATRIX PROCESSOR
1 2 3 4 5 6 1 2 3 4
CLIP
SIGNAL
CLIP
SIGNAL
USB Audio
Audio
HCT 103
2
INPUTS
2 3 4
SIGNAL
HDCP
3 4
Audio
Display
Dante Table Mics
USB Camera
Zoom
Web Portal
HDMI
Capture
HDMI
Audio
HDMI
RS-232
USB
USB
Ethernet/PoE
Ethernet
Ethernet
Ethernet
Ethernet/PoE
Ethernet/PoE
Ethernet
HDMI
HDMI
Laptops
Extron
HC 404
Transmitter
Extron
HC 404
Receiver
CATx Cable
up to 230' (70 m)
Extron
TLP Pro 1025T
10" Tabletop
TouchLink Pro
Touchpanel
Extron
SF 26CT
Speakers
PC
Ethernet/PoE

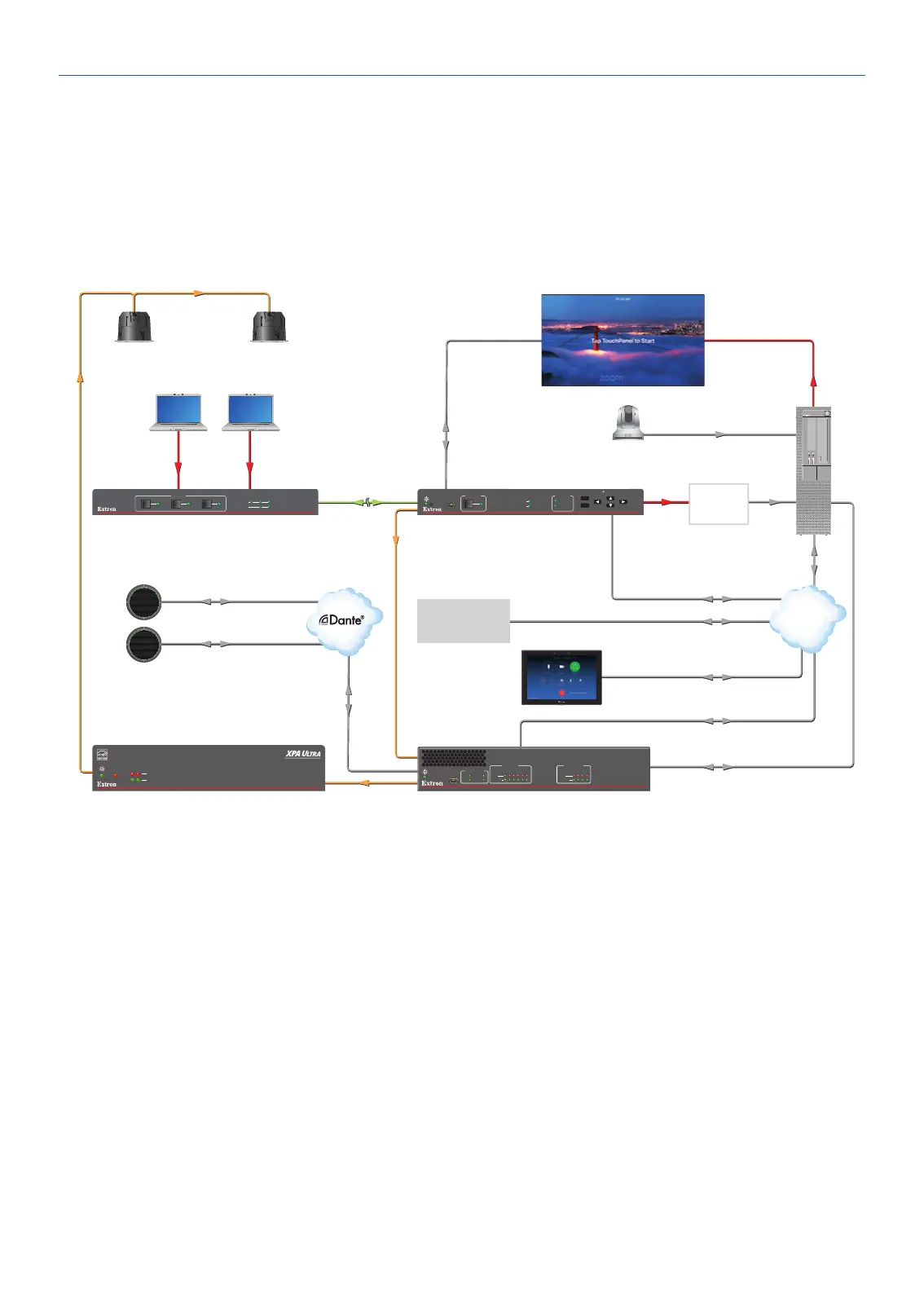

Zoom Room Audio
In this Zoom-enabled collaboration space, audio processing is handled by the DMP 64 Plus C V AT while connection to sources and
displays is performed by an HC 404 system. Two Dante table mic arrays are connected via Ethernet to the DMP 64 Plus C V AT, where
they receive all processing necessary for conferencing, including AEC. Depending on need, the user can switch between the Zoom
web portal and a dedicated VoIP server. The entire system is network controlled from an Extron TLP Pro 1025T touchpanel. High
performance mix minus audio playback is provided by the XPA U 1002-70V power amplifier feeding a pair of SF 26CT two-way ceiling
speakers.
APPLICATION DIAGRAM
