Wood Side
Panels (Pair)* Wood Top*
Wood Top and
Side Panels*
A
Height
B
Depth
C
Depth Fits
5-SP-14T 5-T-20T 5-TSP-14T 28.00 [712] 20.75 [528] 24.04 [611] 5-14
5-SP-21T 5-T-20T 5-TSP-21T 40.25 [1023] 20.75 [528] 24.04 [611] 5-21
5-SP-29T 5-T-20T 5-TSP-29T 54.25 [1378] 20.75 [528] 24.04 [611] 5-29
5-SP-37T 5-T-20T 5-TSP-37T 68.25 [1734] 20.75 [528] 24.04 [611] 5-37
5-SP-43T 5-T-20T 5-TSP-43T 78.75 [2001] 20.75 [528] 24.04 [611] 5-43
5-SP-14-26T 5-T-26T 5-TSP-14-26T 28.00 [712] 26.75 [680] 30.04 [764] 5-14-26
5-SP-21-26T 5-T-26T 5-TSP-21-26T 40.25 [1023] 26.75 [680] 30.04 [764] 5-21-26
5-SP-29-26T 5-T-26T 5-TSP-29-26T 54.25 [1378] 26.75 [680] 30.04 [764] 5-29-26
5-SP-37-26T 5-T-26T 5-TSP-37-26T 68.25 [1734] 26.75 [680] 30.04 [764] 5-37-26
5-SP-43-26T 5-T-26T 5-TSP-43-26T 78.75 [2001] 26.75 [680] 30.04 [764] 5-43-26
Steel Side
Panels, Pair
D
Height
E
Depth Fits
SP-5-8** 17.50 [445] 20.75 [528] 5-8
SP-5-14** 28.00 [712] 20.75 [528] 5-14
SP-5-21 40.25 [1023] 20.75 [528] 5-21
SP-5-29 54.25 [1378] 20.75 [528] 5-29
SP-5-37 68.25 [1734] 20.75 [528] 5-37
SP-5-43 78.75 [2201] 20.75 [528] 5-43
SP-5-8-26** 17.50 [445] 26.75 [680] 5-8-26
SP-5-14-26** 28.00 [712] 26.75 [680] 5-14-26
SP-5-21-26 40.25 [1023] 26.75 [680] 5-21-26
SP-5-29-26 54.25 [1378] 26.75 [680] 5-29-26
SP-5-37-26 68.25 [1734] 26.75 [680] 5-37-26
SP-5-43-26 78.75 [2201] 26.75 [680] 5-43-26
all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]

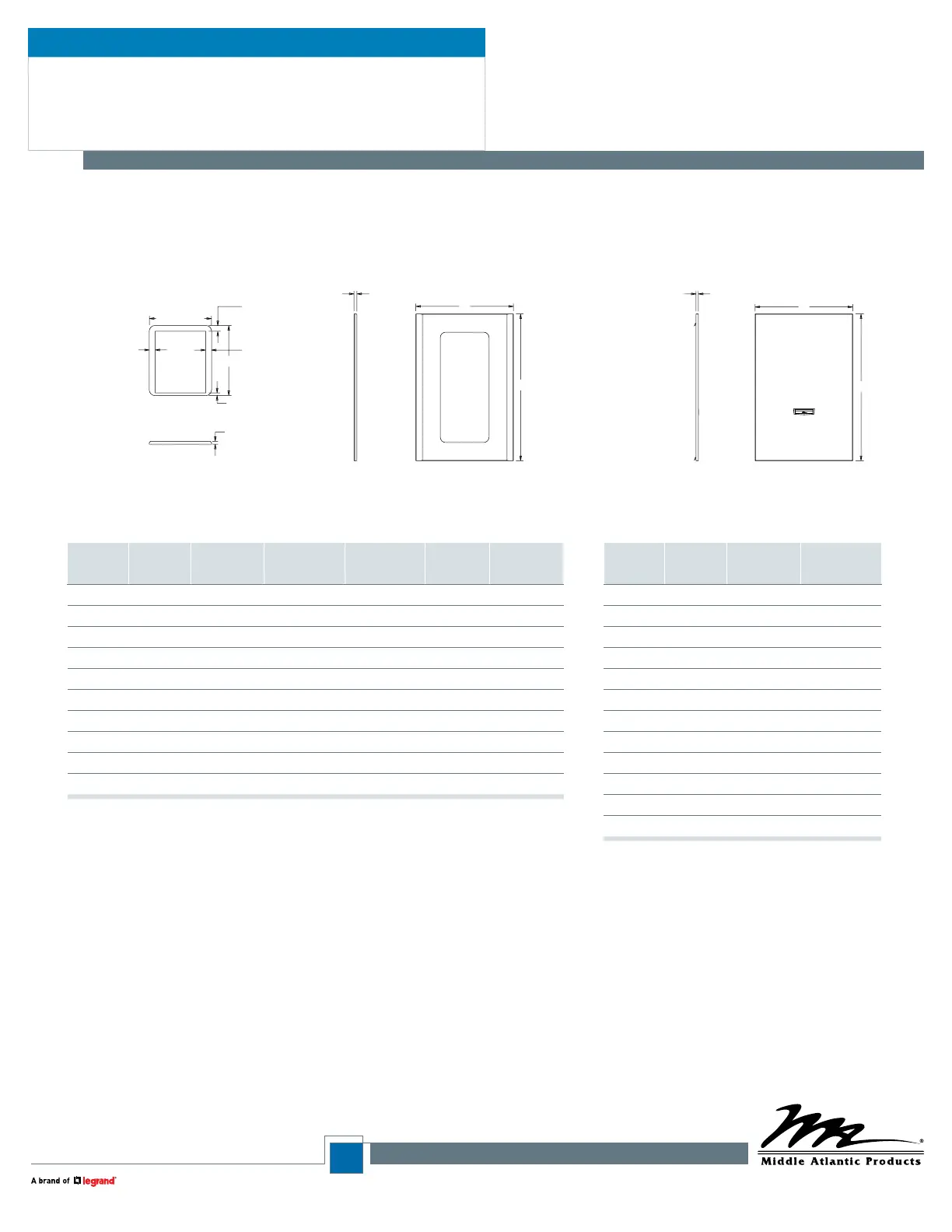

Slim 5 Series
basic dimensions
*Refer to middleatlantic.com for available finishes, FIN-XX, which must also be specified
**Does not have a handle
thermolaminate top view steel side panelthermolaminate side panel
C
21.27 [540]
1.74 [45]
rear
overhang
.375 [10]
side
ov
erhang
.375 [10]
side overhang
.898 [23] front
overhang
D
E
.63 [16]
A
B
.75 [19]
1.00 [25]
