middleatlantic.com | middleatlantic.ca
what great systems are built on.
™
2
top view top view
front viewside viewside view
bottom view
rear view
removable 4-1/2”
fan knockout
19.125
[486]
5.063 [129]
0.318 [8]
trim panel
removable
trim/vent
panels
9.00 [229] /
15.00 [381]
10.50 [267]
19.98 [508]/
25.98 [660]
8.063 [205]
E.K.O. 8 places
1/2 & 3/4 knockouts
1.118 [28]
D
C
E
B
A
5-X/5-X-26
19.98 [507] /
25.98 [660]
1.50 [38]
(optional
front door)
.88 [22]
(optional rear
access pan)
.63 [16]
(optional side
panels sheet
metal)
.75 [19]
(optional side panels
thermolaminated wood)
Useable
Depth Part #
Useable
Depth
A
Overall Height
B
Racking Height
C
Height w/ Casters
D
Height w/ Leveling Feet
E
Runner Kit
5-43 20 [508] 79.00 [2007] 75.25 [1911] 82.75 [2102] 79.38/79.75 [ 2016/2026] 79.25 [2013]
5-37 20 [508] 68.50 [1740] 64.75 [1645] 72.25 [1835] 68.88/69.25 [1750/1759] 68.75 [1746]
5-29 20 [508] 54.50 [1384] 50.75 [1289] 58.25 [1480] 54.88/55.25 [1394/1403] 54.75 [1390]
5-21 20 [508] 40.50 [1029] 36.75 [933] 44.25 [1124] 40.88/41.25 [1038/1048] 40.75 [1035]
5-14 20 [508] 28.25 [718] 24.50 [622] 32.00 [813] 28.63/29.00 [727/737] 28.50 [724]
5-8 20 [508] 17.75 [451] 14.00 [356] 21.50 [546] 18.13/18.50 [461/470] 18.00 [457]
5-43-26 26 [660] 79.00 [2007] 75.25 [1911] 82.75 [2102] 79.38/79.75 [2016/2026]
79.25 [2013]
5-37-26 26 [660] 68.50 [1740] 64.75 [1645] 72.25 [1835] 68.88/69.25 [1750/1759]
68.75 [1746]
5-29-26 26 [660] 54.50 [1384] 50.75 [1289] 58.25 [1480] 54.88/55.25 [1394/1403]
54.75 [1390]
5-21-26 26 [660] 40.50 [1029] 36.75 [933] 44.25 [1124] 40.88/41.25 [1038/1048]
40.75 [1035]
5-14-26 26 [660] 28.25 [718] 24.50 [622] 32.00 [813] 28.63/29.00 [727/737]
28.50 [724]
5-8-26 26 [660] 17.75 [451] 14.00 [356] 21.50 [546] 18.13/18.50 [461/470]
18.00 [457]
all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]

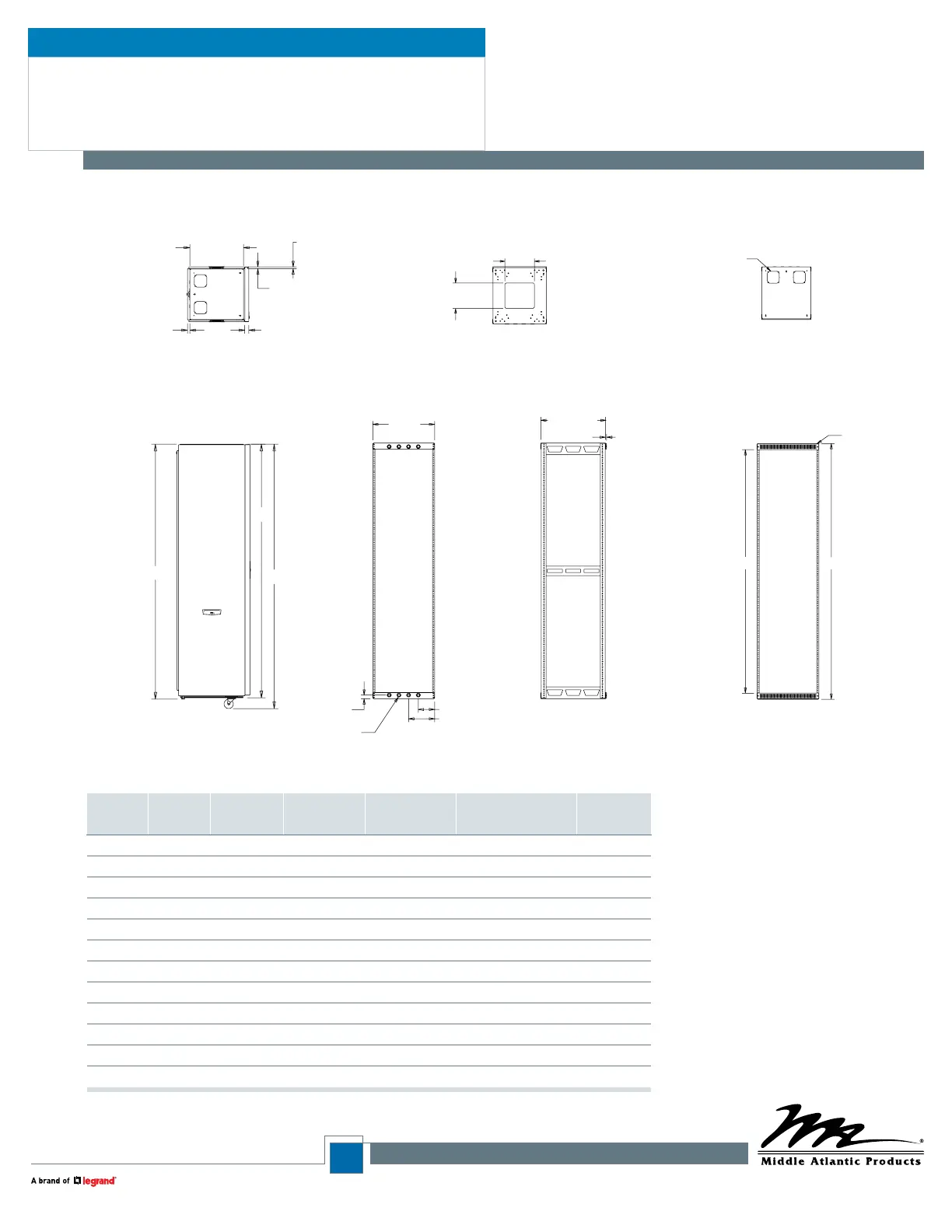

Slim 5 Series
basic dimensions
Notes:
1. Side panels are .25” [6] shorter than the
overall height of the Slim 5 Rack
2. Add an additional .06” [2] to the “Height with
casters” (C) for the skirted caster base option
3. Skirted caster base is not a required option
when using casters
4. Runner kits (5-RS20 and 5-RS26) add 1/4”
[6mm] to overall height of rack
Note: Some dimensions are given for both 5-X and 5-X-26 in the form (5-X / 5-X-26)
