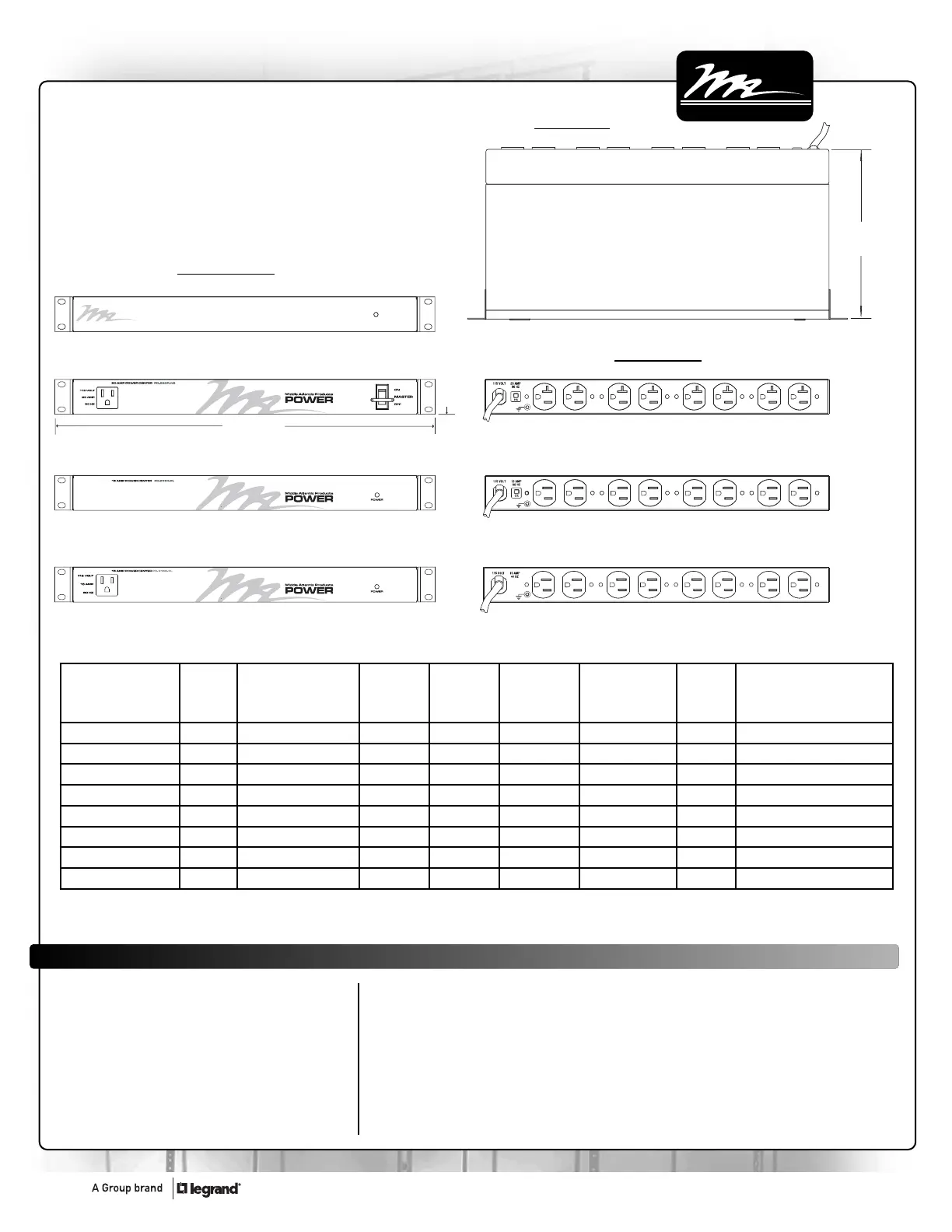

Rackmount Power Strips basic dimensions
Surge Suppression & EMI Filter Specifications (all models except PD-920R-NS)
All dimensions in inches [Bracketed dimensions are in millimeters]
• Maximum allowable voltage: 125 VAC (RMS)
- Maximum continuous voltage differential applied between
line and neutral
- Maximum clamping voltage: 395 volts@100 amps
• Peak impulse current (8/20 micro seconds):
- 30,000 amps, one time
- 21,000 amps, two times within 5 minutes
- 9,000 amps, ten times within 2 minutes
- Maximum peak impulse current pulse as defined between
line and neutral
- Maximum multiple impulse current derated per spec
• Response time: Instantaneous (Less than 1 nanosecond)
• EMI/ RF Suppression: More than 20 db
- Calculated line to neutral, 100 KHz to 1 MHz suppression
based upon nominal impedance
(PD-815R-PL / PD-815RA-PL)
(PD-920R-NS, PD-915R, PD-915RC-20, PD-920R, PD-920RC-20)
TOP VIEW
(PD-920R-NS, PD-920R, PD-920RC-20)
(PD-815RA-PL)
(PD-915R)
(PD-815R-PL)
8
.75
[222]
1
.75
[44]
19.00 [483]
Middle Atlantic Products
Part # Amps
Power Cord/
Plug Type # Front Outlets # Rear Outlets
Circuit Breaker
Location
Rear Outlet
Type
Cord
Length Finish
PD-815R-PL 15 14/3 NEMA 5-15P 0 8 Rear NEMA 5-15R 9' Black Powder Coat
PD-815RA-PL 15 14/3 NEMA 5-15P 0 8 Rear NEMA 5-15R 9' Black Brushed and Anodized
PD-915R 15 14/3 NEMA 5-15P 1 8 Front NEMA 5-15R 9' Black Powder Coat
PD-920R-NS 20 12/3 NEMA 5-20P 1 8 Rear NEMA 5-20R 9' Black Powder Coat
PD-915R-PL 15 14/3 NEMA 5-15P 1 8 Rear NEMA 5-15R 9' Black Brushed and Anodized
PD-920R 20 12/3 NEMA 5-20P 1 8 Front NEMA 5-20R 9' Black Powder Coat
PD-920RC-20 20 12/3 NEMA 5-20P 1 8 Front NEMA 5-20R 20' Black Powder Coat
PD-915RC-20 15 14/3 NEMA 5-15P 1 8 Front NEMA 5-15R 20' Black Powder Coat
FRONT VIEW
REAR VIEW
(PD-915R-PL)
Maximum Derated Load (North America) for 15R Models: 12 Amps
for 20R Models: 16 Amps
