CABLING CONNECTION
MDU Solutions
®
– UCrypt
®
QAM to QAM – Quick Start Guide 5-1
CABLING CONNECTION
5. Cabling Connection
The input signal level presented to the UCrypt device must be in the range of +5 to +10 dBmV per digital carrier as measured
at the RF input port. The output RF level is +38 dBmV +/- 2 dB at the RF output port. Adjacent QAM carriers should be equal
in level.
A crossover Ethernet Cable is provided with the UCrypt device for connecting directly to the Management Computer.
UCrypt
®

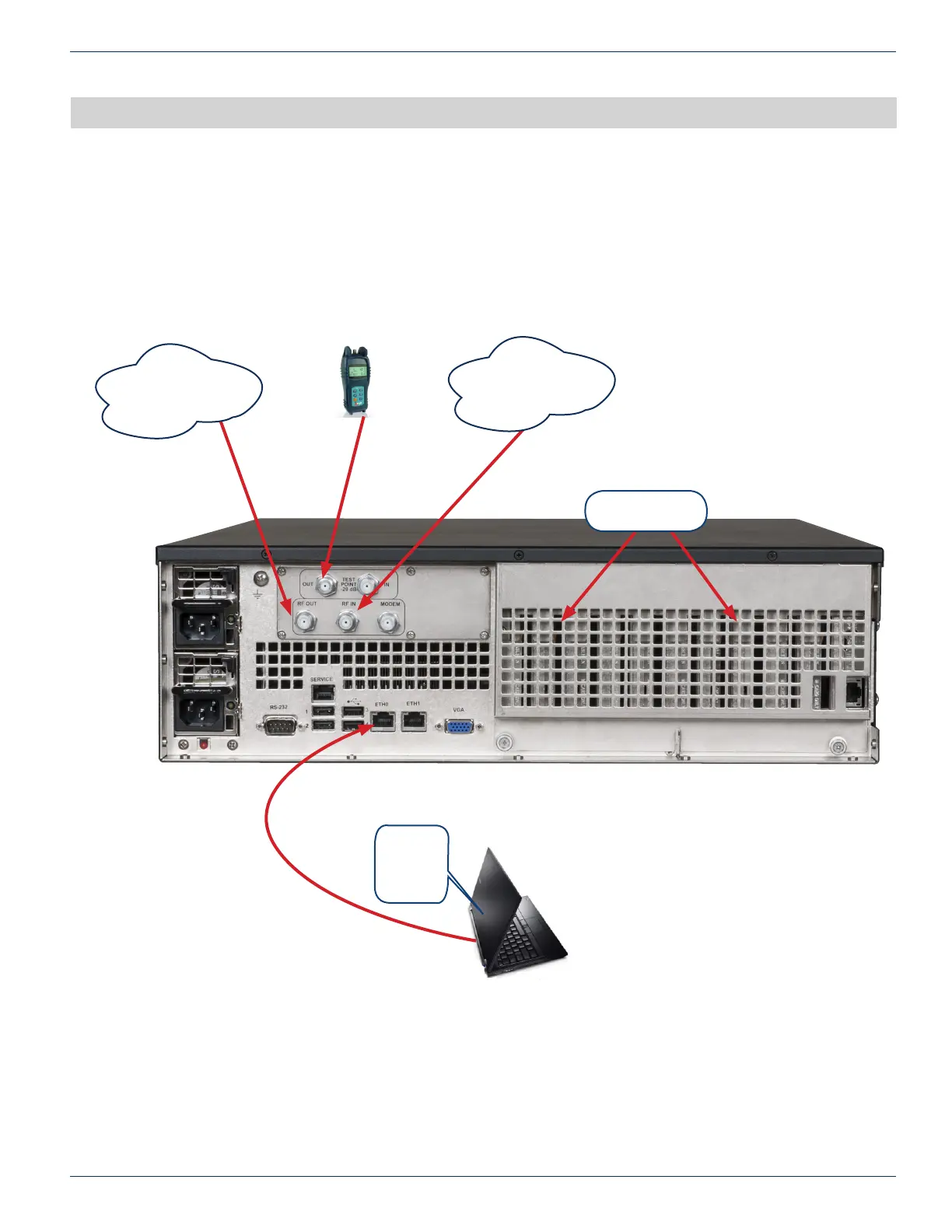

QAM to QAM Rear Panel Connections
Digital
Cable
TV Field
Meter
Management
Computer
Crossover
Ethernet
Cable
Provided
with UCrypt
Feed to MDU or
Distribution Network
+38 +/-2 dBmV
Cable System Input
Feed +5 to +10 dBmV
per Digital Channel
CHAPTER 5:
CableCARD Host
Receptacles
