Chapter 1
Pin connections and connectors
CONNECTION STANDARDS
The in- and output connections for AUDAC audio equipment are performed corresponding
to international wiring standards for professional audio equipment.

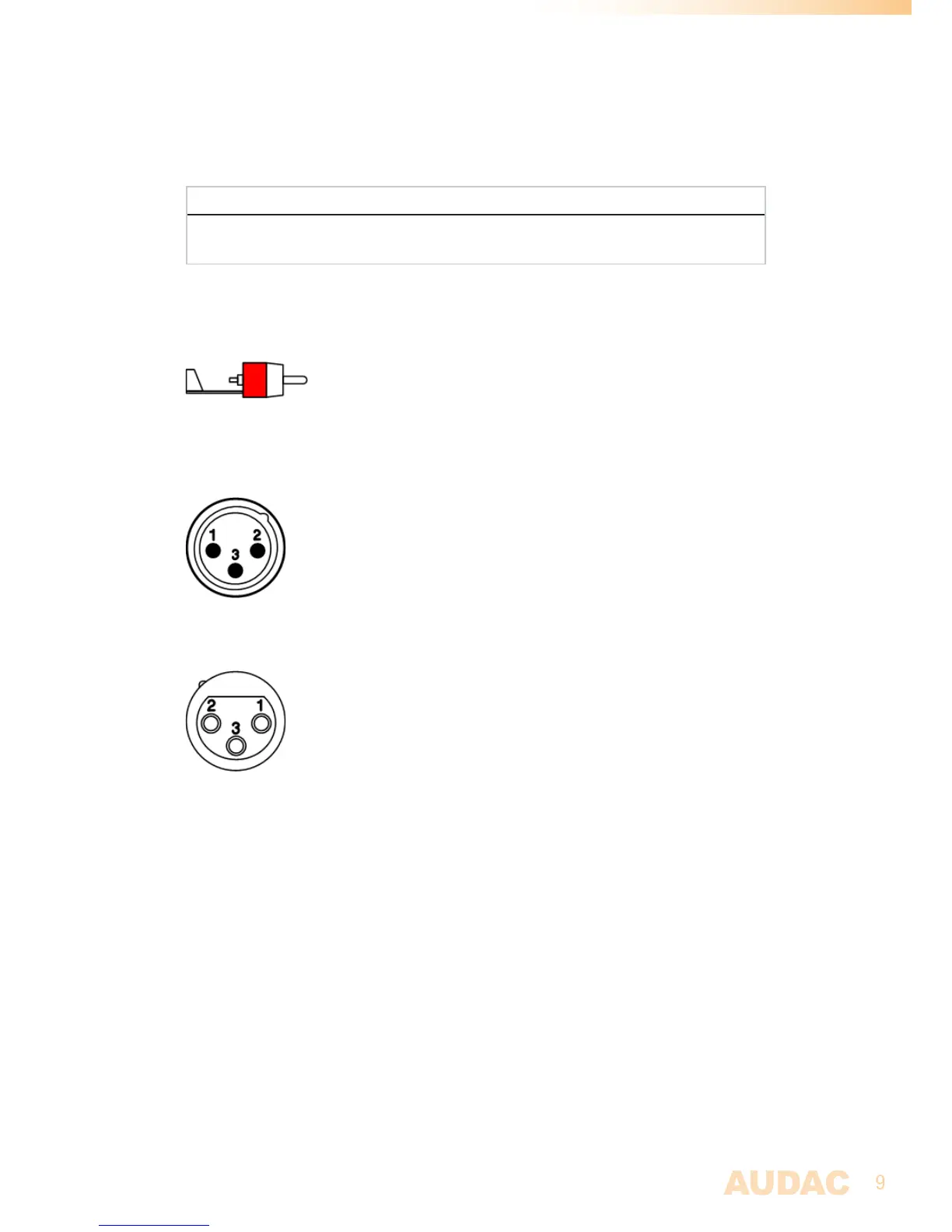

Cinch (RCA):
For unbalanced line input connections
Tip: Signal Sleeve: Ground
White: Left Red: Right
XLR:
For balanced signal input connections
Pin 1: Ground
Pin 2: Signal +
Pin 3: Signal -
For balanced signal link-through connections
Pin 1: Ground
Pin 2: Signal +
Pin 3: Signal -
Wire up the system
The wiring of the system must be done according to the following rules, to guarantee a
proper functioning of the system in all circumstances.
1. Speaker cable for amplified outputs:
Minimum 2 x 1.5 mm²
If distance > 15m: 2 x 2.5 mm²)
2. Audio signal inputs (inputs & signal linkthrough outputs)
Must be connected with high-quality audio cable and high-quality
connectors
