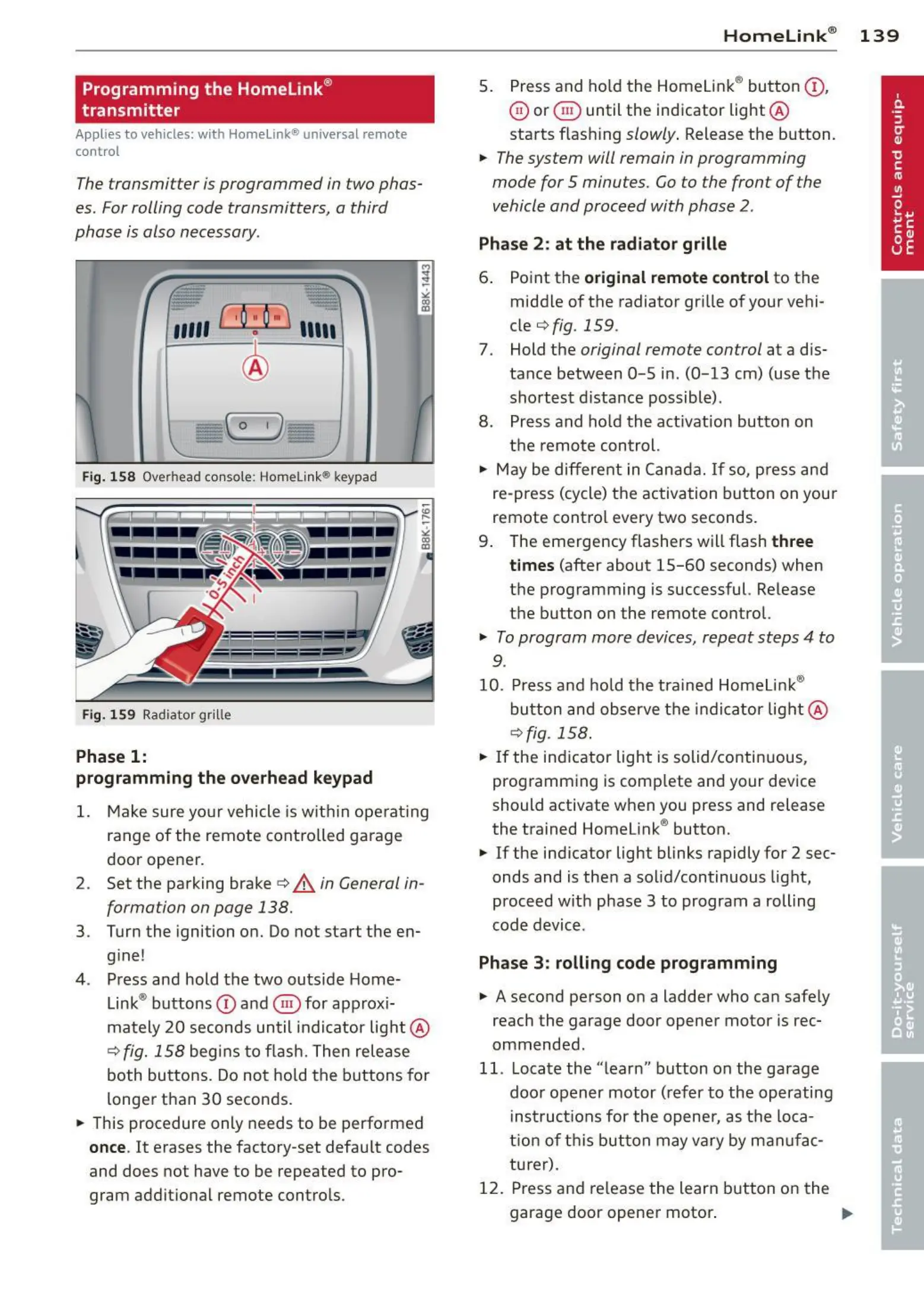

Programming the Homelink ®
transmitter
Applies to vehicles: with Horne link® universal remote
control
The transmitter is programmed in two phas-
es. For rolling code transmitters, a third
phase is also necessary.
/
'/'
~
..,.-,,,, ~
;, , r ,O:O·,) ,,,,;
®
)
I~-,- ( o
\ -
,)- ~
(>
~
Fig. 15 8 Overh ead console: Homelink ® keypad
Fig. 159 Radiator g rille
Phase 1:
programming the overhead keypad
l
~
"
CX>
!E
;
CX>
a,
1. Make sure your vehicle is with in ope rat ing
range of the remote cont rolled garage
door opener.
2 . Set the parking brake ~
A in General in-
forma tion on page 138.
3 . Turn the ignition on. Do not start the en-
gine!
4. Press and hold the two outs ide Home-
Link® buttons
(D a nd @ for approxi-
mately 20 seconds until indicator light @
c:;, fig. 158 begins to flash. Then release
both bu ttons. Do not ho ld the buttons for
longe r than
30 seconds .
• This procedure only needs to be perfo rmed
once . It erases the factory-set defau lt codes
and does not have to be repeated to pro-
gram addit io nal remote contro ls.
Homelink ® 139
5. Press and ho ld the Homelink ® button (D,
@ or @ until the indicator light @
starts flash ing
slowly . Release the button.
• The system will remain in programming
mode for 5 minutes. Co to the front of t he
vehicle and proceed with phase 2 .
Phase 2 : at the radiator grille
6. Point the original remote control to the
middle of the radiator gr ille of your vehi-
cle c:;, fig. 159 .
7. Hold the original remote control at a dis-
tance between 0- 5 in. (0-13 cm) (use the
shortest d istance possible) .
8. Press and ho ld t he act ivation button on
the remote control.
• May be different in Canada. If so, press and
re-press (cycle) the activation button on your
remote contro l every two seconds.
9 . The emergency flashers will flash
three
times
(after about 15-60 seconds) when
the programming is successful. Release
the but t on on the remote control.
• To program more devices, repeat steps 4 to
9.
10 . Press a nd ho ld the tra ined Homel ink®
button and observe the indicator light @
¢fig . 158.
• If the indicator light is solid/co nti nuous ,
prog ramming is comp lete and your device
should activate when you press and release
the trained Homel ink® button.
• If the ind icator light blinks rapidly for 2 sec-
onds and is the n a solid/continuous light,
proceed with phase 3 to program a rolling
code device .
Phase 3: rolling code programming
• A second person on a ladder who can safe ly
reach the garage door opener motor is rec-
ommended.
11. Locate the "learn" button on the garage
doo r opener motor (refer to the operating
instruct ions for the opener, as the loca-
t ion of t his button may vary by man ufac-
tu rer) .
12 . Press and release the learn button on the
garage door opener motor .
