High variant SAE
The back lights for the North American market have
standard LED units. The LED units are used for the
indicator and brake light function.
The three sections underneath are for the tail light
lamps.
The SAE back lights have two rear fog lights and two
reversing lights.
LED unit diagnosis
The failure of an LED is detected by the electronics
in the lamp housing. All LEDs are then switched off
so that the central control unit for the convenience
system J393 can set the relevant fault memory
entry.

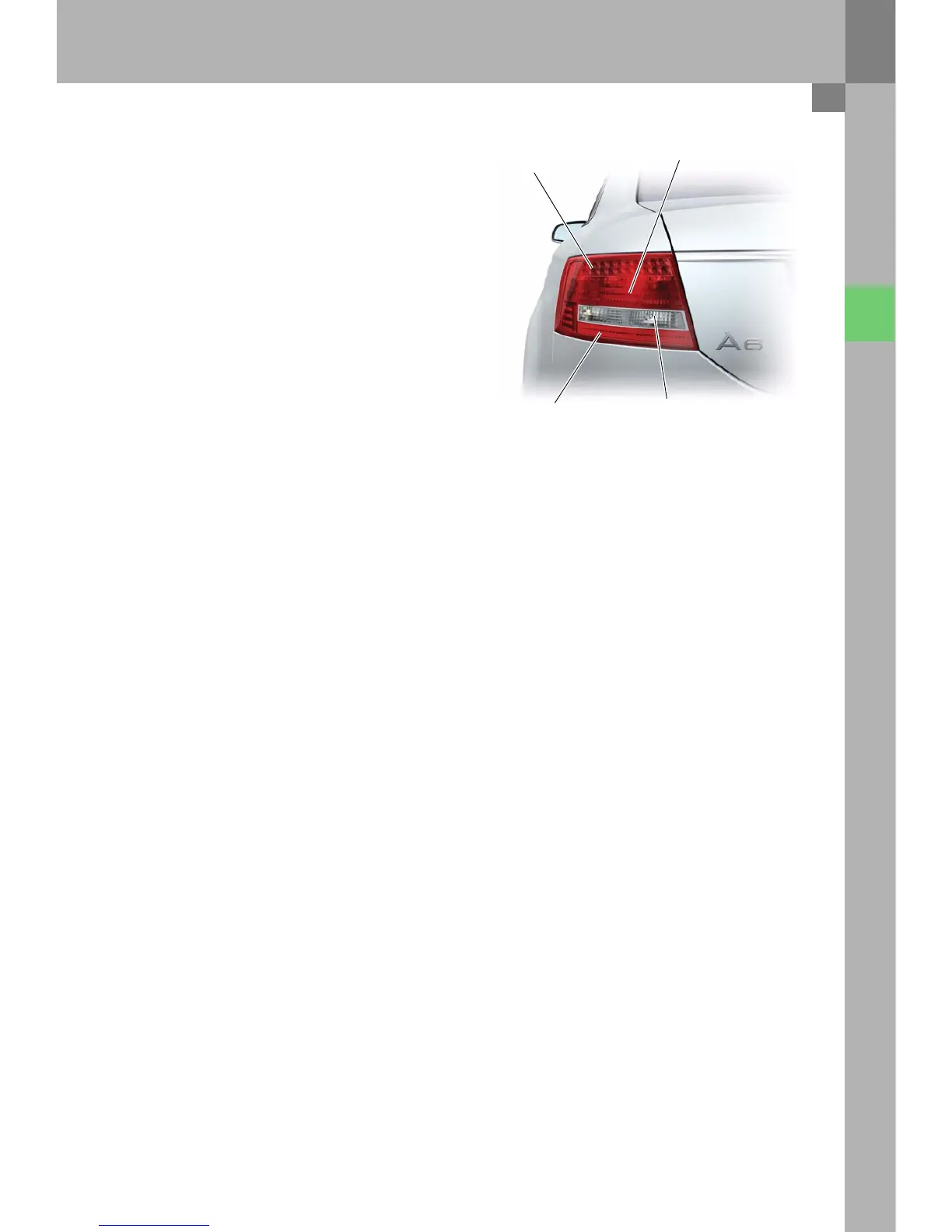

326_142
Brake light and
direction indicator light
Tail lights
Rear fog light Reversing light
