MMI High
The MMI High comes with the 7" colour display.
The standard equipment of the Top system in
Audi A6 ‘05 Infotainment includes an RDS dual-
tuner, the standard sound system and a 6x CD
changer in the glove compartment. As an optional
extra, this MMI version is also available with DVD
navigation, which is already used in the current A8
‘03, as well as the voice operator system with the
voice input control unit J507 as a plug-in module of
the radio module R.
Only in this MMI version can drivers choose
between the fixed telephone module and the mobile
baseplate. The well-known analogue TV tuner R78 is
also available at present as an optional extra.
Infotainment

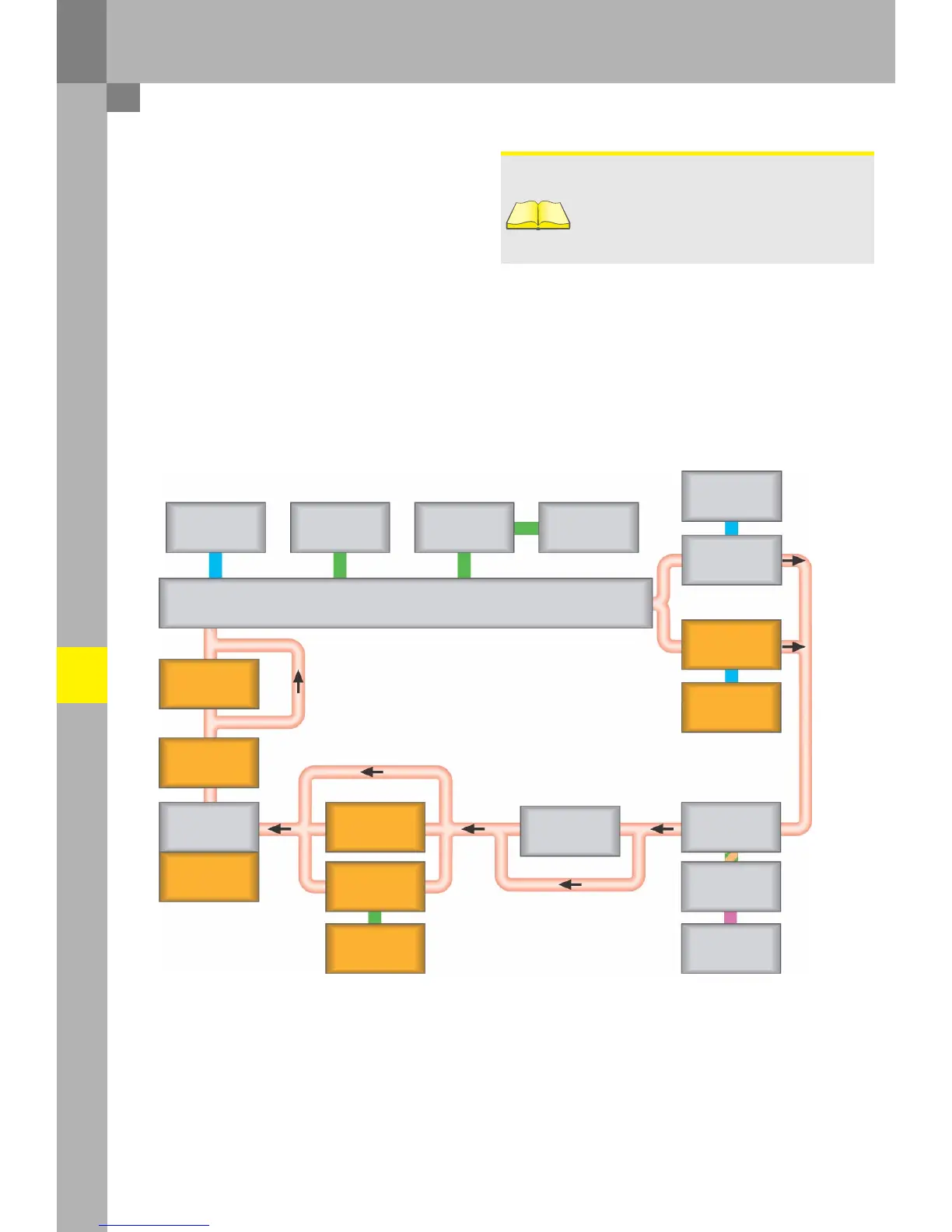

Legend
The orange symbols represent the possible optional
equipment. If a relevant option is missing, simply
follow the route indicated by arrows to close the
MOST ring.
326_044
Front information
are used
in the tester
J685
Multimedia
operating unit
E380
Control unit for front information J523
Loudspeaker
DSP amplifier
J525
Loudspeaker
DSP amplifier
BOSE
J525
CD changer
R41
Tele ph on e
transmitter and
for telephone
R36
TV tuner
R78
Tele ph one/
telematics
J526
Handset
for telephone
R37
Radio
R
Voice input
J507
Navigation
with CD drive
J401
Reference
Information on the DVD-based navigation
system can be found in the SSP 293,
Audi A8 ´03 – Infotainment.
Antenna booster
R24
Antenna
amplifier 2
R111
Data bus diagnosis
interface
J533
Steering column
electronics
J527
Multi-function
steering wheel
J453
