System overview
Convenience electrics
– Hall sender 1 for vertical adjustment of the
steering column
– Hall sender 2 for axial adjustment of the
steering column
– Bonnet switch for anti-theft warning system
–Rotary light switch
–Hazard warning button
– Switch for reversing light (manual transmission)
– Sensor for rain and light detection (via LIN bus)
– Front direction indicator lights, left and right
– Side direction indicator lights, left and right
– Front parking light, left and right
– Dipped beam headlight, left and right
– High beam headlight, left and right
– Fog lights, left and right
– Relay for headlight cleaning system
– Windscreen washer pump
– Control unit for wiper motor (via LIN bus)
– Supply, terminal 58
– Front footwell lights, left and right
– Relay for dual-pitch horn
– Steering column adjustment (vertical/axial)
– Selector lever lighting
– Indicator light for hazard warning lights
– Magnets for cover adjustment
Headlights (left and right)
326_110

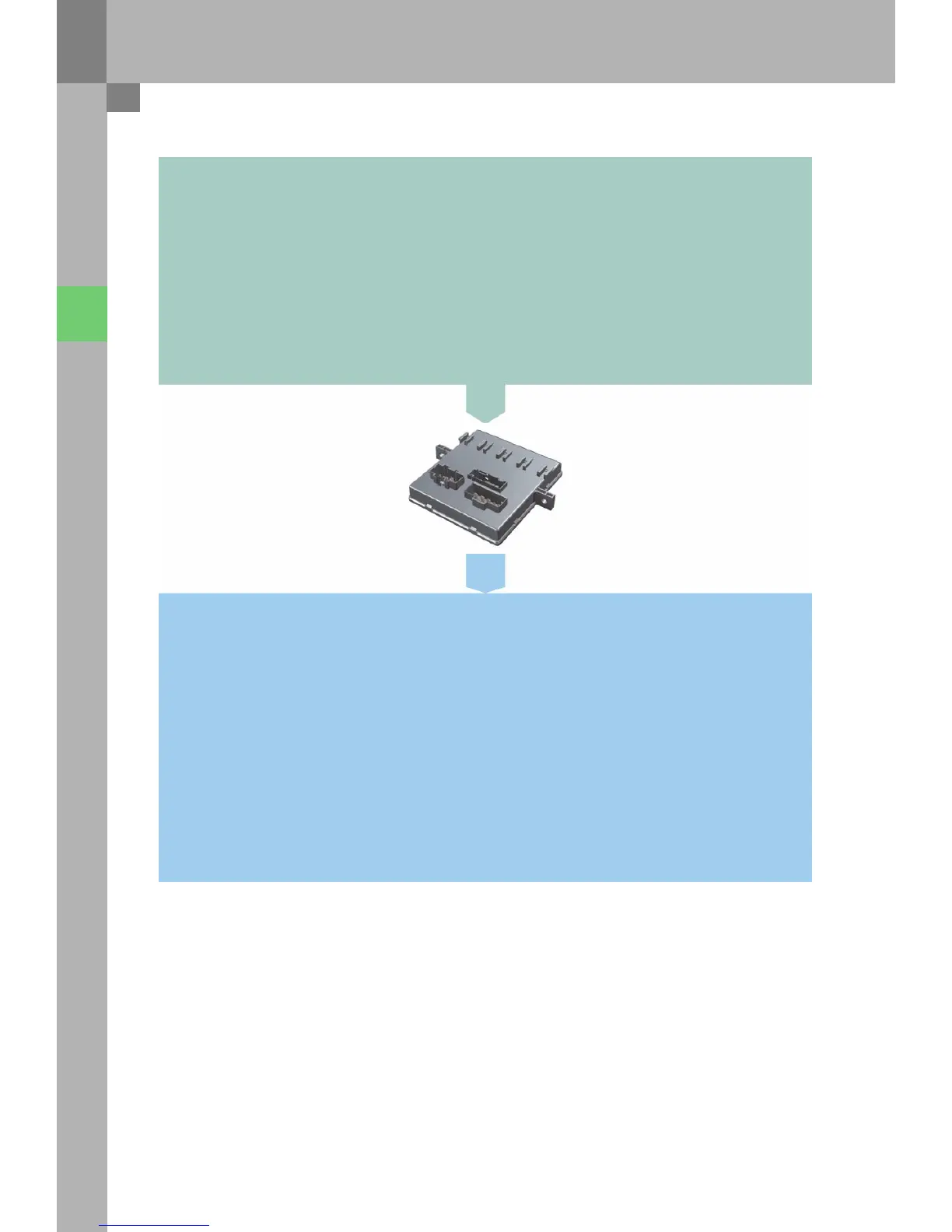

The control unit for on-board power supply J519 evaluates the following input signals:
The control unit for on-board power supply J519 controls the following loads:
