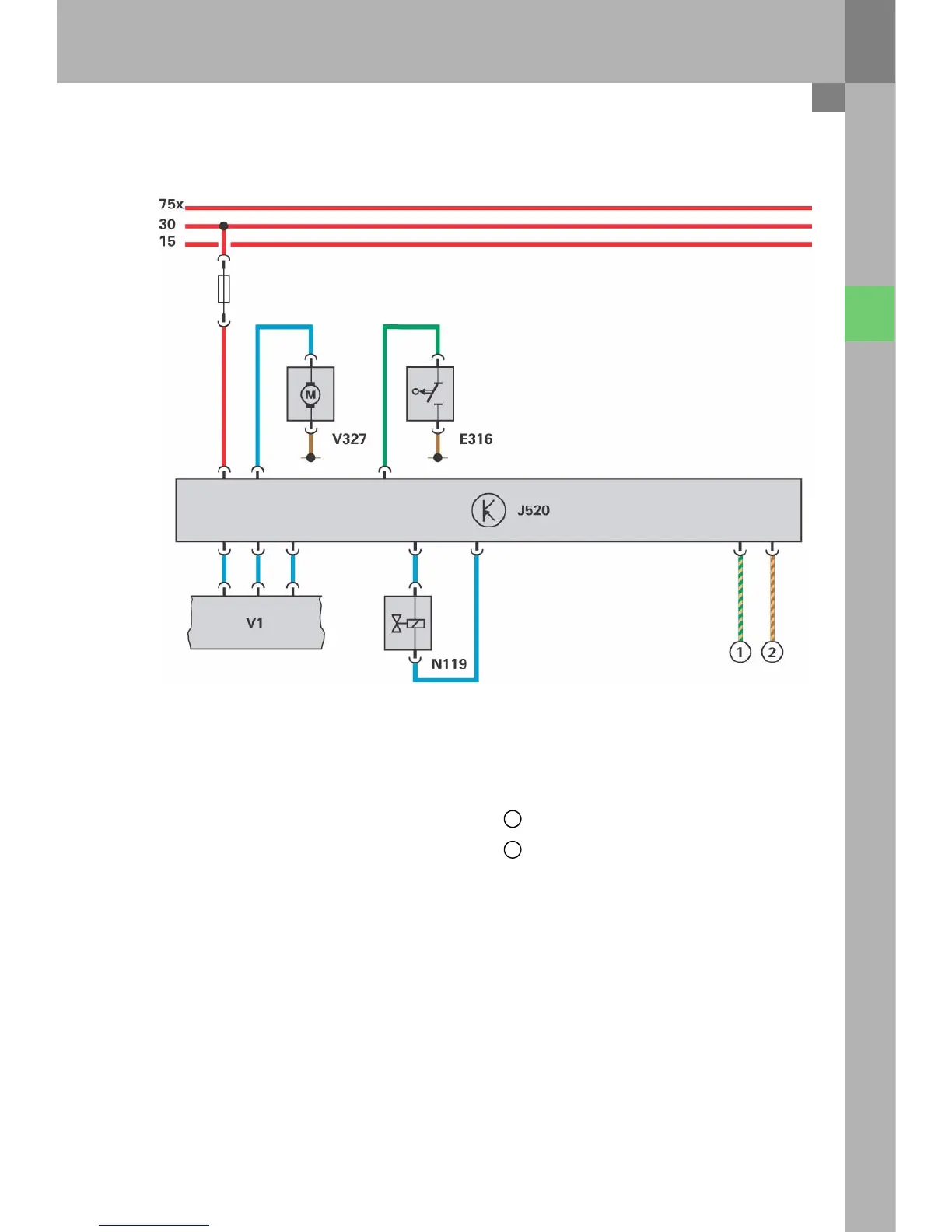

Function diagram
326_082
Legend
E316 Glove compartment button
J520 Control unit 2 for on-board power supply
N119 Solenoid valve for Servotronic
V1 Motor for sliding roof
V327 Motor for glove compartment release
Additional signals
1CAN Convenience High
2CAN Convenience Low
