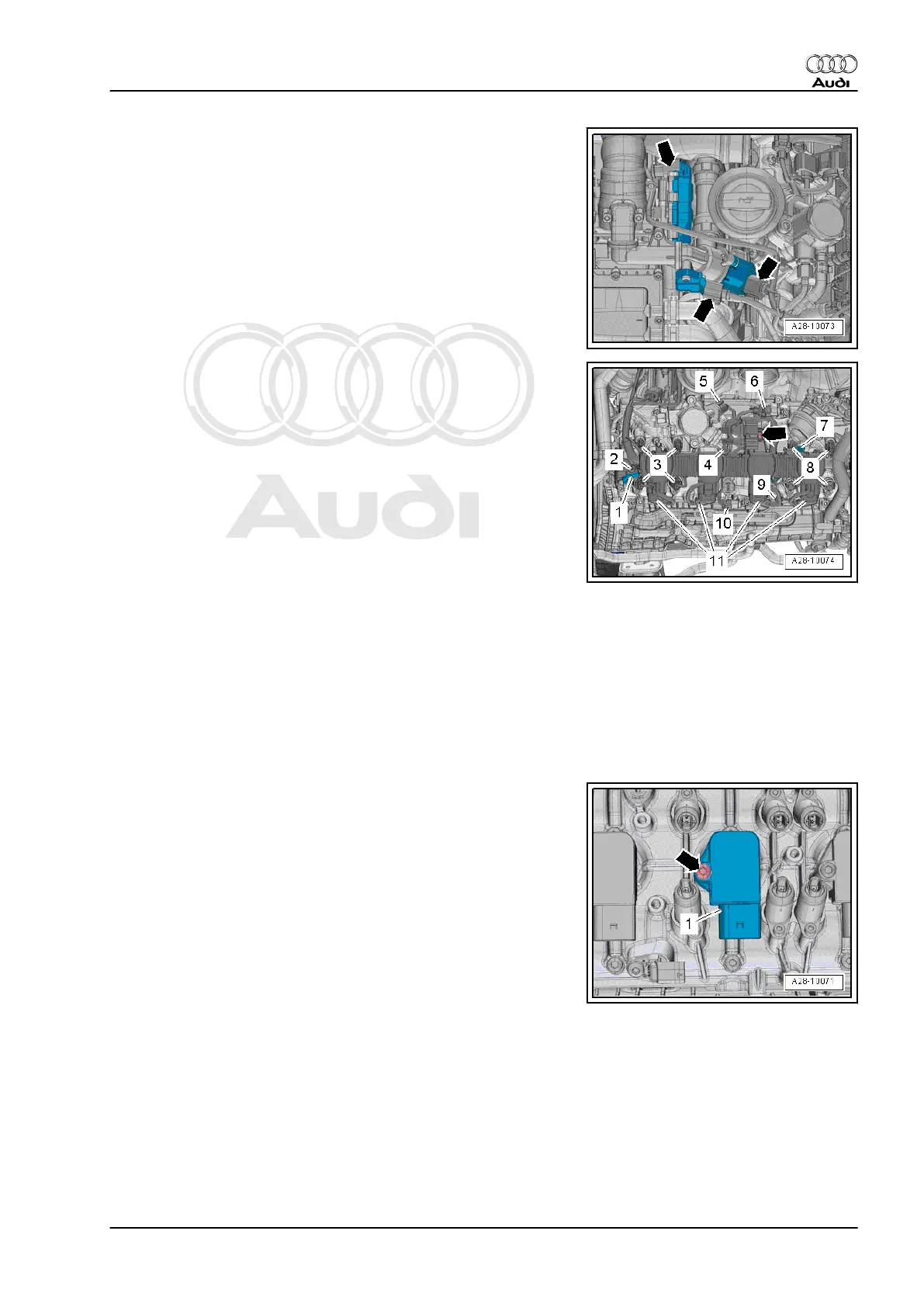

– Unplug electrical connectors -arrows- and move wiring clear.
– Unplug the following electrical connectors and move electrical
wiring harness clear:
3 - For inlet/exhaust cam actuators -F464- , -F465- , -F466- and
-F467-
4 - For fuel metering valve 2 - N402-
5 - For fuel pressure sender for low pressure - G410-
6 - For Hall sender 4 - G301-
8 - For inlet/exhaust cam actuators -F476- , -F477- , -F478- and
-F479-
10 - For Hall sender 2 - G163-
11 - For ignition coils -N323- , -N324- , -N325- , -N326-
– Disconnect vacuum hoses -1- and -7-.
– Remove bolts -2-, -9- and centre hex stud -arrow- and move
earth wire clear.
– Push ignition coil connector towards ignition coil, release re‐
tainer and detach connector from ignition coil.
– Place connector rail slightly to one side. Make sure that wiring
is not kinked or damaged.
– Unscrew bolts -arrow- for ignition coils.
