Left cockpit fuse assignment

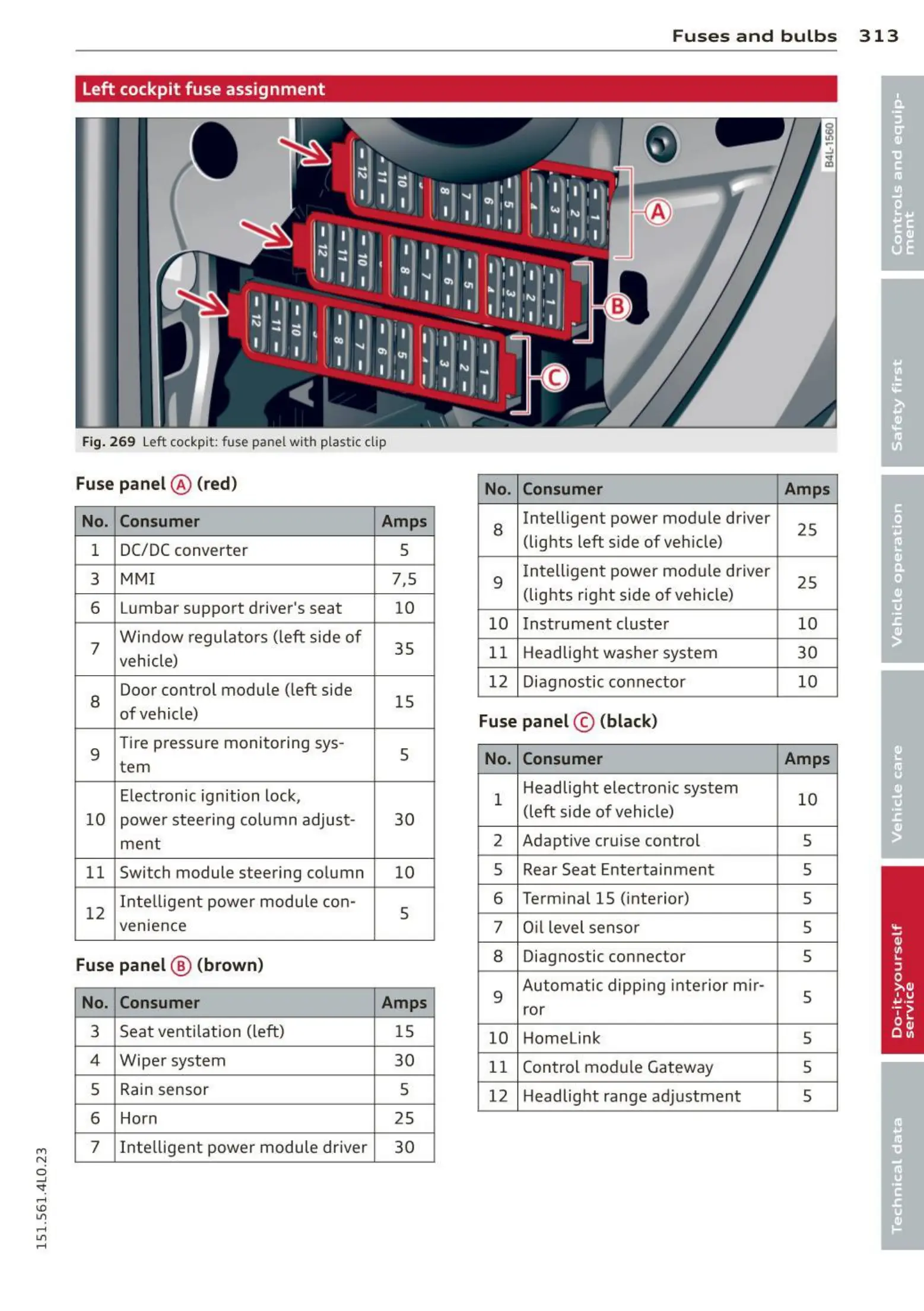

Fig. 269 Left cockpit: fuse panel with plast ic clip
Fuse panel @ (red)
No. Consumer Amps
1
DC/DC converter
5
3
MMI 7,5
6
Lumbar support driver's seat
10
7
Window regula tors (left side of
35
vehicle)
8
Door control module (left side
15
of vehicle)
9
Tire pressu re monitoring sys-
tern
5
Electronic ignition lock,
10 power stee ring column adjust- 30
ment
11
Switch module steering column
10
12
Intellig ent power module con -
5
venience
Fuse panel @ (brown)
No.
Consumer Amps
3
Seat ventilation (left)
15
4 Wiper system
30
5 Rain sensor 5
6
Horn
25
7
Inte lligent power module driver
30
Fuses and bulbs 313
No. Consumer Amps
8
Intell igent power module driver
25
(lights left s ide of veh icle)
9
Intelligent powe r modu le driver
25
(lights right side of vehicle)
10 Instrument cluste r 10
11
Headlight washer system
30
12 Diagnost ic connector 10
Fuse panel © (black)
No. Consumer Amps
1
Head light electron ic system
10
(left side of vehicle)
2
Adaptive cruise control
5
5 Rear Seat Ente rta inmen t
5
6
Term inal 15 (interior)
5
7 Oil level sensor
5
8
Diagnostic connector
5
9
Automatic dipp ing interior m ir-
5
ror
10 Home link
5
11 Control modul e Gat eway 5
12
Headlig ht range adju stmen t
5
