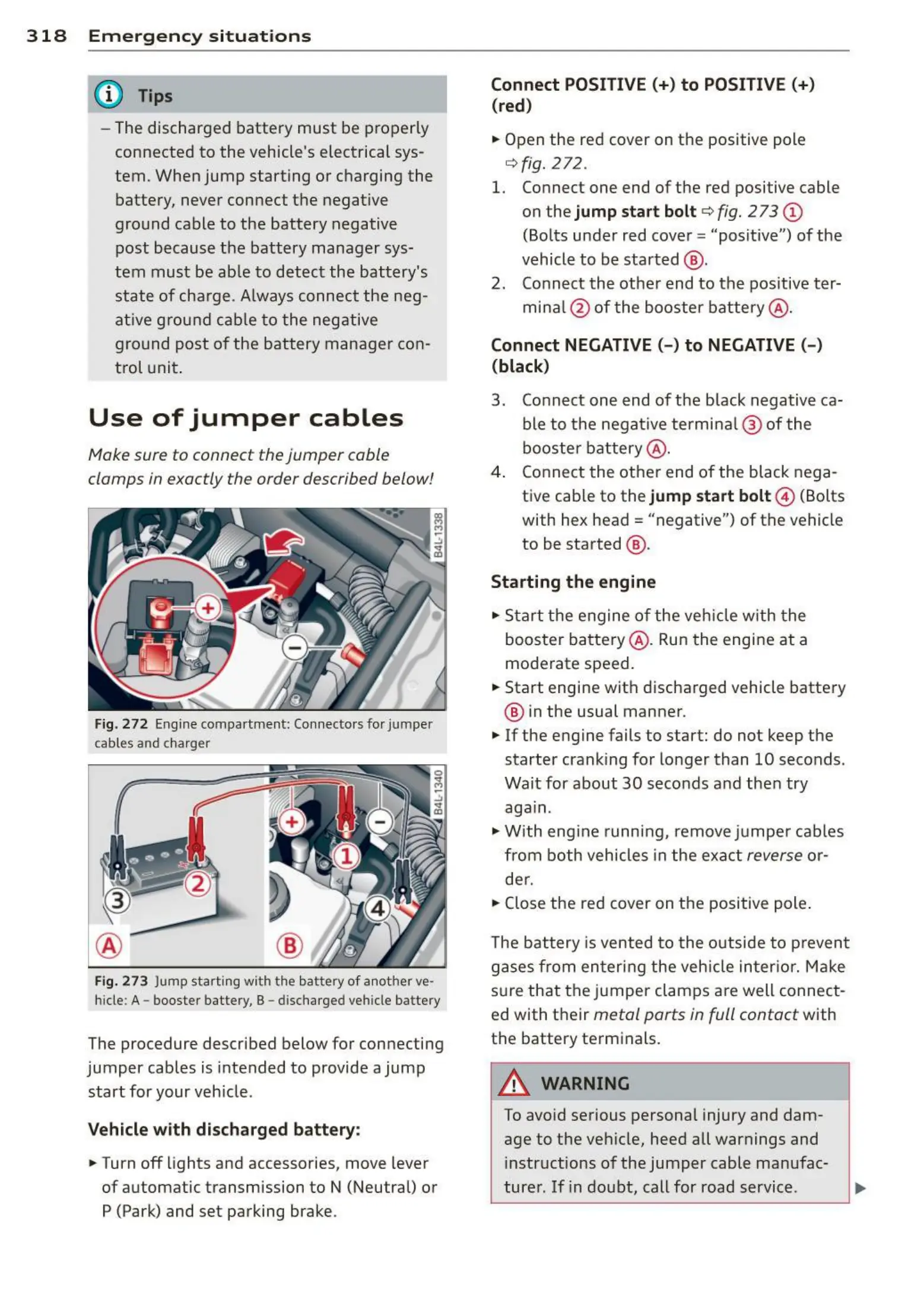

318 Emergency situations
@ Tips
- The discharged battery must be properly
connected to the vehicle's electrical sys-
tem. When jump starting or charging the
battery, never connect the negative
ground cable to the battery negative
post because the battery manager sys-
tem must be able to detect the battery's
state of charge . Always connect the neg-
ative ground cable to the negative
ground post of the battery manager con-
trol unit.
Use of jumper cables
Make sure to connect the jumper coble
clomps in exactly the order described below!
Fig. 272 Engine compartment: Conne cto rs for jum pe r
cables and charger
®
Fig. 273 Jump sta rt ing with the bat t ery of anot her ve-
hicle : A - booster battery, B - discharge d vehicle batte ry
The procedure described below for connecting
jumper cables is intended to provide a jump
start for your veh icle .
Vehicle with discharged battery:
.. Turn
off lights and accessories, move lever
of automatic transmission to N (Neutral) or
P (Park) and set parking brake.
Connect POSITIVE(+) to POSITIVE(+)
(red)
.. Open the red cover on the pos itive pole
¢ fig. 272 .
1. Connect one end of the red positive cable
on the jump start bolt
c::;, fig. 2 73 @
(Bolts under red cover = "positive") of the
vehicle to be started @ .
2. Connect the other end to the positive ter-
mina l @ of the booster battery @ .
Connect NEGATIVE (-) to NEGATIVE (-)
(black)
3. Connect one end of the black negative ca-
ble to the negat ive terminal @ of the
booster battery @ .
4. Connect the other end of the black nega-
tive cable to the jump start bolt @ (Bolts
with hex head= "negative") of the vehicle
to be started @ .
Starting the engine
.. Start the engine of the veh icle with the
booster battery @ . Run the engine at a
moderate speed .
.. Start engine with discharged vehicle battery
@ in the usual manner.
.. If the engine fails to start: do not keep the
starter crank ing for longer than 10 seconds .
Wait for about 30 seconds and then try
again .
""With engine running, remove jumper cables
from both vehicles in the exact
reverse or·
de r .
.. Close the red cover on the positive pole.
The battery is vented to the outside to prevent
gases from entering the veh icle interior. Make
sure that the jumper clamps are well connect-
ed with their
metal ports in full contact with
the battery terminals.
A WARNING
-
To avoid serious persona l injury and dam-
age to the vehicle, heed all warnings and
instructions of the jumper cable manufac-
turer . If in doubt, call for road service . ,..
