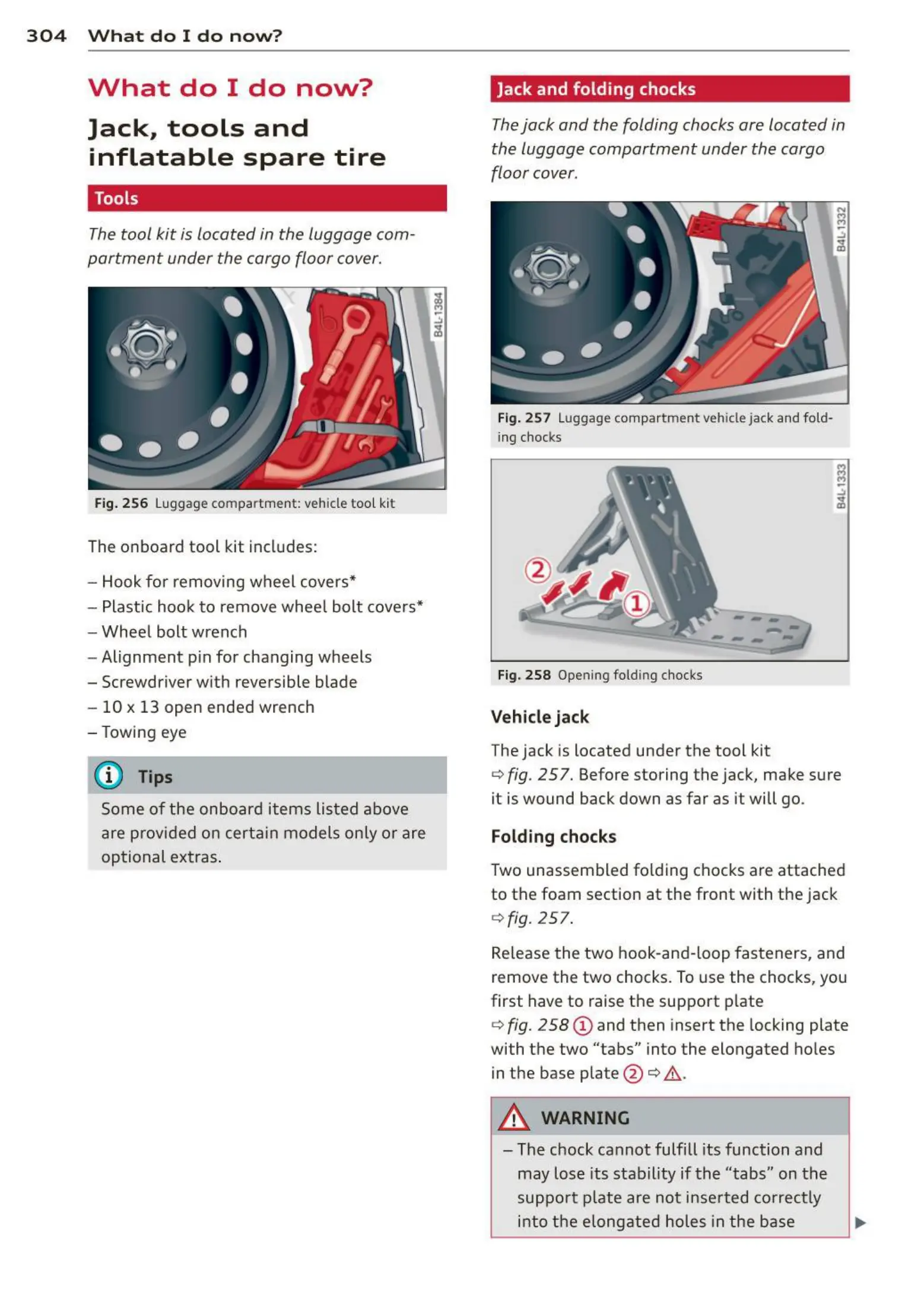

304 What do I do now ?
What do I do now?
Jack, tools and
inflatable spare tire
Tools
The tool kit is located in the luggage com-
partment under the cargo floor cover.
Fig. 256 Luggage compart ment: vehicle too l kit
The onboard tool kit includes:
- Hook for removing wheel covers*
- Plastic hook to remove wheel bolt covers*
- Wheel bolt wrench
- Alignment pin for changing wheels
- Screwdriver with reversible blade
- 10 x 13 open ended wrench
-Towing eye
(D Tips
Some of the onboard items listed above
are provided on certa in models only or are
optional extras .
Jack and folding chocks
The jack and the folding chocks are located in
the luggage compartment under the cargo
floor cover.
Fig. 257 Luggage compartment vehicle jack and fo ld-
ing chocks
---
--........ -
Fig. 258 Opening fold ing chocks
Vehicle jack
The jack is located under the tool kit
<=>fig. 257. Before storing the jack, make sure
it is wound back down as far as it will go.
Folding chocks
Two unassembled fo lding chocks are attached
to the foam section at the front with the jack
<=>fig. 257.
Release the two hook-and-loop fasteners, and
remove the two chocks. To use the chocks, you
first have to raise the support plate
<=> fig. 258 (!) and then insert the locking plate
with the two "tabs" into the elongated holes
in the base plate @ <=>&..
A WARNING
-
- The chock cannot fulfill its function and
may lose its stability if the "tabs" on the
support plate are not inserted correctly
into the elongated holes in the base
