SSP217_011

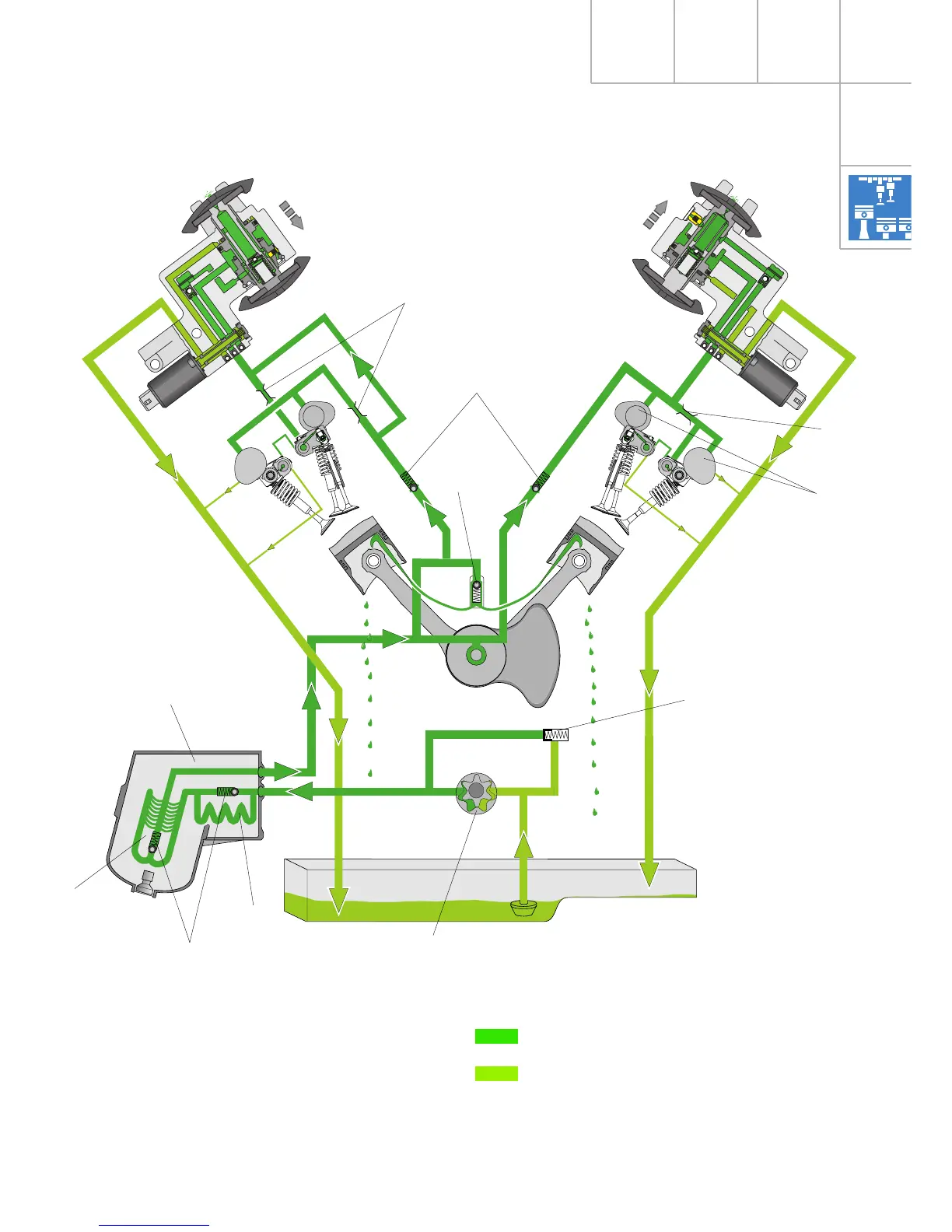

Throttle
Cylinder bank 1
Oil retention valves
Spray jet valve
Bypass valves
Oil filter module
Oil sump
Oil pressure control
valve
Camshaft
Cylinder bank 2
Oil flow (pressurised)
Oil flow (non-pressurised)
Throttle
Duocentric oil pump
Filter element
Oil cooler
Slight modifications have been made to the
oil circuit in the cylinder heads.
The oil circuit for cylinder bank 2 shown in the
illustration is the oil circuit that has been
used since the introduction of the new model.
Cylinder bank 1 shows the modified oil
circuit.
