12
Engine - Mechanics

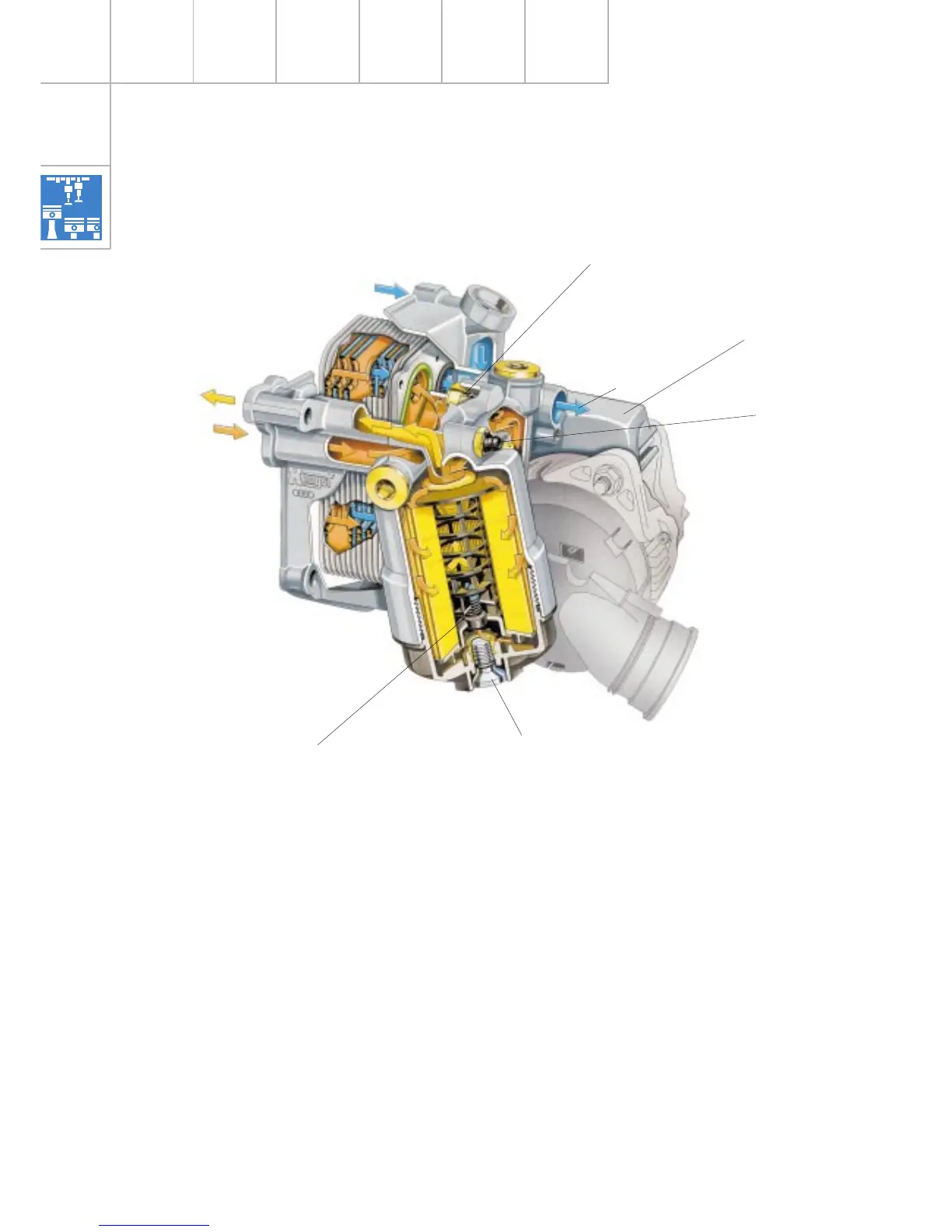

The oil filter module contains the oil filter
and oil cooler. It is also used to hold the
alternator.
SSP217_013
Oil cooler bypass valve
Alternator mount (part
of oil module)
Coolant supply
Coolant
return
Oil supply
Oil return
Oil filter module
(A8)
Oil pressure switch
Drain plug
Filter bypass
valve
As was previously the case, the oil cooler is
designed as a coolant-to-oil heat exchanger.
The “housing-less“ oil cooler is bolted to the
oil filter module using an O-ring seal to form a
single unit.
