Audi V8 User Manual

13
SSP217_014

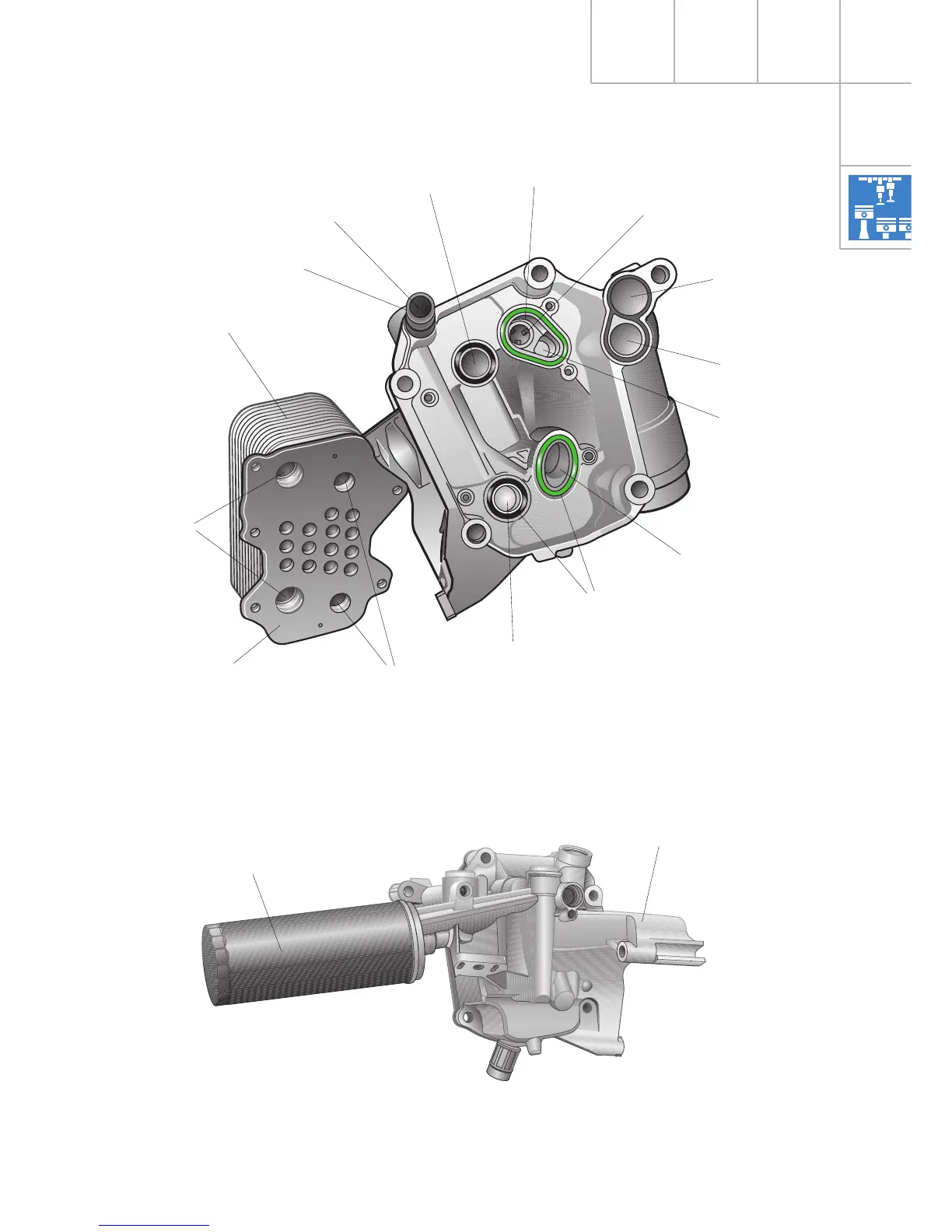

Oil cooler
O-ring seal
Sealing surface
(Oil cooler)
Coolant supply
(from engine)
Oil duct
Coolant
return
Oil cooler bypass valve
Oil return
(to engine)
Oil supply
(from engine)
Oil cooler
return
Oil cooler
supply
Plastic con-
nection
SSP217_003
Oil filter cartridge
Alternator
holder
For space reasons, the A6 oil filter module is
fitted with an oil filter cartridge.
Oil filter module (A8)
Oil filter module (A6)
Engine oil
Coolant
Coolant supply

Audi V8 Specifications

General

Configuration Type	V8
Aspiration	Naturally Aspirated
Displacement	3562 cm3
Power	184 KW
Torque	340 Nm
Fuel System	Fuel injection
Configuration	V
Displacement Range	3.6
Cylinder Bore	81 mm
Stroke	86.4 mm
Valvetrain	DOHC
Torque Output	251 lb-ft
