RACK MOUNTING RACK MOUNTING
It is not advised to run the unit in a rack above or below hot units such as valve
outboard and multichannel AD/DA converters without suitable ventilation space
around the unit.
We would suggest a space of at least one rack unit above and below the unit.
Ensure side air vents are not covered. Additionally, do not install near any heat
sources such as radiators, heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
Caution regarding placement
EVO 16 RACK MOUNTING
EVO 16 has optional rack ears that can be claimed via arc.audient.com. These
can be attached to the sides of the unit with the contained screws.
Required:
3mm hex driver/key
Pozidriv screwdriver

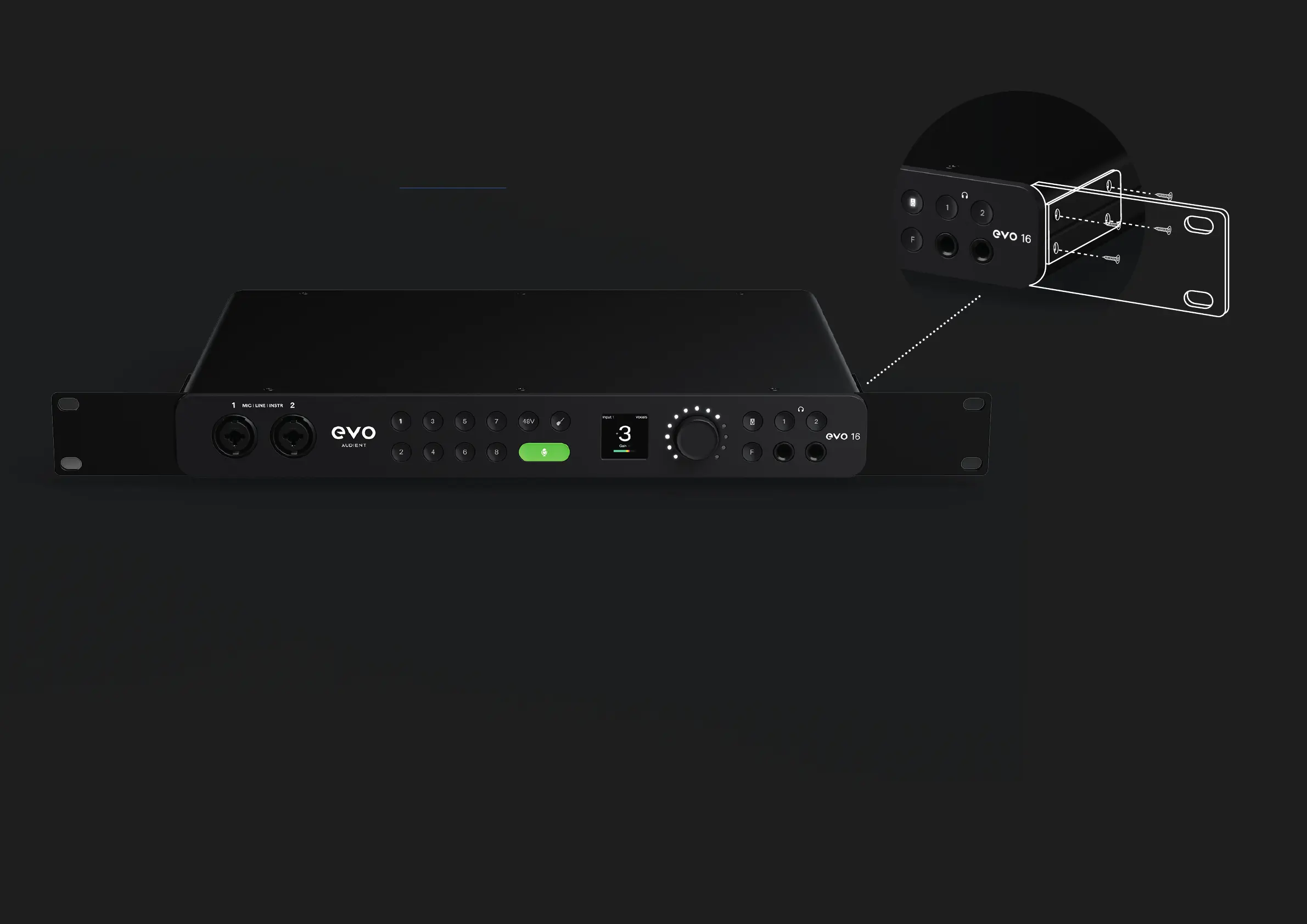

1. Use a 3mm hex driver to remove the two screws either side near the front
of the unit.
2. Position rack ear so that the four screw holes are inline with the four
holes found on the side of the EVO 16. Refer to the image above for correct
positioning. Insert the x4 M4 screws into the holes, and tighten until rm.
Repeat proccess again for other rack ear.
3. Remove the rubber feet which are located on the bottom of the EVO 16
using a Pozidriv screwdriver.
How to install the rack mount ears
