Graphs of Typical Digital Domain Performance

Digital Analyzer Chapter 6: Specifications

Getting Started with Your 2700 Series Instrument 85

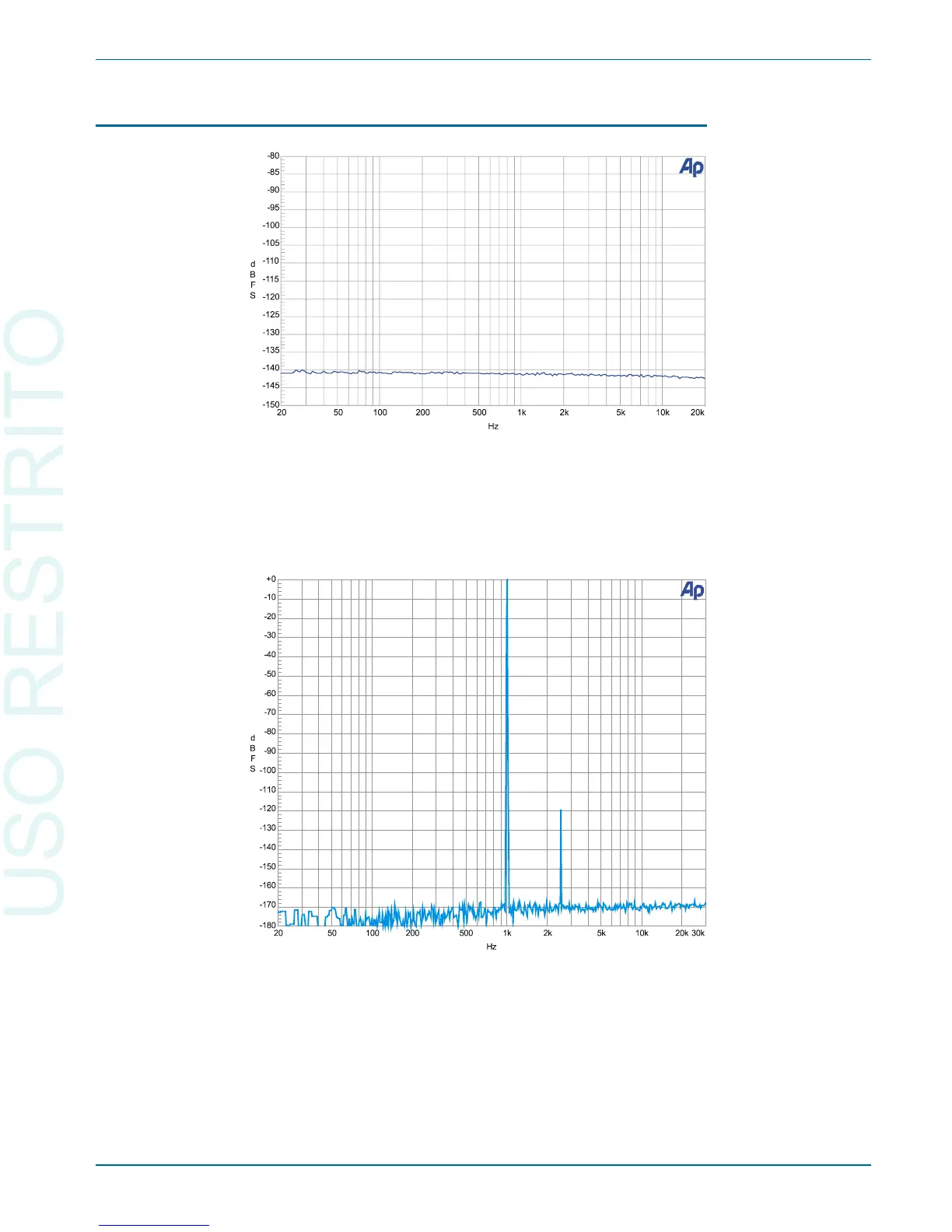

Figure 61. Typical Digital Domain system residual THD+N showing

components below –140 dB.

Figure 62. Illustration of typical Digital Domain FFT dynamic range.

Signal is 0 dB 1 kHz with a secondary signal at –120 dB and

2.5 kHz.

USO RESTRITO
