Audio Technica AT-LP120XUSB User Manual

10

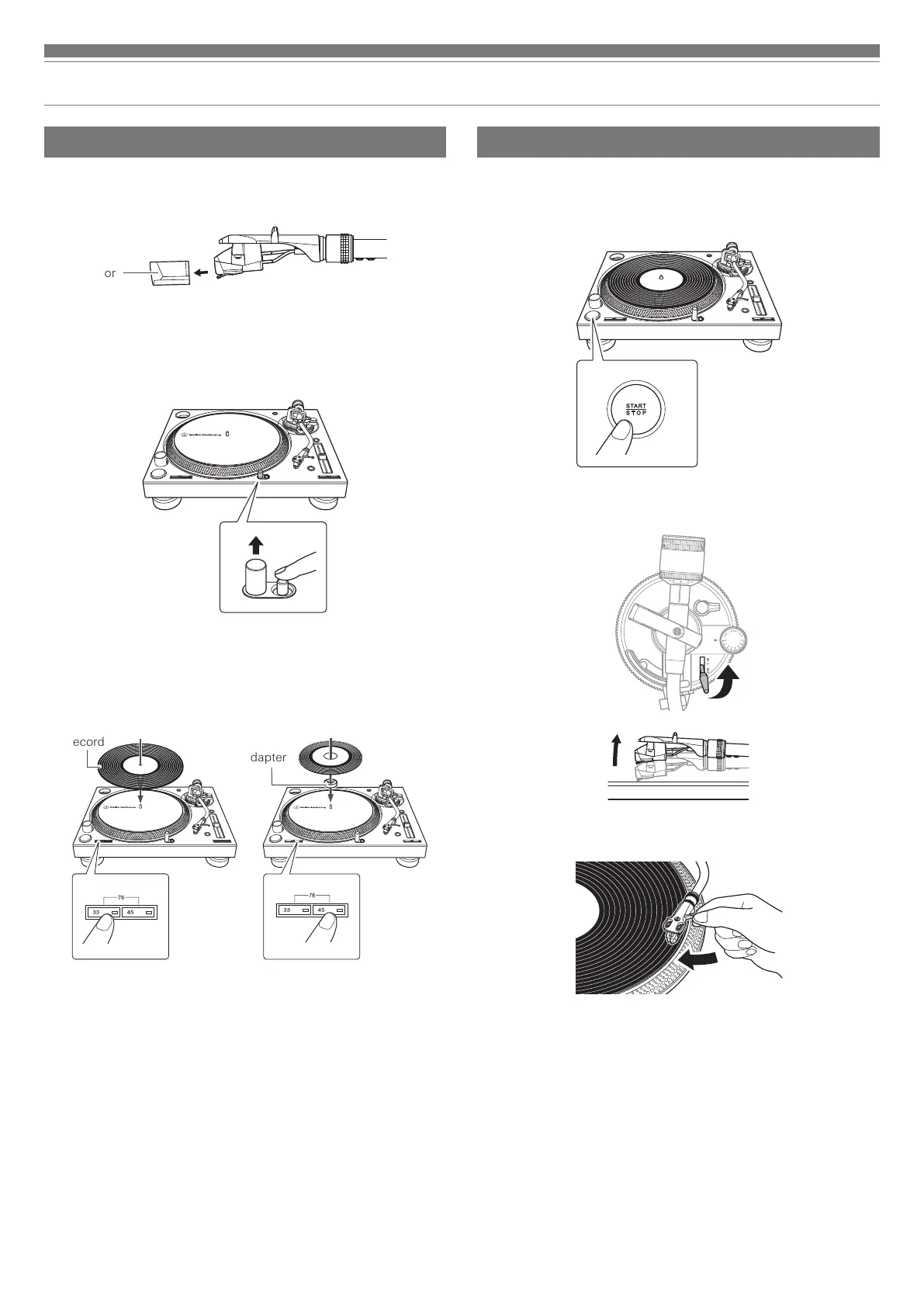

Playing a record
Before playing a record
1. Remove the cartridge’s protector.
• If the tonearm is fixed to the tonearm rest, unlatch the clamp.
2. Turn the power dial to the ON position.
• The speed selector and strobe illuminator will light up.
3. If desired, push the button to use the stylus target light for
illumination of the stylus tip position on the record.
4. Place the record on the platter so that the center hole aligns with
the spindle.
• If playing a 45 RPM record, attach the 45 RPM adapter (see the diagram to
the right below).
5. Set the platter rotation speed (33/45/78) to match that of the
record.
• To set the platter speed for 78 RPM, press both the 33 and 45 RPM buttons
simultaneously.
Playing a record
Lower the volume of the amplifier, speakers, etc., sufficiently.
1. Press the START/STOP button.
• The platter begins to rotate.
2. Raise the tonearm by lifting the tonearm lift control lever to the
UP position.
3. Position the tonearm over the desired location (groove) on the
record.
45-RPM
adapter
At 33-1/3 RPM At 45 RPM
Record
Protector

Audio Technica AT-LP120XUSB Specifications

General

Type	Belt-drive audio turntable
Operation	Manual
Motor type	DC servo motor
Output level	240 mV
Tone control	Yes
Product color	Silver
Wow & flutter	0.2 %
Nominal speeds	33 1/3, 45, 78 RPM
Volume control	Rotary
Starting torque	1 kg/cm
Platter material	Aluminum
Signal-to-Noise Ratio (SNR)	50 dB
Shape	S-shaped tonearm
USB ports quantity	1
Cables included	RCA, USB
Power supply type	AC
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3 A
AC adapter output voltage	12 V
Power consumption (typical)	2.75 W

Weight and Dimensions

Depth	352 mm
Width	452 mm
Height	141.6 mm
Weight	8000 g
