Audio Technica AT-LPW30BK User Manual

4

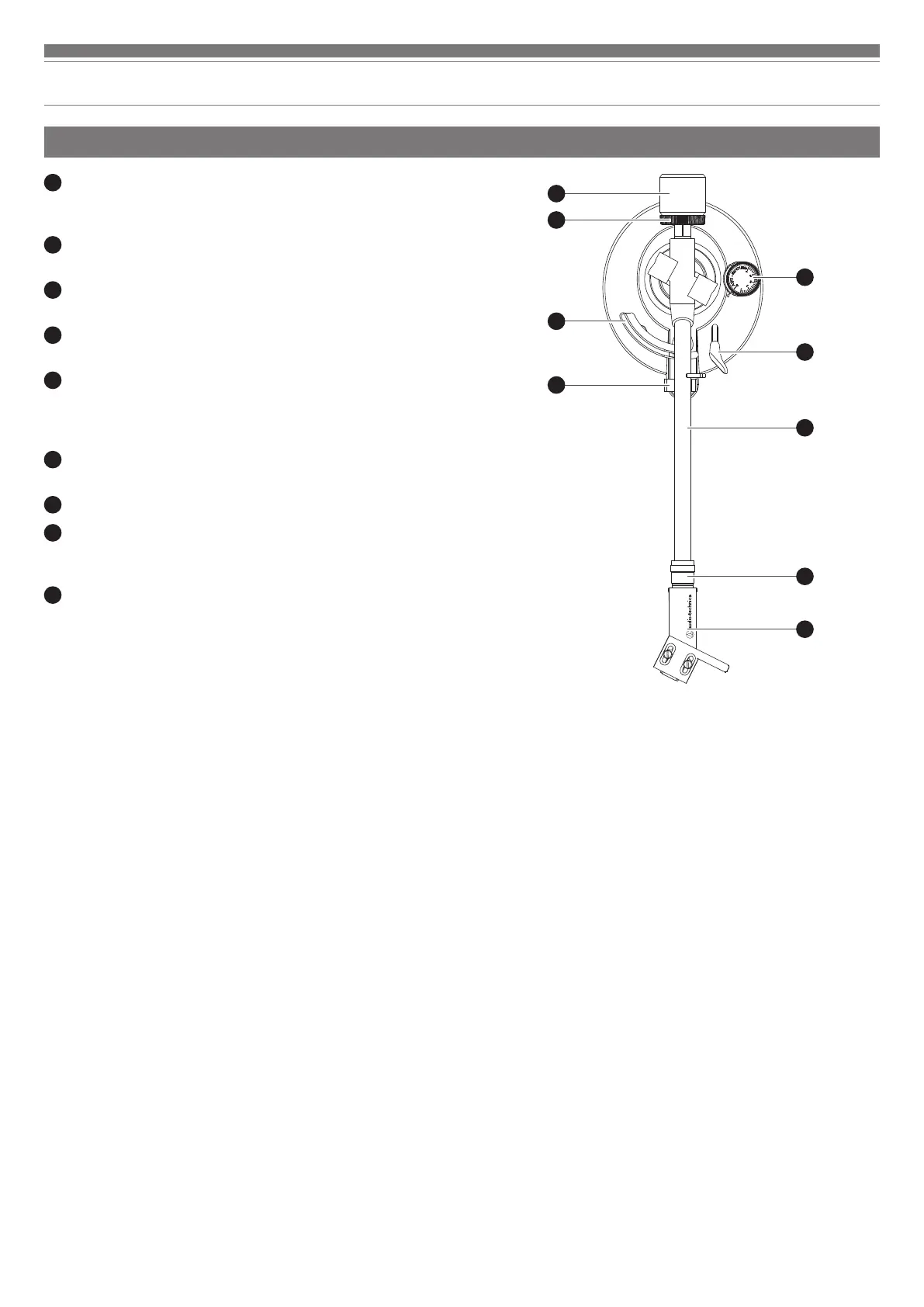

Part names and functions
Tonearm
1
Counterweight
Balances the tonearm and adjusts to provide the proper tracking
force.
2
Tracking force gauge ring
Use to adjust and set the tracking force.
3
Tonearm lift
Moves the tonearm vertically to and from the face of the record.
4
Tonearm rest with clamp
Use the clamp to secure the tonearm so that it does not move.
5
Anti-skate control dial
While the record is playing, a force acts on the stylus tip to pull it
inward. This force can be counteracted by setting the same values
for anti-skate and the tracking force.
6
Tonearm lift control lever
Operates the tonearm lift.
7
Tonearm
8
Locking ring
Rotate the ring to the left (counterclockwise) to secure the
headshell. To remove the headshell, rotate the ring to the right.
9
Headshell and cartridge
The cartridge* is attached to the headshell (AT-HS4).
* AT-VM95C
4
5
7
8
9
6
1
3
2

Audio Technica AT-LPW30BK Specifications

General

Type	Belt-drive audio turntable
Operation	Manual
Output level	200 mV
Product color	Black
Wow & flutter	0.15 %
Nominal speeds	33 1/3, 45 RPM
Stylus pressure	3 g
Platter material	Aluminum
Pick-up arm length	223.6 mm
Signal-to-Noise Ratio (SNR)	60 dB
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Overhang	18.6 mm
Tracking angle	2 °
Quantity	1
45 rpm adapter	Yes
Package depth	488 mm
Package width	418 mm
Package height	192 mm
Package weight	5964 g
Country of origin	China

Weight and Dimensions

Depth	340 mm
Width	420 mm
Height	1169 mm
Weight	5000 g
