Audio Technica AT-LPW30BK User Manual

3
Part names and functions

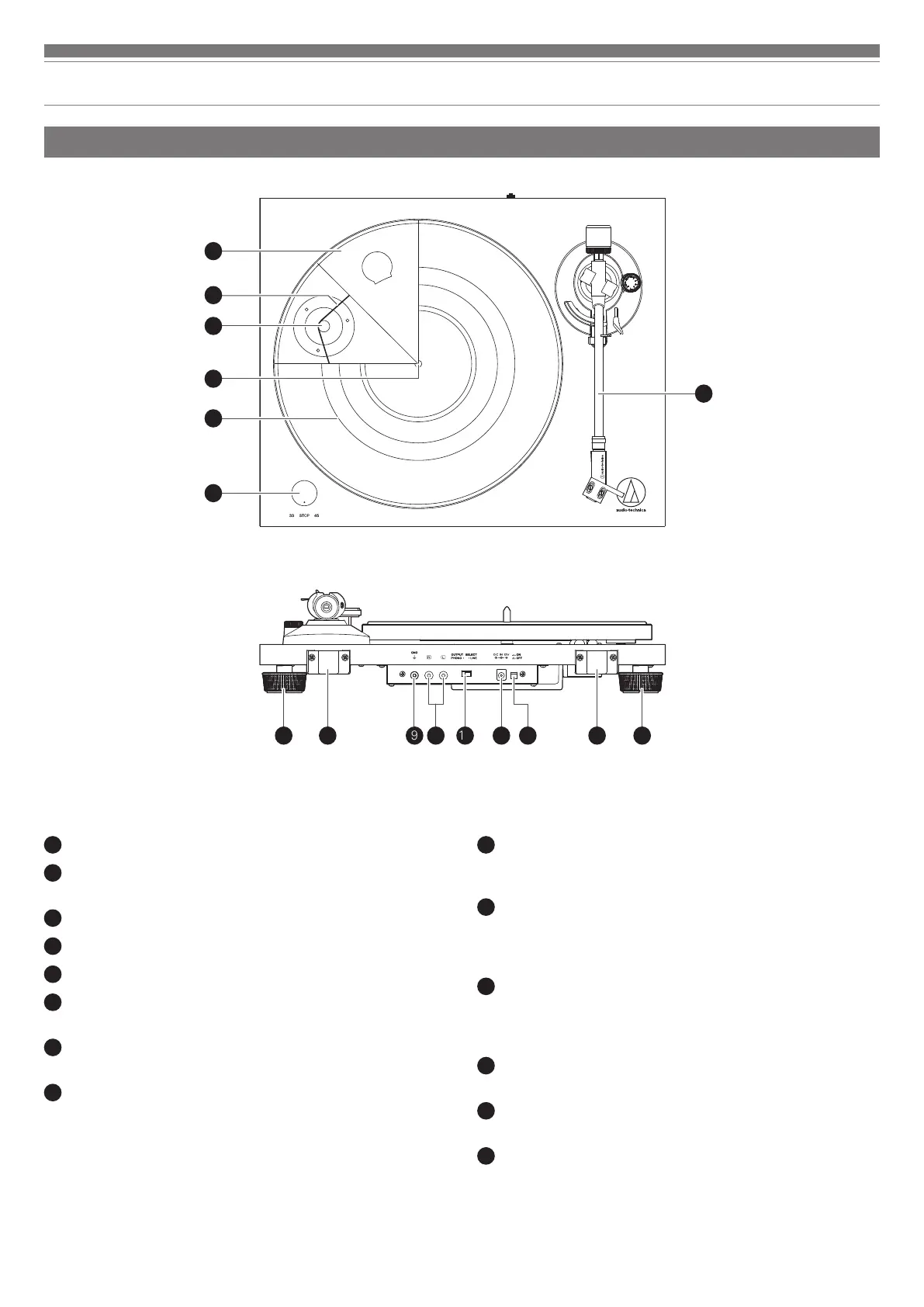

Overall diagram
9
Ground (earth) terminal
Connect the amplifier's ground (earth) terminal to this terminal
using the RCA audio cable's ground conductor.
10
Stereo output terminals
Connect the RCA audio cable. Connect it to either the amplifier's
PHONO input jack or its line input jack. The red terminal is the
right channel and the white terminal is the left channel.
11
Output selector switch
If connecting to an amplifier's PHONO input jack, set this switch to
the PHONO position. If connecting to the AUX jack of an amplifier,
set this switch to the LINE position.
12
Power input jack
Connect the AC adapter.
13
Power switch
Switch ON/OFF.
14
Dust cover hinge holder
1
Platter
2
Drive belt
Installation is required for operation.
3
Motor pulley
4
Spindle
5
Turntable mat
6
Control knob
Use to start and stop, as well as select the platter's speed.
7
Tonearm
For details, refer to “Tonearm” on p. 4.
8
Feet
Adjust the level of the product.
8 8
7
1
2
3
4
5
6
9 11 12 1414 1310

Audio Technica AT-LPW30BK Specifications

General

Type	Belt-drive audio turntable
Operation	Manual
Output level	200 mV
Product color	Black
Wow & flutter	0.15 %
Nominal speeds	33 1/3, 45 RPM
Stylus pressure	3 g
Platter material	Aluminum
Pick-up arm length	223.6 mm
Signal-to-Noise Ratio (SNR)	60 dB
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Overhang	18.6 mm
Tracking angle	2 °
Quantity	1
45 rpm adapter	Yes
Package depth	488 mm
Package width	418 mm
Package height	192 mm
Package weight	5964 g
Country of origin	China

Weight and Dimensions

Depth	340 mm
Width	420 mm
Height	1169 mm
Weight	5000 g
