3
Part names and functions

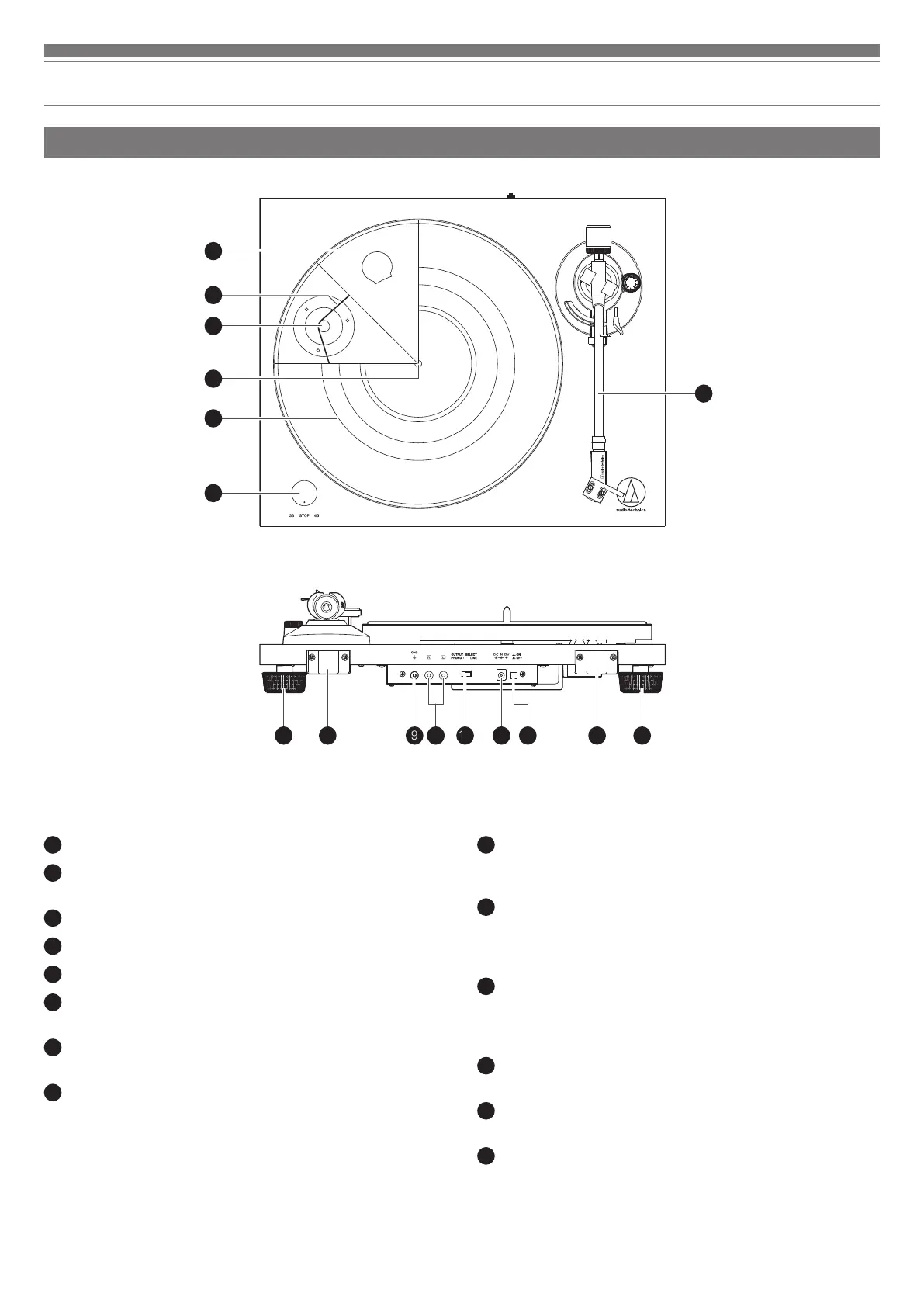

Overall diagram
9
Ground (earth) terminal
Connect the amplifier's ground (earth) terminal to this terminal
using the RCA audio cable's ground conductor.
10
Stereo output terminals
Connect the RCA audio cable. Connect it to either the amplifier's
PHONO input jack or its line input jack. The red terminal is the
right channel and the white terminal is the left channel.
11
Output selector switch
If connecting to an amplifier's PHONO input jack, set this switch to
the PHONO position. If connecting to the AUX jack of an amplifier,
set this switch to the LINE position.
12
Power input jack
Connect the AC adapter.
13
Power switch
Switch ON/OFF.
14
Dust cover hinge holder
1
Platter
2
Drive belt
Installation is required for operation.
3
Motor pulley
4
Spindle
5
Turntable mat
6
Control knob
Use to start and stop, as well as select the platter's speed.
7
Tonearm
For details, refer to “Tonearm” on p. 4.
8
Feet
Adjust the level of the product.
8 8
7
1
2
3
4
5
6
9 11 12 1414 1310
