Audio Technica AT-LPW50PB User Manual

4
Part names and functions

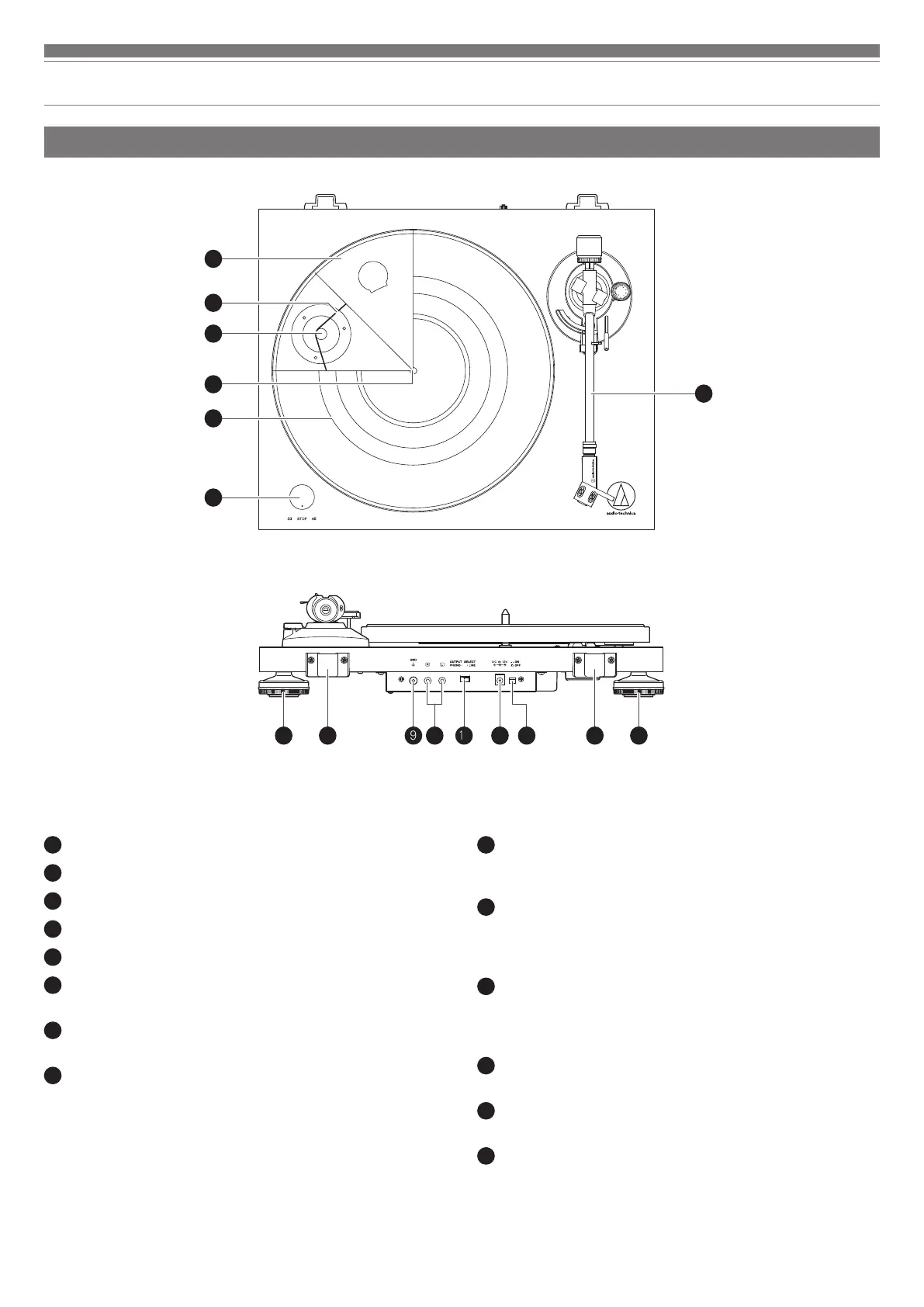

Overall diagram
9
Ground (earth) terminal
Connect the amplifier's ground (earth) terminal to this terminal
using the RCA audio cable's ground conductor.
10
Stereo output terminals
Connect the RCA audio cable. Connect it to either the amplifier's
PHONO input jack or its LINE input jack. The red terminal is the
right channel and the white terminal is the left channel.
11
Output selector switch
If connecting to an amplifier's PHONO input jack, set this switch to
the PHONO position. If connecting to the AUX jack of an amplifier,
set this switch to the LINE position.
12
Power input jack
Connect the AC adapter.
13
Power switch
Switch ON/OFF.
14
Dust cover hinge holder
Attachment points for dust cover hinges.
1
Platter
2
Drive belt
3
Motor pulley (brass-colored)
4
Spindle
5
Rubber mat
6
Control knob
Use to start and stop, as well as select the platter's speed.
7
Tonearm
For details, refer to “Tonearm” on p. 5.
8
Feet
Adjust the level of the product.
8 8
7
1
2
3
4
5
6
9 11 12 1414 1310

Audio Technica AT-LPW50PB Specifications

Turntable Specifications

type	Belt-drive manual turntable
motor	DC servo with Active Speed Stabilization
drive method	Belt drive
speeds	33-1/3 RPM, 45 RPM
turntable platter	Aluminum Die Casting

Tonearm Specifications

type	Static balanced straight carbon tonearm
effective length	223.6 mm
overhang	18.6 mm
maximum tracking error angle	Less than 2.0°
stylus pressure adjustment	0 to 3.0 g range

Cartridge and Headshell Specifications

cartridge model	AT-VM95E BK
cartridge type	VM
recommended load	47, 000 ohms impedance
output voltage	4.0 mV
tracking force range	1.8 to 2.2 g

General Specifications

power supply requirements	100 to 240 V, 50/60 Hz, 0.5 A Max.
power consumption	1.3 W
ac adapter	12 V, 0.5 A
dimensions	420 mm × 340 mm × 126 mm
weight	5.56 kg
