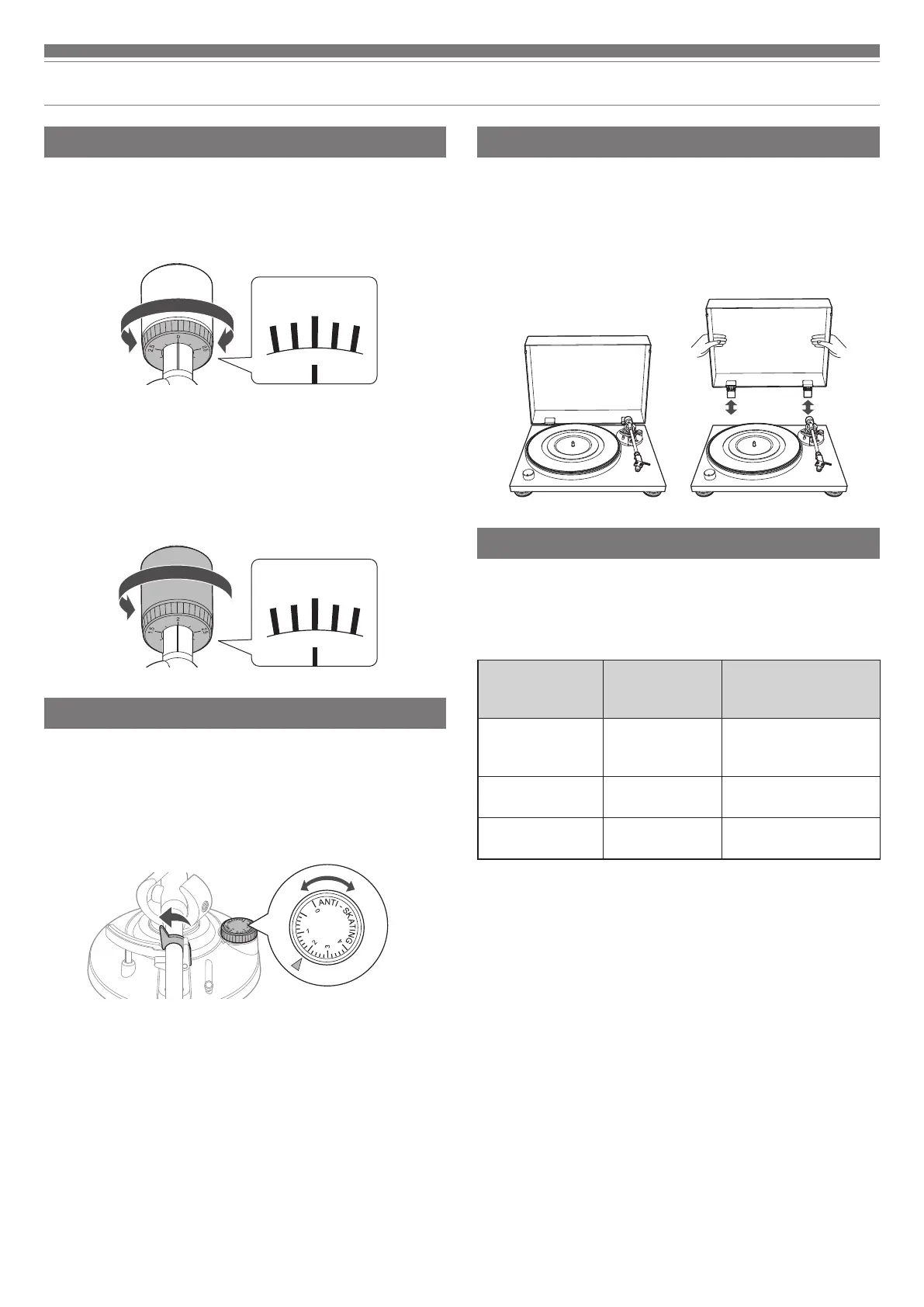

Preparation for use
Setting tracking force
1. While supporting the counterweight so that it does not move,
turn the tracking force gauge ring so that its “0” position lines up
with the centerline on the back of the tonearm.
• The tracking force is not adjusted simply by turning the tracking force
gauge ring.
0
2. Turn the counterweight and the tracking force gauge ring
together counterclockwise (to the left) until the centerline value
matches the recommended tracking force value for the cartridge
you are using.
• Refer to the cartridge maker’s specifications for the recommended tracking
force value.
• The tracking force value for the cartridge provided with the product is 2.0 g.
2
Setting the anti-skate adjustment
While the record is playing, a force acts on the stylus tip to pull it
inward. This force can be counteracted by setting the same values for
anti-skate and the tracking force.
1. Adjust the anti-skate control dial to have the same value as the
tracking force value.
• The tracking force value for the cartridge provided with the product is 2.0 g.
Installing/removing the dust cover
The dust cover is designed to protect the product's sensitive
components when the product is not in use.
When attaching the dust cover, insert the dust cover hinges into the
two dust cover hinge holders on the back of the body. When removing
the dust cover, open the dust cover first, and then slowly pull the dust
cover out from the dust cover hinge holders.
For best performance, remove the dust cover when playing records.
Setting output selector switch
This product has a built-in phono equalizer function. You can use the
product, even if you do not have a phono amplifier or connectable
equipment with a built-in phono amplifier, by connecting an active
speaker, etc.
Use the output selector switch to set the output, as shown below.
Connectable
equipment being
used
Position of
output selector
switch
Where to connect the
RCA audio cable
Device with phono
input
PHONO Phono input jack and
ground (earth) terminal of
connectable equipment
Device without
phono input
LINE AUX or line input jack of
connectable equipment
PC sound card LINE Sound card's line input
jack*
* An audio adapter (sold separately) may be required to connect the
RCA audio cable to the PC sound card's LINE input jack.

Audio Technica AT-LPW50PB Specifications

Turntable Specifications

type	Belt-drive manual turntable
motor	DC servo with Active Speed Stabilization
drive method	Belt drive
speeds	33-1/3 RPM, 45 RPM
turntable platter	Aluminum Die Casting

Tonearm Specifications

type	Static balanced straight carbon tonearm
effective length	223.6 mm
overhang	18.6 mm
maximum tracking error angle	Less than 2.0°
stylus pressure adjustment	0 to 3.0 g range

Cartridge and Headshell Specifications

cartridge model	AT-VM95E BK
cartridge type	VM
recommended load	47, 000 ohms impedance
output voltage	4.0 mV
tracking force range	1.8 to 2.2 g

General Specifications

power supply requirements	100 to 240 V, 50/60 Hz, 0.5 A Max.
power consumption	1.3 W
ac adapter	12 V, 0.5 A
dimensions	420 mm × 340 mm × 126 mm
weight	5.56 kg
