CONTROL ROOM MODULE
Hook-Ups
As stated before, all user wiring to and from the CRS-55 module takes
place at a DB-25 multi-pin connector mounted at the top of the module.
DB-25 Connector — Audio
Handles module’s External Stereo inputs and studio, headphone, and
control room outputs. All audio signals are analog stereo.
Pin 25 – Ext Lt In SH
Pin 24 – Ext Lt In HI
Pin 12 – Ext Lt In LO
Pin 11 – Ext Rt In SH
Pin 10 – Ext Rt In HI
Pin 23 – Ext Rt In LO
Pin 22 – St Lt Out SH
Pin 21 – St Lt Out HI
Pin 9 – St Lt Out LO
Pin 8 – St Rt Out SH
Pin 7 – St Rt Out HI
Pin 20 – St Rt Out LO
Pin 19 – HDPN Lt Out SH
Pin 18 – HDPN Lt Out HI
Pin 6 – N/C
Pin 5 – HDPN Rt Out SH
Pin 4 – HDPN Rt Out HI
Pin 17 – N/C
Pin 16 – CR Lt Out SH
Pin 15 – CR Lt Out HI
Pin 3 – CR Lt Out LO
Pin 2 – CR Rt Out SH
Pin 1 – CR Rt Out HI
Pin 14 – CR Rt Out LO

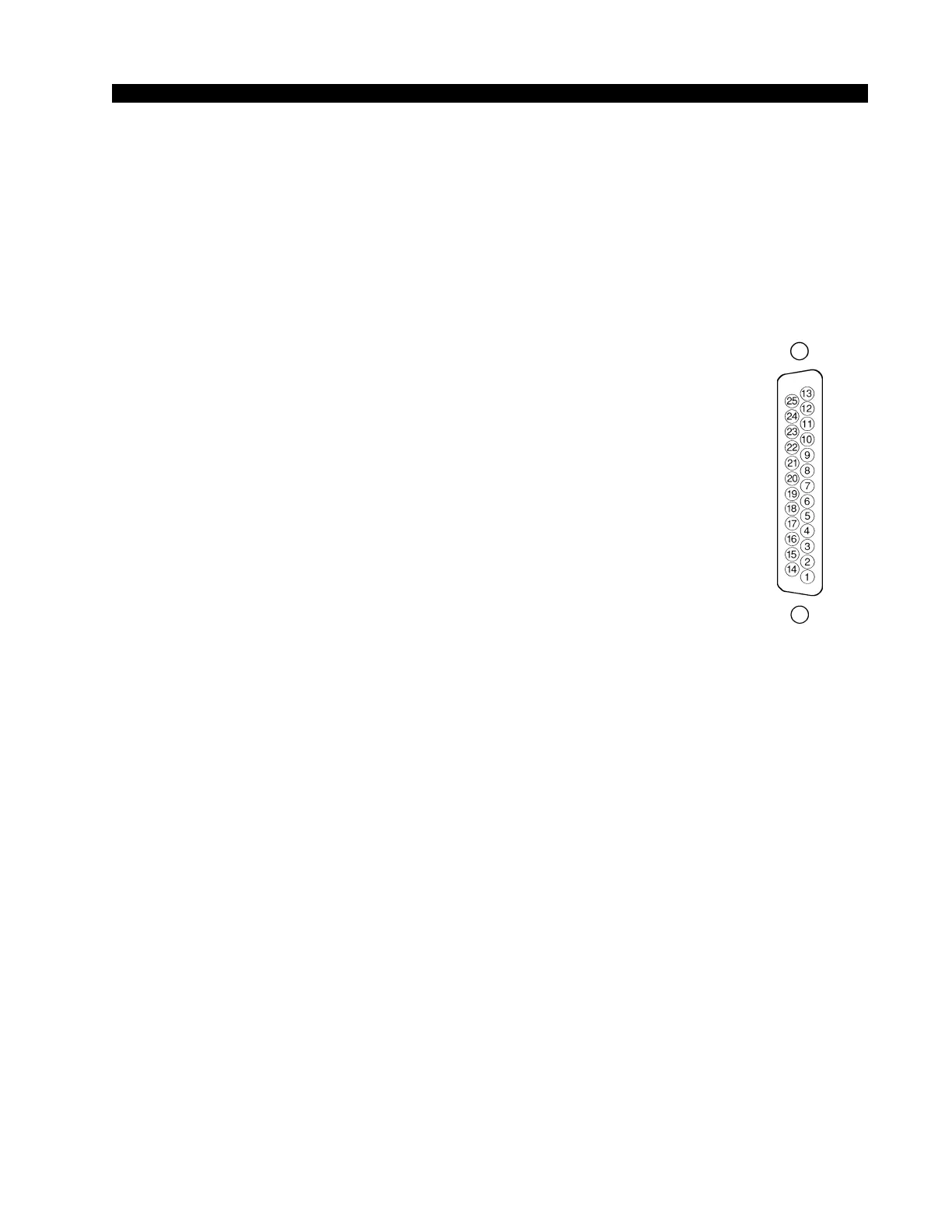

Typical DB-25
connector
