AudioArts Engineering R-55 - Hook-Ups; Left DB-25 A Connector - Audio Inputs; Left DB-25 A Connector - Audio Outputs; Right DB-25 B Connector - Audio Inputs

page 6 – 3
R-55 / Mar 2003
LINE PRESELECTOR MODULE
Hook-Ups
Left DB-25 “A” Connector - Audio Inputs 5, 6
Pin 25 – Line 5 Lt In SH
Pin 24 – Line 5 Lt In HI
Pin 12 – Line 5 Lt In LO
Pin 11 – Line 5 Rt In SH
Pin 10 – Line 5 Rt In HI
Pin 23 – Line 5 Rt In LO
Pin 22 – Line 6 Lt In SH
Pin 21 – Line 6 Lt In HI
Pin 9 – Line 6 Lt In LO
Pin 8 – Line 6 Rt In SH
Pin 7 – Line 6 Rt In HI
Pin 20 – Line 6 Rt In LO
Left DB-25 “A” Connector - Audio Outputs
Pin 19 – Line Lt Out SH
Pin 18 – Line Lt Out HI
Pin 6 – Line Lt Out LO
Pin 5 – Line Rt Out SH
Pin 4 – Line Rt Out HI
Pin 17 – Line Rt Out LO
Right DB-25 “B” Connector - Audio Inputs 1-4
Pin 25 – Line 1 Lt In SH
Pin 24 – Line 1 Lt In HI
Pin 12 – Line 1 Lt In LO
Pin 11 – Line 1 Rt In SH
Pin 10 – Line 1 Rt In HI
Pin 23 – Line 1 Rt In LO
Pin 22 – Line 2 Lt In SH
Pin 21 – Line 2 Lt In HI
Pin 9 – Line 2 Lt In LO
Pin 8 – Line 2 Rt In SH
Pin 7 – Line 2 Rt In HI
Pin 20 – Line 2 Rt In LO
Pin 19 – Line 3 Lt In SH
Pin 18 – Line 3 Lt In HI
Pin 6 – Line 3 Lt In LO
Pin 5 – Line 3 Rt In SH
Pin 4 – Line 3 Rt In HI
Pin 17 – Line 3 Rt In LO

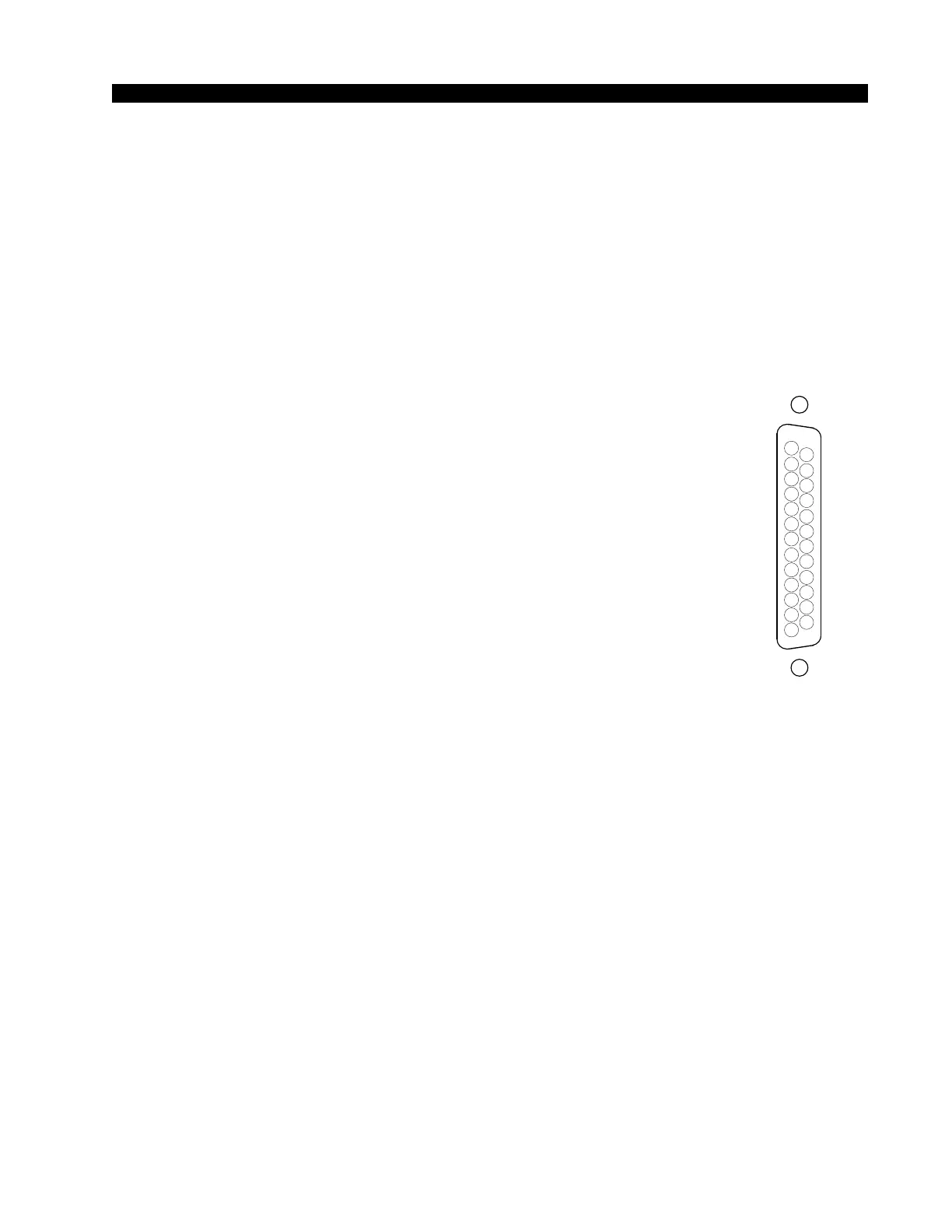

Typical DB-25
connector
9
10
11
12
13
22
23
24
25
6
7
8
19
20
21
4
5
16
17
18
1
2
3
14
15
