page 6 – 4
R-55 / Mar 2003
LINE PRESELECTOR MODULE
Pin 16 – Line 4 Lt In SH
Pin 15 – Line 4 Lt In HI
Pin 3 – Line 4 Lt In LO
Pin 2 – Line 4 Rt In SH
Pin 1 – Line 4 Rt In HI
Pin 14 – Line 4 Rt In LO

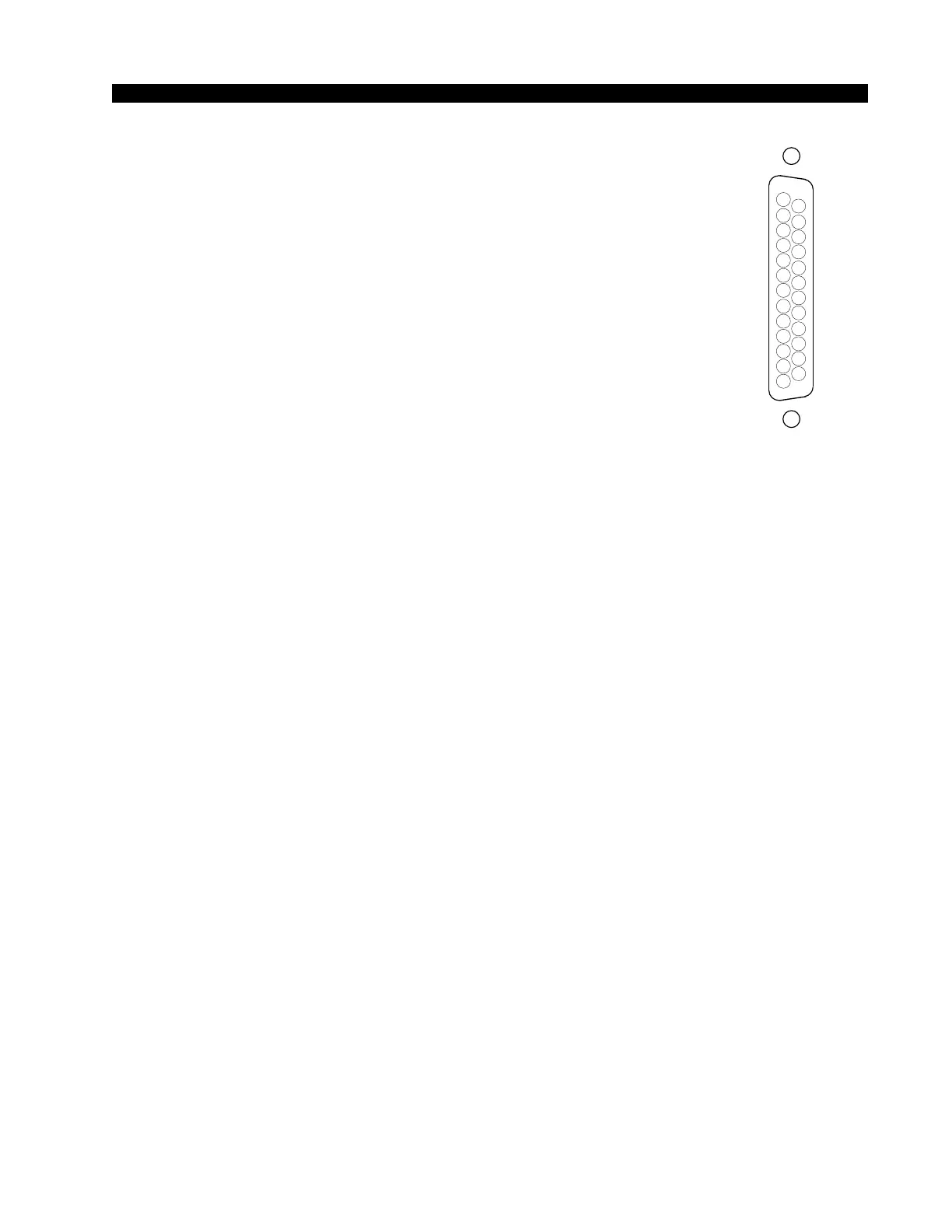

Typical DB-25
connector
9
10
11
12
13
22
23
24
25
6
7
8
19
20
21
4
5
16
17
18
1
2
3
14
15
