LINE PRESELECTOR MODULE
LS-55 Line Selector Module

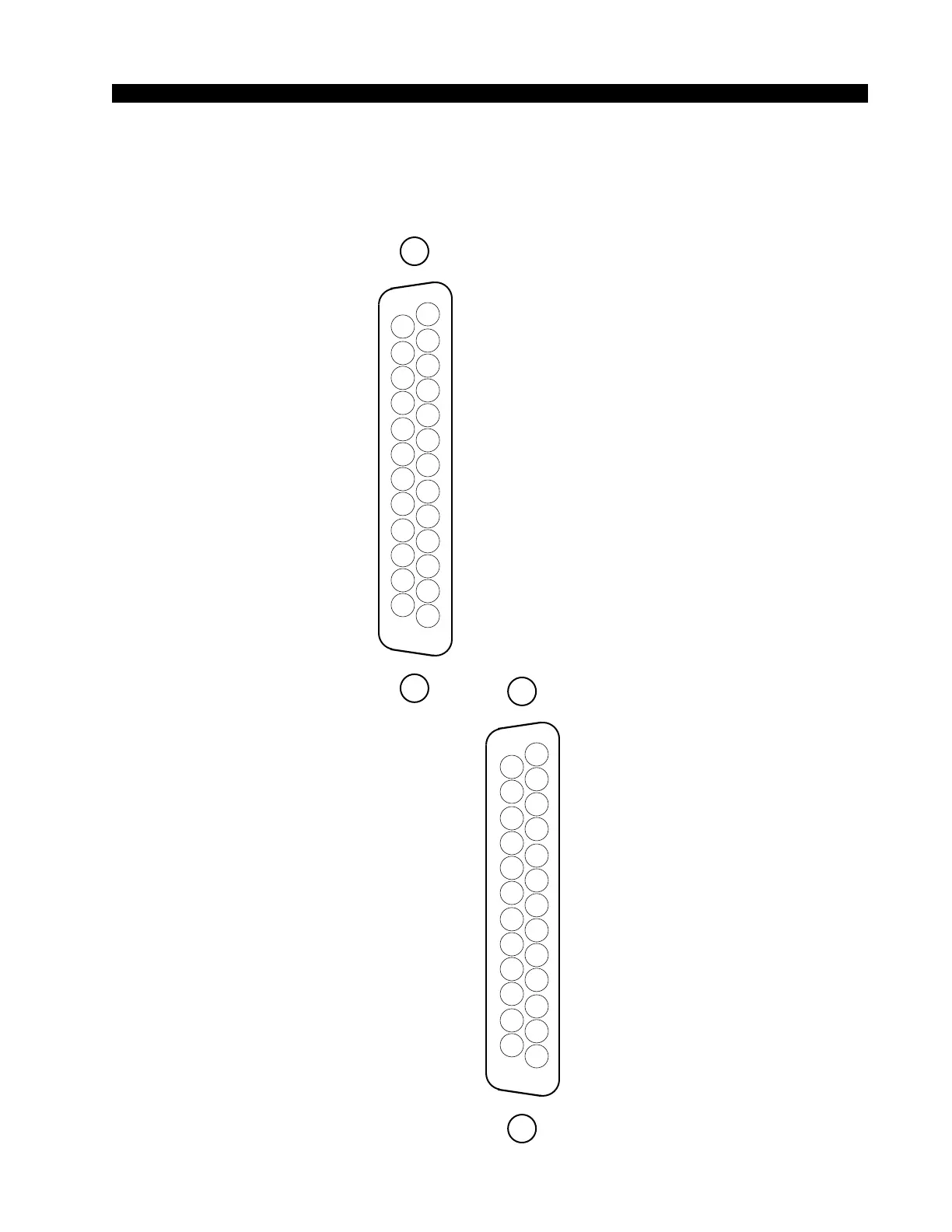

DB Connector Pinouts
9
10
11
12
13
22
23
24
25
6
7
8
19
20
21
4
5
16
17
18
1
2
3
14
15
N/C
N/C
N/C
LINE RT OUT HI
LINE RT OUT SH
LINE LT OUT LO
LINE 6 RT IN HI
LINE 6 RT IN SH
LINE 6 LT IN LO
LINE 5 RT IN HI
LINE 5 RT IN SH
LINE 5 LT IN LO
N/C
N/C
N/C
LINE RT OUT LO
LINE LT OUT HI
LINE LT OUT SH
LINE 6 RT IN LO
LINE 6 LT IN HI
LINE 6 LT IN SH
LINE 5 RT IN LO
LINE 5 LT IN HI
LINE 5 LT IN SH
N/C
9
10
11
12
13
22
23
24
25
6
7
8
19
20
21
4
5
16
17
18
1
2
3
14
15
LINE 4 RT IN HI
LINE 4 RT IN SH
LINE 4 LT IN LO
LINE 3 RT IN HI
LINE 3 RT IN SH
LINE 3 LT IN LO
LINE 2 RT IN HI
LINE 2 RT IN SH
LINE 2 LT IN LO
LINE 1 RT IN HI
LINE 1 RT IN SH
LINE 1 LT IN LO
LINE 4 RT IN LO
LINE 4 LT IN HI
LINE 4 LT IN SH
LINE 3 RT IN LO
LINE 3 LT IN HI
LINE 3 LT IN SH
LINE 2 RT IN LO
LINE 2 LT IN HI
LINE 2 LT IN SH
LINE 1 RT IN LO
LINE 1 LT IN HI
LINE 1 LT IN SH
N/C
INPUT/OUTPUT
PORTS
(Left DB-25)
INPUT PORT
S
(Right DB-25)
