page 5 – 5
RD-12 / March 99
CONTROL ROOM MODULE
AMP C Connector — Audio
This connector handles the module’s source select External Cue
inputs.
Pin 1 – Ext Cue In SH
Pin 3 – Ext Cue In HI
AMP D Connector — Audio
This connector handles the module’s source select External Stereo
inputs. The port wants to see +4dBu balanced analog stereo signals.
Pin 1 – Lt Ext 1 In SH
Pin 3 – Lt Ext 1 In HI
Pin 2 – Lt Ext 1 In LO
Pin 4 – Rt Ext 1 In SH
Pin 6 – Rt Ext 1 In HI
Pin 5 – Rt Ext 1 In LO
Pin 7 – Lt Ext 2 In SH
Pin 9 – Lt Ext 2 In HI
Pin 8 – Lt Ext 2 In LO
Pin 10 – Rt Ext 2 In SH
Pin 12 – Rt Ext 2 In HI
Pin 11 – Rt Ext 2 In LO

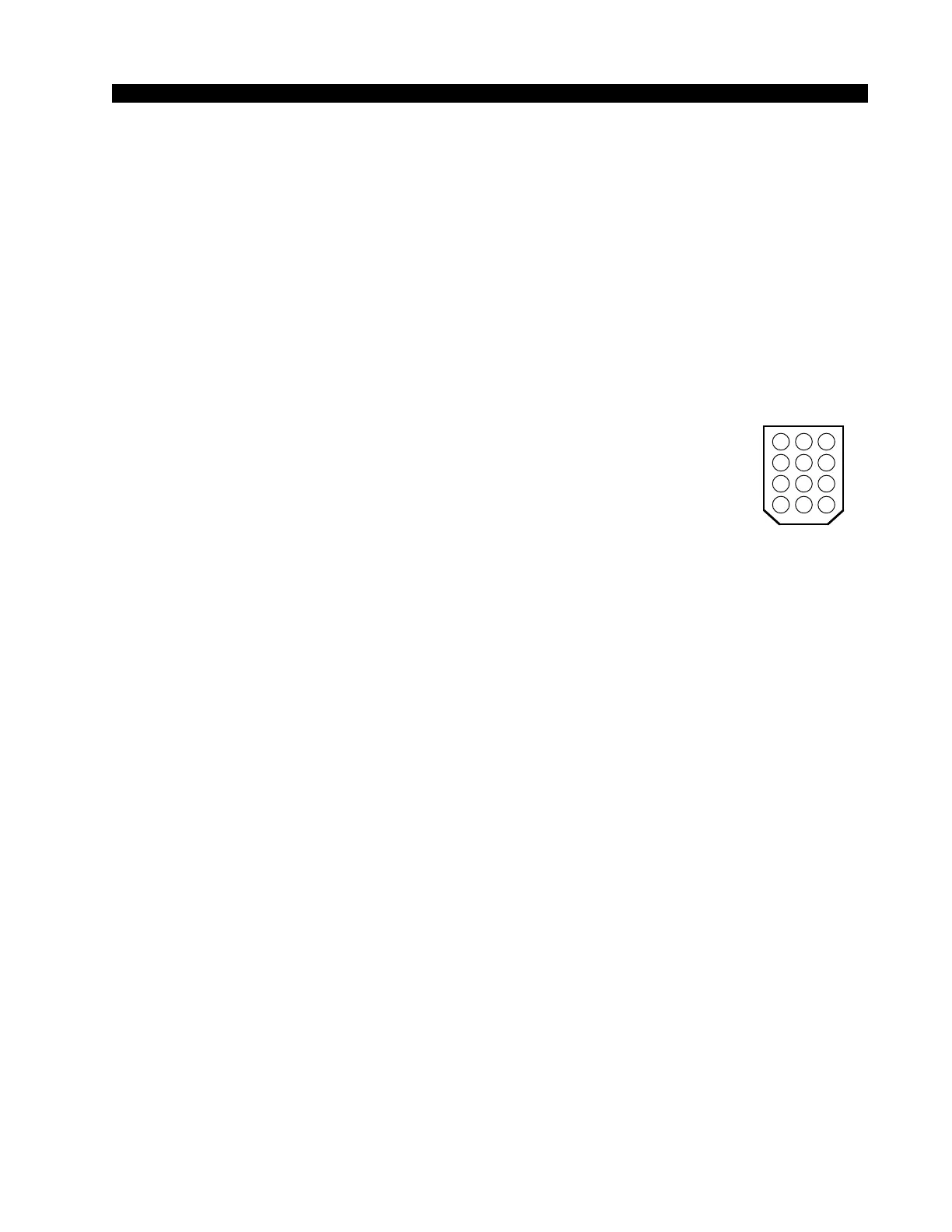

AMP #1 connector
Key diagram showing
back of typical 12-pin I/O
connector plug, with pin
numbers oriented as they
would be seen while wir-
ing. Beveled corners cor-
respond to PCB mounted
mating sockets.
5 46
8 79
11 1012
2 13
