page 6 – 5
RD-12 / March 99
STUDIO CONTROL MODULE
AMP C, D Connectors — Audio
This connector handles the module’s source select External Stereo
inputs. It also has a second set of studio outputs which are pre-level
control. All signals are +4dBu balanced analog stereo.
Pin 1 – Lt Studio 2 Pre Out SH
Pin 3 – Lt Studio 2 Pre Out HI
Pin 2 – Lt Studio 2 Pre Out LO
Pin 4 – Rt Studio 2 Pre Out SH
Pin 6 – Rt Studio 2 Pre Out HI
Pin 5 – Rt Studio 2 Pre Out LO AMP C connector
Pin 7 – Lt Studio 1 Pre Out SH
Pin 9 – Lt Studio 1 Pre Out HI
Pin 8 – Lt Studio 1 Pre Out LO
Pin 10 – Rt Studio 1 Pre Out SH
Pin 12 – Rt Studio 1 Pre Out HI
Pin 11 – Rt Studio 1 Pre Out LO
Pin 1 – Lt Ext 1 In SH
Pin 3 – Lt Ext 1 In HI
Pin 2 – Lt Ext 1 In LO
Pin 4 – Rt Ext 1 In SH
Pin 6 – Rt Ext 1 In HI
Pin 5 – Rt Ext 1 In LO AMP D connector
Pin 7 – Lt Ext 2 In SH
Pin 9 – Lt Ext 2 In HI
Pin 8 – Lt Ext 2 In LO
Pin 10 – Rt Ext 2 In SH
Pin 12 – Rt Ext 2 In HI
Pin 11 – Rt Ext 2 In LO

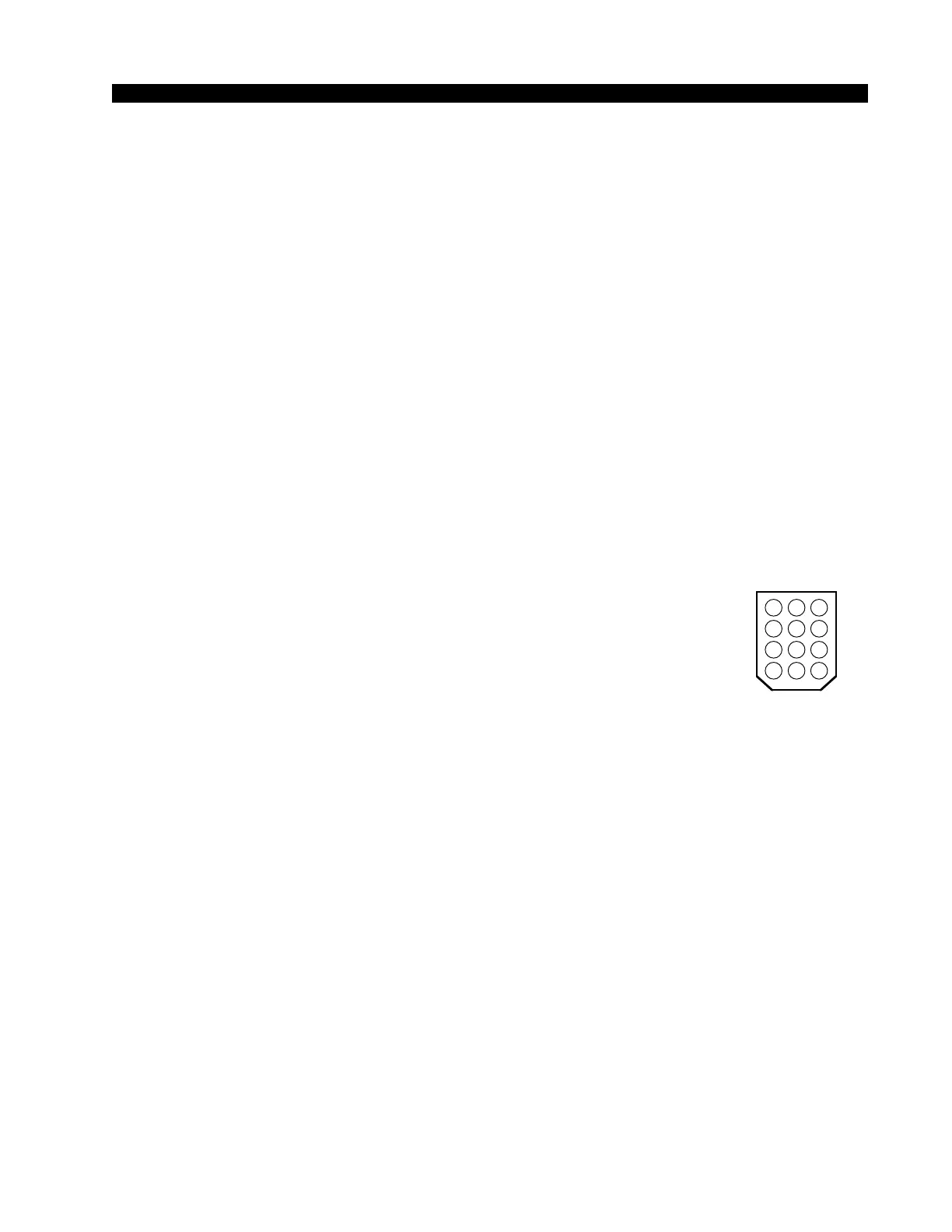

Key diagram showing
back of typical 12-pin I/O
connector plug, with pin
numbers oriented as they
would be seen while wir-
ing. Beveled corners cor-
respond to PCB mounted
mating sockets.
5 46
8 79
11 1012
2 13
