page 10 – 4
RD-12 / March 99
LINE PRESELECTOR MODULE
Pin 1 – Line 7 Lt In SH
Pin 3 – Line 7 Lt In HI
Pin 2 – Line 7 Lt In LO
Pin 4 – Line 7 Rt In SH
Pin 6 – Line 7 Rt In HI
Pin 5 – Line 7 Rt In LO
LSA-5 Audio Outputs
Pin 7 – Line Lt Out SH
Pin 9 – Line Lt Out HI
Pin 8 – Line Lt Out LO AMP D connector
Pin 10 – Line Rt Out SH
Pin 12 – Line Rt Out HI
Pin 11 – Line Rt Out LO

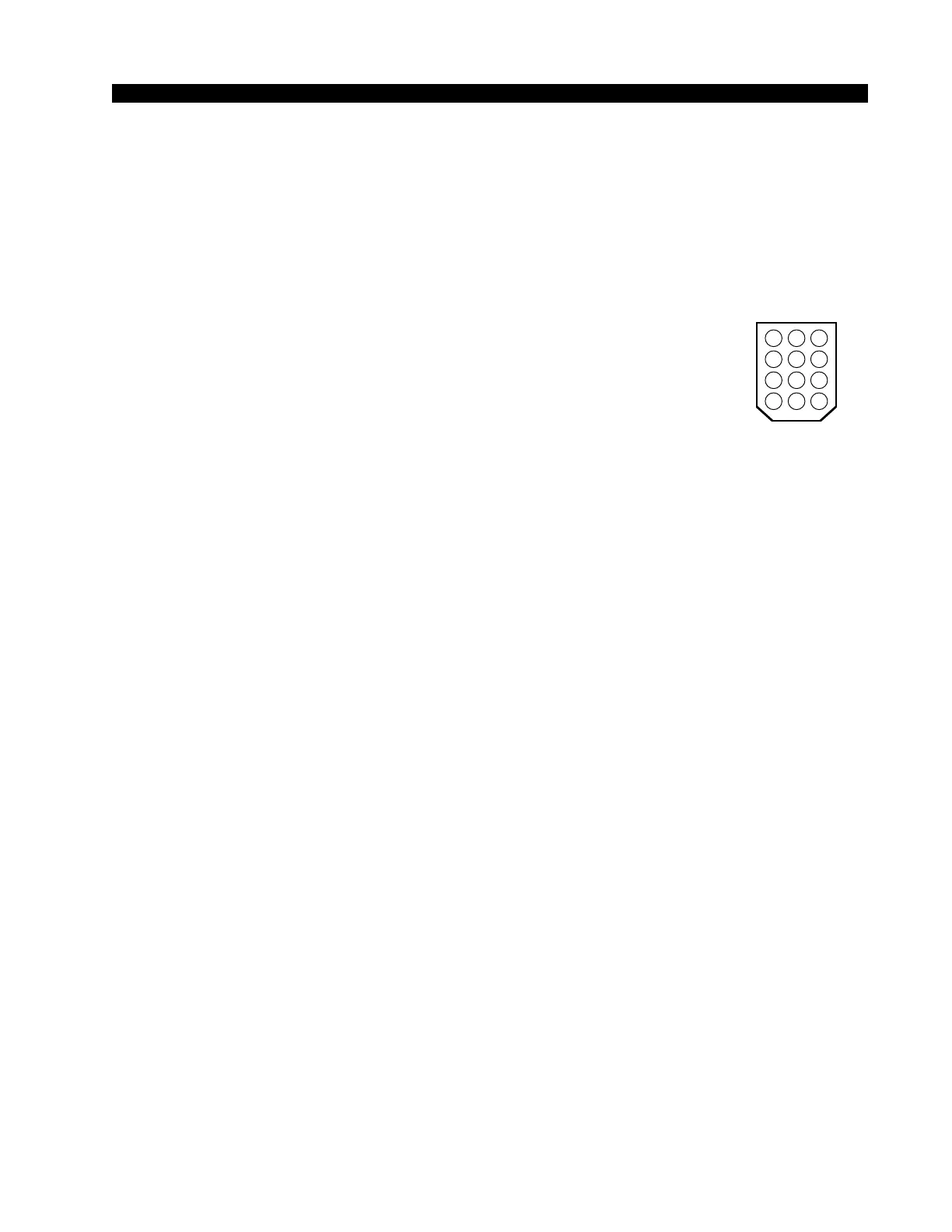

Key diagram showing
back of typical 12-pin I/O
connector plug, with pin
numbers oriented as they
would be seen while wir-
ing. Beveled corners cor-
respond to PCB mounted
mating sockets.
5 46
8 79
11 1012
2 13
