LINE PRESELECTOR MODULE
Pin 4 – AES 6 In HI
Pin 17 – AES 6 In LO
Pin 16 – AES 7 In SH
Pin 15 – AES 7 In HI
Pin 3 – AES 7 In LO
Pin 2 – AES 8 In SH
Pin 1 – AES 8 In HI
Pin 14 – AES 8 In LO
LSR-500 Audio Outputs
These are for analog stereo (+4dBu balanced) and digital (AES);
there are two DB-9 output connectors on the chassis rear:
ANALOG OUTPUTS (DB-9):
Pin 8 – Line Lt Out SH
Pin 7 – Line Lt Out HI
Pin 3 – Line Lt Out LO
Pin 2 – Line Rt Out SH
Pin 1 – Line Rt Out HI
Pin 6 – Line Rt Out LO
DIGITAL OUTPUTS (DB-9):
Pin 2 – AES Out SH
Pin 1 – AES Out HI
Pin 6 – AES Out LO

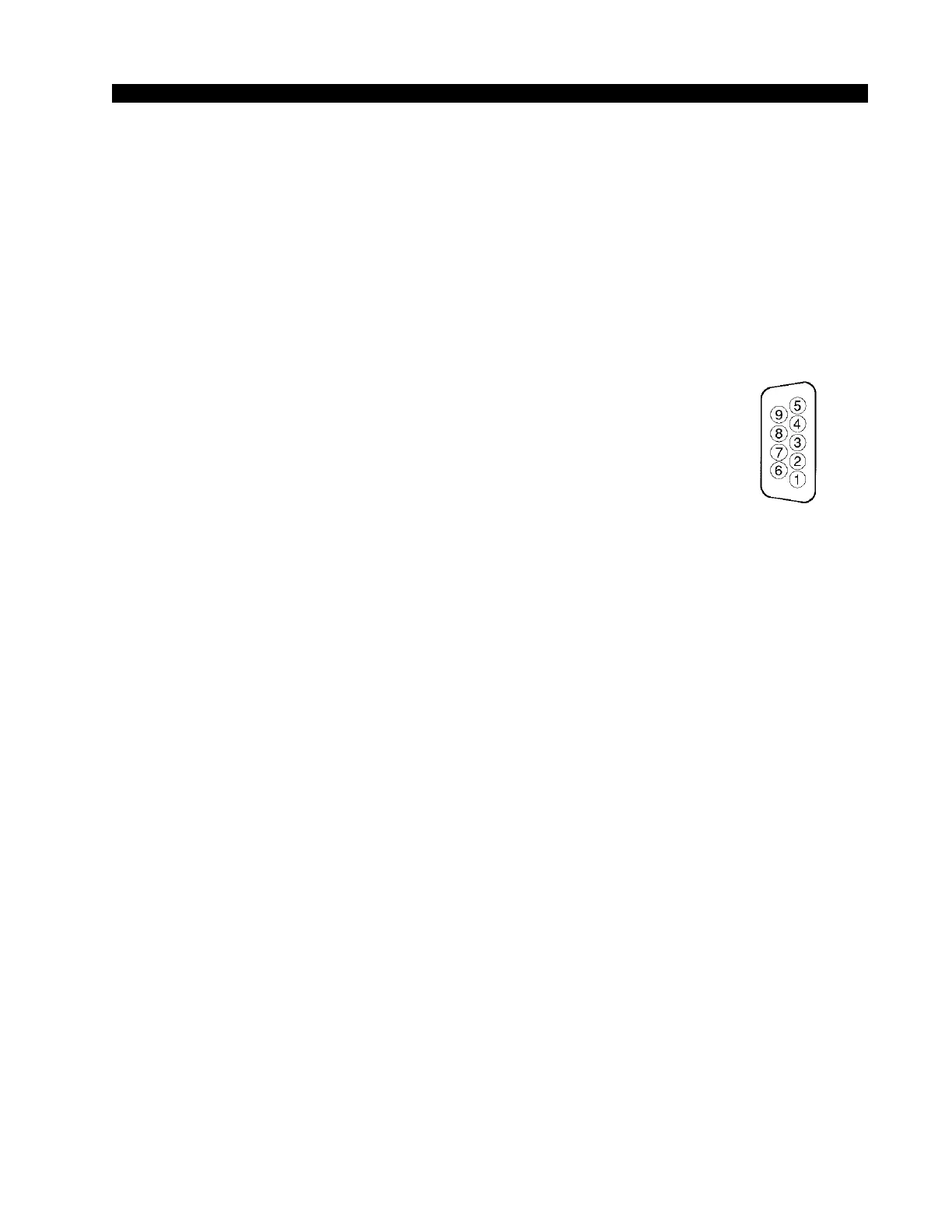

Typical DB-9
connector
