page 10 – 3
RD-12 / March 99
LINE PRESELECTOR MODULE
Hook-Ups
LS-5000 Audio Inputs 1-4 (AMP A, B)
Pin 1 – Line 1 Lt In SH
Pin 3 – Line 1 Lt In HI
Pin 2 – Line 1 Lt In LO
Pin 4 – Line 1 Rt In SH
Pin 6 – Line 1 Rt In HI
Pin 5 – Line 1 Rt In LO AMP A connector
Pin 7 – Line 2 Lt In SH
Pin 9 – Line 2 Lt In HI
Pin 8 – Line 2 Lt In LO
Pin 10 – Line 2 Rt In SH
Pin 12 – Line 2 Rt In HI
Pin 11 – Line 2 Rt In LO
Pin 1 – Line 3 Lt In SH
Pin 3 – Line 3 Lt In HI
Pin 2 – Line 3 Lt In LO
Pin 4 – Line 3 Rt In SH
Pin 6 – Line 3 Rt In HI AMP B connector
Pin 5 – Line 3 Rt In LO
Pin 7 – Line 4 Lt In SH
Pin 9 – Line 4 Lt In HI
Pin 8 – Line 4 Lt In LO
Pin 10 – Line 4 Rt In SH
Pin 12 – Line 4 Rt In HI
Pin 11 – Line 4 Rt In LO
LS-5000 Audio Inputs 5-7 (AMP C, D)
Pin 1 – Line 5 Lt In SH
Pin 3 – Line 5 Lt In HI
Pin 2 – Line 5 Lt In LO
Pin 4 – Line 5 Rt In SH
Pin 6 – Line 5 Rt In HI
Pin 5 – Line 5 Rt In LO AMP C connector
Pin 7 – Line 6 Lt In SH
Pin 9 – Line 6 Lt In HI
Pin 8 – Line 6 Lt In LO
Pin 10 – Line 6 Rt In SH
Pin 12 – Line 6 Rt In HI
Pin 11 – Line 6 Rt In LO

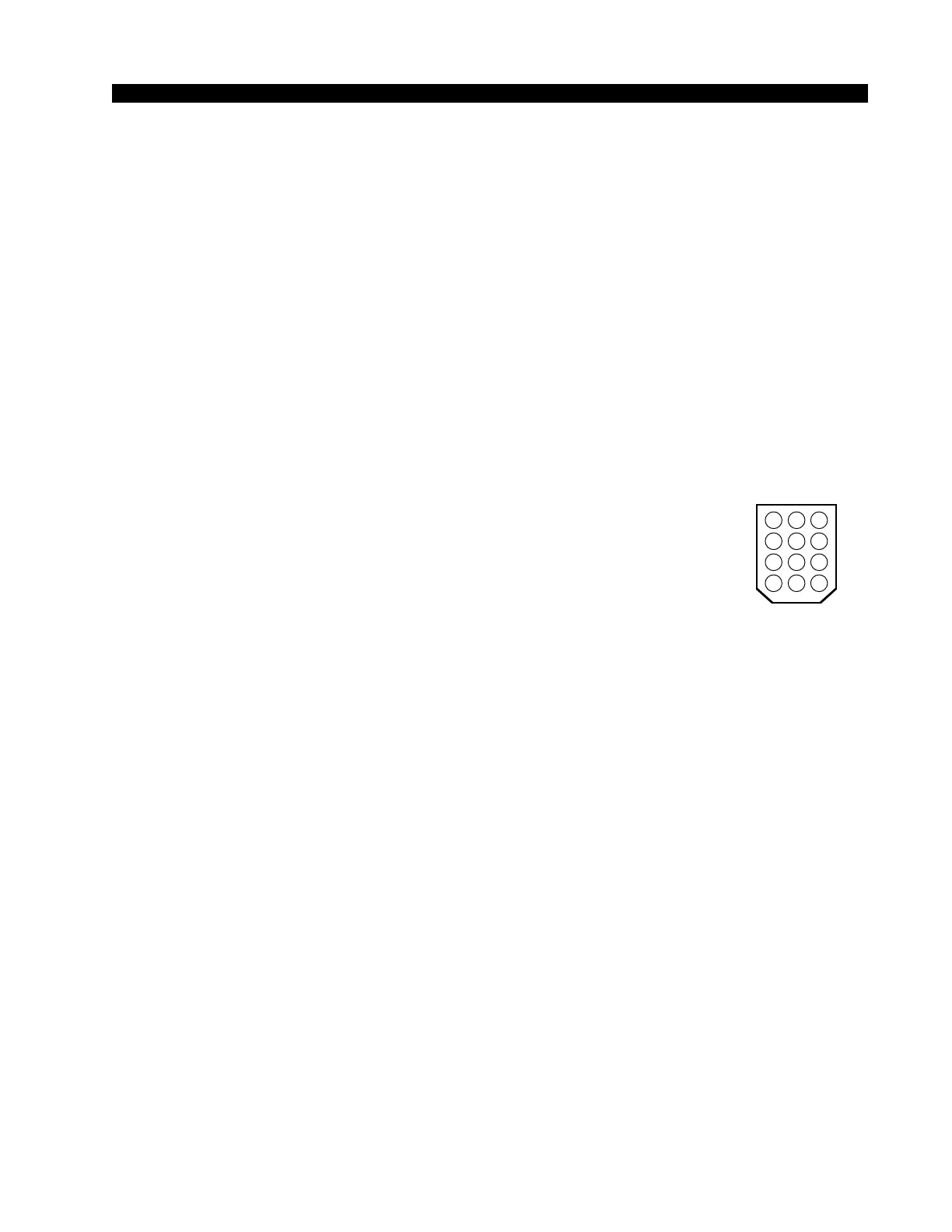

Key diagram showing
back of typical 12-pin I/O
connector plug, with pin
numbers oriented as they
would be seen while wir-
ing. Beveled corners cor-
respond to PCB mounted
mating sockets.
5 46
8 79
11 1012
2 13
