TAPE REMOTE MODULE
Pin 7 – SW5 (START) LED-
Pin 8 – SW5 (START) LED+
Pin 9 – SW4 (STOP) COM
Pin 10 – SW4 (STOP) N.O.
Pin 11 – SW4 (STOP) LED-
Pin 12 – SW4 (STOP) LED+
Pin 1 – SW3 (START) COM
Pin 2 – SW3 (START) N.O.
Pin 3 – SW3 (START) LED-
Pin 4 – SW3 (START) LED+
Pin 5 – SW2 (STOP) COM
Pin 6 – SW2 (STOP) N.O. AMP D connector
Pin 7 – SW2 (STOP) LED-
Pin 8 – SW2 (STOP) LED+
Pin 9 – SW1 (START) COM
Pin 10 – SW1 (START) N.O.
Pin 11 – SW1 (START) LED-
Pin 12 – SW1 (START) LED+

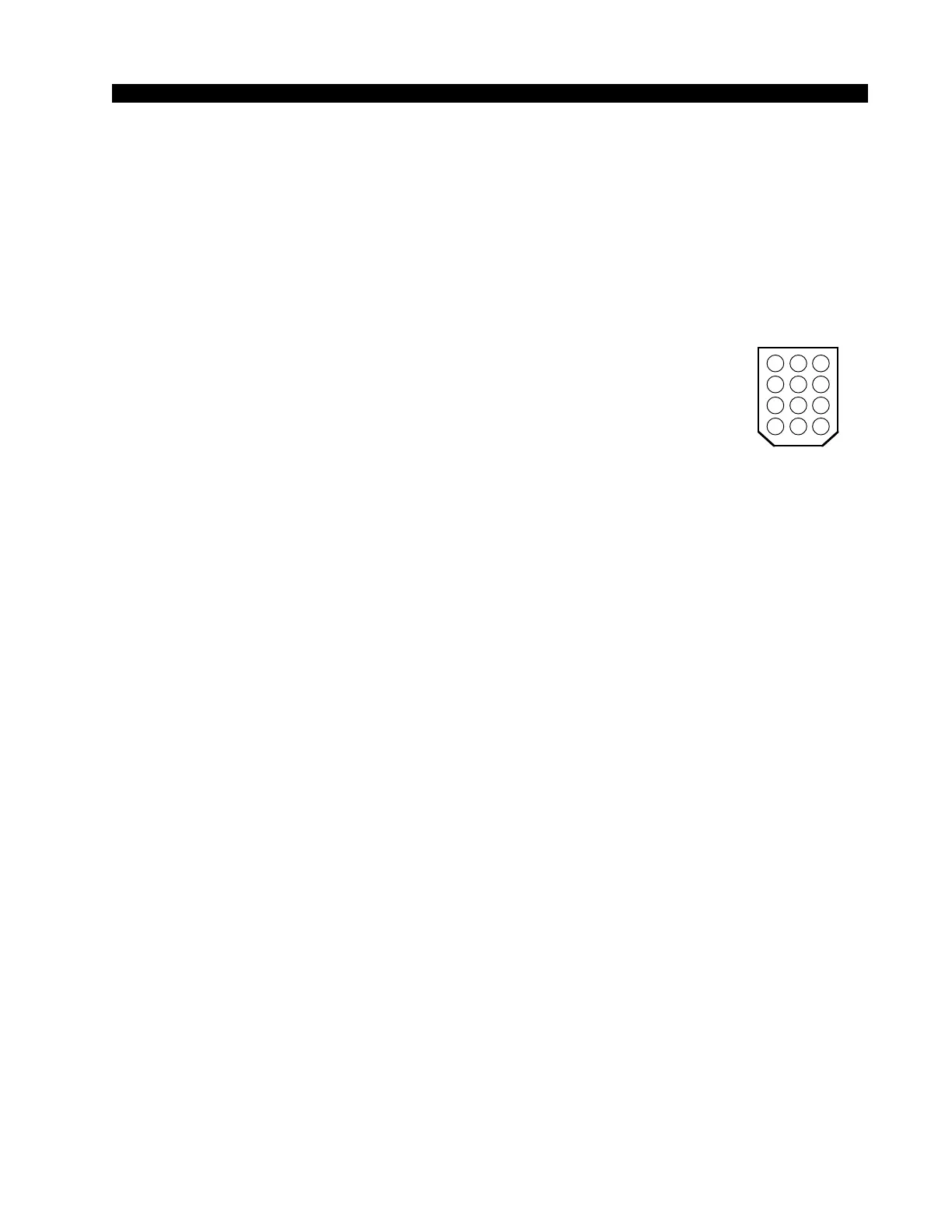

Key diagram showing
back of typical 12-pin I/O
connector plug, with pin
numbers oriented as they
would be seen while wir-
ing. Beveled corners cor-
respond to PCB mounted
mating sockets.
5 46
8 79
11 1012
2 13
