AudioCodes Mediant 1000 Installation Manual

Version 6.0 11 February 2010
Installation Manual 2. Installing the Device
2 Installing the Device
This section describes the device's hardware installation, which includes the following:
 Physical description of the device (refer to 'Installing the Device' on page 11)
 List of ship
ped items (refer to 'Unpacking Package Contents' on page 14)
 Mounting the
device (refer to 'Mounting the Device' on page 15)
 Cabli
ng the device (refer to 'Cabling the Device' on page 17)
2.1 Physical Description
This section provides a physical description of the device's front (refer to 'Front Panel' on
page 11) an
d rear panels (refer to 'Rear Panel' on page 13).
The device is designed with a 19-inch industrial platform chassis, 1U high and 13.8 inch
deep. The device supports a scalable, modular architecture providing replaceable modules.
2.1.1 Front Panel
The device's front panel is shown in the figure below and described in the subsequent
table.

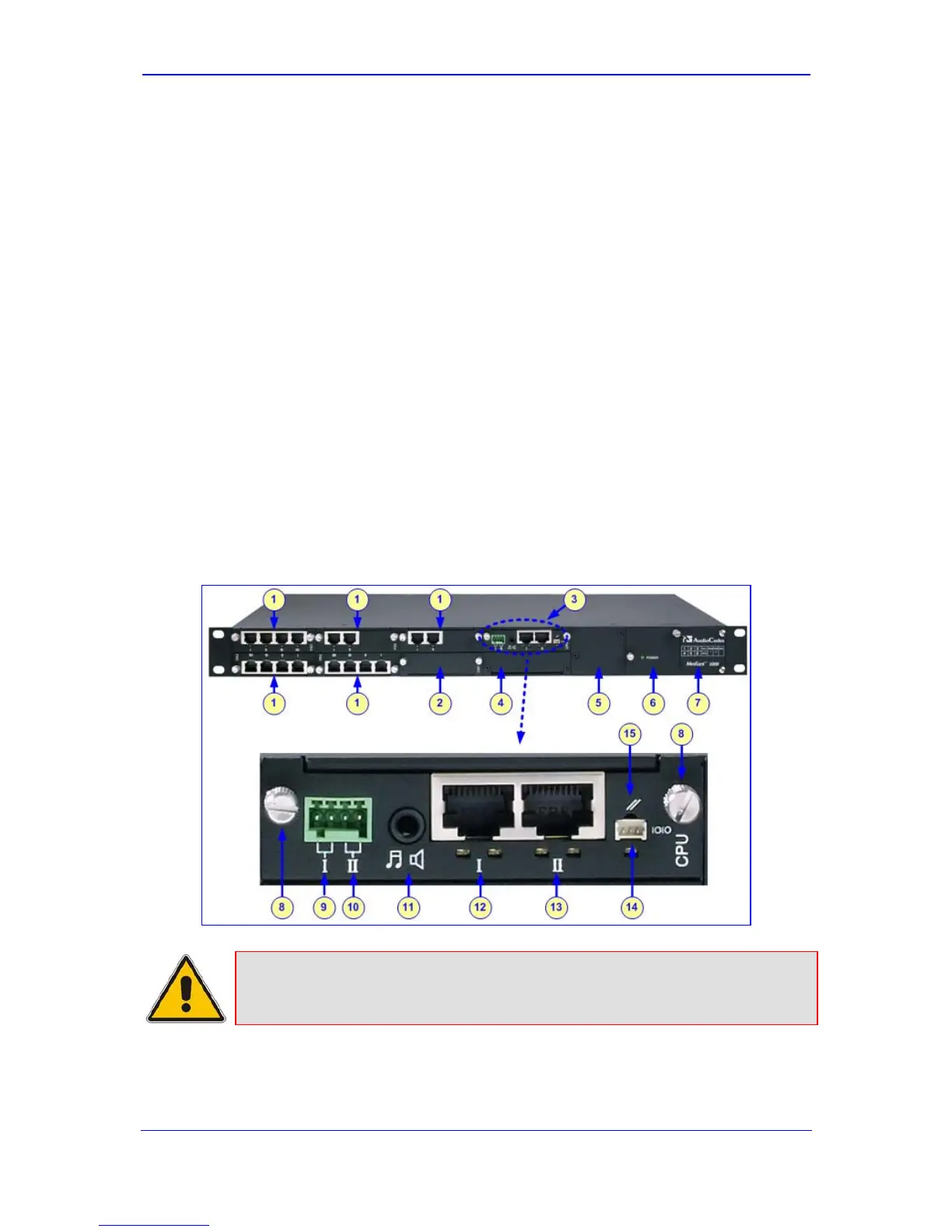

Figure 2-1: Front-Panel View and CPU Enlargement
Note: The above figure is used only as an example. The number and type of
interface modules depends on the ordered configuration.

AudioCodes Mediant 1000 Specifications

General

Data link protocols	CAS: MF-R1: T1 CAS, ISDN PRI: ETSI/EURO ISDN, ANSI NI2, QSIG
Security algorithms	HTTPS, SRTP
Authentication method	RADIUS
Internal memory	512 MB
Built-in processor	Celeron 600 MHz
Processor frequency	600 MHz
Internal memory type	-
Number of processors installed	1
Voice codecs	G.711, G.723.1, G.726, G.729A, iLBC
Safety	UL60950-1, FCC 47 CFR
Certification	ETS 300019-2-1, ETS 300019-2-2 ETS 300019-2-3
Mounting type	Rack mounting
LED indicators	Yes
Power requirements	90-260 V AC

Weight and Dimensions

Size (imperial)	19 \
